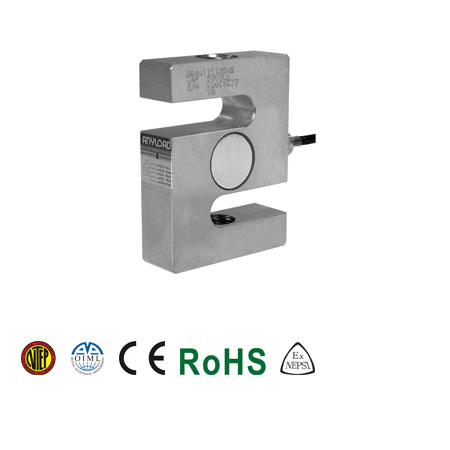

101NSGS S-Beam Load Cell
$0.00
- Material: Stainless steel
- Rated Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
- Full Scale Output: 3mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
- NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
- OIML MAA C3, Y=17 000 certified from 200kg-1.5t
- OIML MAA C4.5, Y=14 000 certified from 2t-10t
- CE, RoHS and Ex certified
- Measurement Ukraine certified
Download product PDF
Specifications
| Rated Capacity |
50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb |
| Full Scale Output |
3mV/V ± 1% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.017% |
| Repeatability |
< ± 0.017% |
| Hysteresis Error |
< ± 0.017% |
| Creep in 30 minutes |
< ± 0.023% |
| Input Resistance |
350Ω ± 7Ω |
| Output Resistance |
350Ω ± 3Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.0040% of Cn/k |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Service Temperature Range |
-30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP67 |
