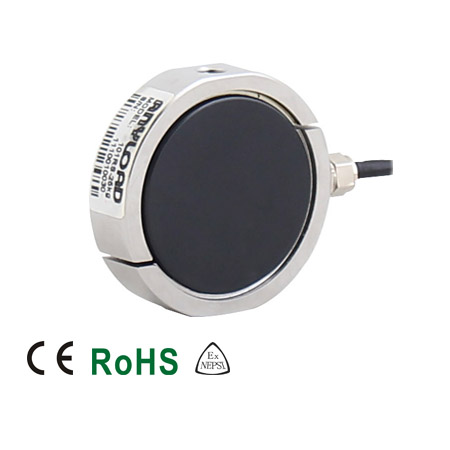

101RS Tension Load Cell
$0.00
- Material: Stainless steel
- Rated Capacities: 100N, 250N, 500N, 750N
- Full Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE, RoHS and Ex Nepsi certified
Download product PDF
Specifications
Rated Capacity |
100N, 250N, 500N, 750N |
Full Scale Output |
2mV/V ± 1% |
Zero Balance |
± 0.02mV/V |
Non-linearity |
< ± 0.050% |
Repeatability |
< ± 0.020% |
Hysteresis Error |
< ± 0.010% |
Creep in 30 minutes |
< ± 0.010% |
Input Resistance |
400Ω ± 20Ω |
Output Resistance |
350Ω ± 3Ω |
Recommended Excitation |
10V (15V Maximum) |
Insulation Resistance |
> 2GΩ (50V DC) |
Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
Safe Overload |
150% of full scale |
Breaking Overload |
300% of full scale |
Seal Type |
Environmentally sealed |
IP Rating |
IP66 |
