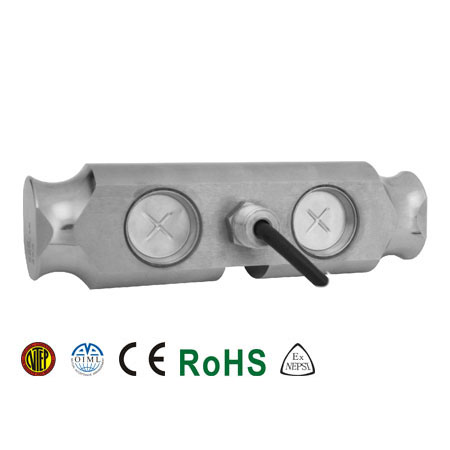

102FS Double Ended Beam Load Cell
$0.00
- Material: Stainless steel
- Rated Capacities: 50Klb, 75Klb
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 50Klb-75Klb
- OIML MAA C4.5, Y=18 000 certified from 11t-55t
- CE, RoHS and Ex certified
Download product PDF
Specifications
| Rated Capacity |
50Klb, 75Klb |
| Full Scale Output |
2mV/V ± 0.25% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.030% |
| Repeatability |
< ± 0.017% |
| Hysteresis Error |
< ± 0.023% |
| Creep in 30 minutes |
< ± 0.023% |
| Input Resistance |
700Ω ± 10Ω |
| Output Resistance |
700Ω ± 5Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.0040% of Cn/k |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Service Temperature Range |
–30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Welded seal |
| IP Rating |
IP68 |
