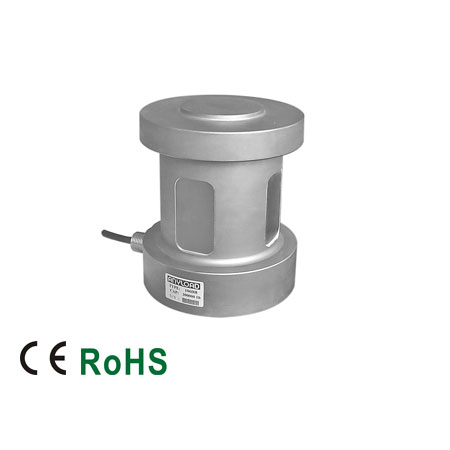

106DH Canister Load Cell
$0.00
- Material: Alloy steel
- Rated Capacities: 50Klb, 100Klb, 200Klb, 300Klb, 500Klb, 750Klb, 1000Klb
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE and RoHS certified
- Measurement Ukraine certified
Download product PDF
Features
Coti Global………………………………………………….CG-94
Vishay Sensortronics …………………………………….65094
Specifications
| Rated Capacity |
50Klb, 100Klb, 200Klb, 300Klb, 500Klb, 750Klb, 1000Klb |
| Full Scale Output |
2mV/V ± 0.25% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.01 % |
| Repeatability |
< ± 0.030% |
| Hysteresis Error |
< ± 0.050% |
| Creep in 30 minutes |
< ± 0.030% |
| Input Resistance |
450Ω ± 20Ω |
| Output Resistance |
350Ω ± 3Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.0040% of Cn/k |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Service Temperature Range |
-30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP67 |
