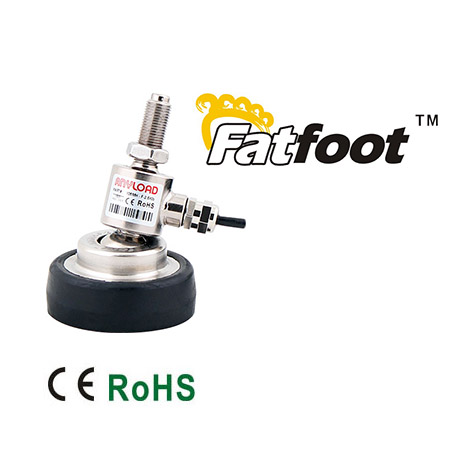

106MH-F FatFoot Load Cell with Fixed Cable

$0.00

  • Material: Alloy steel
  • Rated Capacities: 500kg, 1t, 2t, 1Klb, 2.5Klb
  • Full Scale Output: 2.0mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • CE and RoHS certified
  • Multiple patents, innovative design
  • User friendly, professional training not required
  • Compact structure saves more space than traditional weigh modules
  • Cable (6m) is fixed to load cell
Download product PDF
Categories: ,

Specifications

Rated Capacity 500kg, 1t, 2t, 1Klb, 2.5Klb
Full Scale Output 2.0mV/V ± 0.25%
Zero Balance ± 0.04mV/V
Non-linearity < ± 0.050%
Repeatability < ± 0.030%
Hysteresis Error < ± 0.050%
Creep in 30 minutes < ± 0.030%
Input Resistance 380Ω ±20Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range –10°C to 50°C/14°F to 122°F
Service Temperature Range –30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP67
