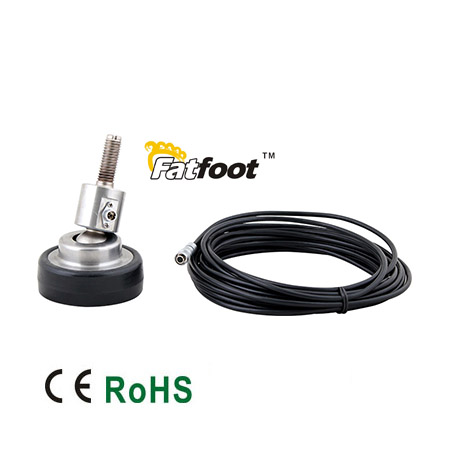

106MH FatFoot Load Cell with Detachable Cable
$
0.00
Material: Alloy steel
Rated Capacities: 500kg, 1t, 2t
Full Scale Output: 2.0mV/V ± 0.25%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP67
CE and RoHS certified
Multiple patents, innovative design
User friendly, professional training not required
Compact structure saves a lot of space as compared to a traditional weigh module
Download product PDF
106MH FatFoot Load Cell with Detachable Cable quantity
Add to cart
Categories:
AnyLoad
,
Load Foot
Specifications
Specifications
Rated Capacity
500kg, 1t, 2t
Full Scale Output
2.0mV/V ± 0.25%
Zero Balance
± 0.02mV/V
Non-linearity
< ± 0.050%
Repeatability
< ± 0.030%
Hysteresis Error
< ± 0.050%
Creep in 30 minutes
< ± 0.030%
Input Resistance
380Ω ±20Ω
Output Resistance
350Ω ± 3Ω
Recommended Excitation
10V (15V Maximum)
Insulation Resistance
> 2GΩ (50V DC)
Temperature Effect on Sensitivity
< ±0.0012% of Cn/k
Temperature Effect on Zero Balance
< ± 0.0040% of Cn/k
Compensated Temperature Range
–
10°C to 50°C/14°F to 122°F
Service Temperature Range
–
30°C to 70°C/-20°F to 160°F
Storage Temperature Range
-50°C to 85°C/-58°F to 185°F
Safe Overload
150% of full scale
Breaking Overload
300% of full scale
Seal Type
Welded seal
IP Rating
IP67
