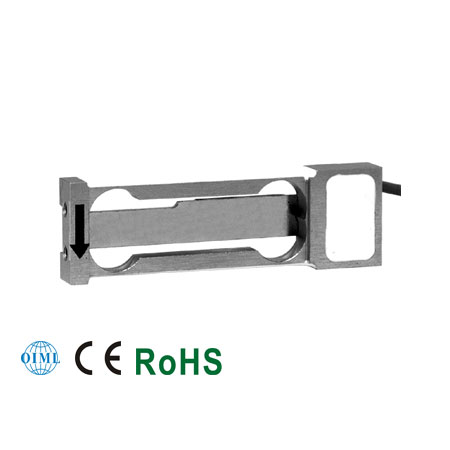

108AA Single Point Load Cell
$0.00
- Material: Aluminum
- Rated Capacities: 100g, 200g, 300g, 500g, 1kg, 2kg, 3kg, 5kg
- Full Scale Output: 1mV/V ± 20% or 2mV/V ± 20%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- OIML C3 certified from 1kg-5kg
- CE and RoHs certified
Download product PDF
Specifications
| Rated Capacity |
100g, 200g, 300g, 500g |
| Reference Max. Platform Size |
200mm x 200mm |
| Full Scale Output |
1mV/V ± 20% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.023% |
| Repeatability |
< ± 0.023% |
| Hysteresis Error |
< ± 0.023% |
| Creep in 30 minutes |
< ± 0.050% |
| Input Resistance |
415Ω ± 15Ω |
| Output Resistance |
350Ω ± 3Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.0017% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.0120% of Cn/k |
| Nominal Temperature Range |
–10°C to 40°C/14°F to 104°F |
| Service Temperature Range |
–18°C to 65°C/0°F to 149°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP66 |
