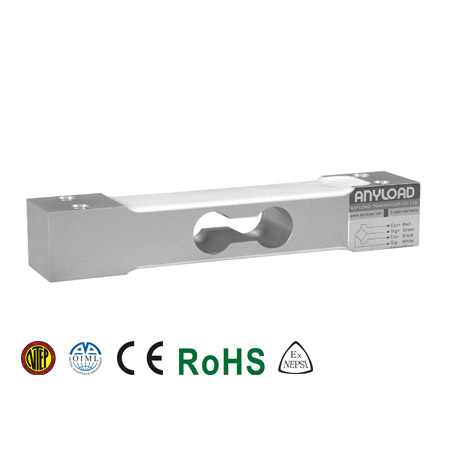

108BA Single Point Load Cell
$0.00
- Material: Aluminum
- Rated Capacities: 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- OIML C3, Y=4 300 certified from 10kg-150kg
- CE, RoHS, NTEP, and Ex certified
Download product PDF
Features
Coti Global………………………………………………….CG-22
Mettler-Toledo …………………………………………..MT1022
HBM…………………………………………………………PW6C*
HBM………………………………………………………….PW6K
Rice Lake……………………………………………….RL1521A
Vishay Celtron …………………………………LPS ME 6-35kg
Vishay Tedea-Huntleigh……………………………………1022
Specifications
Rated Capacity |
3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg |
Reference Max. Platform Size |
400mm x 400mm |
Full Scale Output |
2mV/V ± 10% |
Zero Balance |
±0.02mV/V |
Non-linearity |
< ± 0.017% |
Repeatability |
< ± 0.017% |
Hysteresis Error |
< ± 0.017% |
Creep in 30 minutes |
< ± 0.023% |
Input Resistance |
415Ω ± 15Ω |
Output Resistance |
350Ω ± 3Ω |
Recommended Excitation |
10V (15V Maximum) |
Insulation Resistance |
> 2GΩ (50V DC) |
Temperature Effect on Sensitivity |
< ±0.0012% of Cn/k |
Temperature Effect on Zero Balance |
< ± 0.0040% of Cn/k |
Nominal Temperature Range |
–10°C to 40°C/14°F to 104°F |
Service Temperature Range |
–18°C to 65°C/0°F to 149°F |
Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
Safe Overload |
150% of full scale |
Breaking Overload |
300% of full scale |
Seal Type |
Environmentally sealed |
IP Rating |
IP66 |
