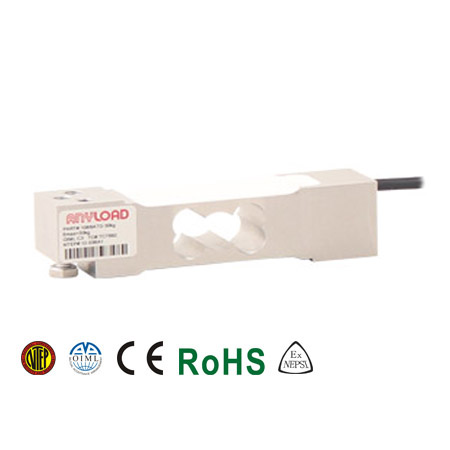

108BATD Single Point Load Cell
$0.00
- Material: Aluminum
- Rated Capacities: 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 100kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- OIML MAA C4, Y=15 000 certified for 5kg-30kg
- OIML MAA C5, Y=12 300 certified for 50kg-100kg
- CE, RoHS, NTEP, and Ex certified
Download product PDF
Features
Vishay Tedea-Huntleigh……………………………………1030
Specifications
| Rated Capacity |
3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 100kg |
| Reference Max. Platform Size |
350mm x 350mm |
| Full Scale Output |
2mV/V ± 10% |
| Zero Balance |
±0.02mV/V |
| Non-linearity |
< ± 0.017% |
| Repeatability |
< ± 0.017% |
| Hysteresis Error |
< ± 0.017% |
| Creep in 30 minutes |
< ± 0.023% |
| Input Resistance |
415Ω ± 15Ω |
| Output Resistance |
350Ω ± 3Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Nominal Temperature Range |
–10°C to 40°C/14°F to 104°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP66 |
