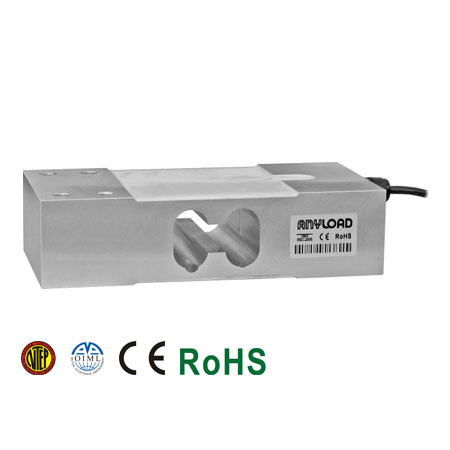

108JA Single Point Load Cell
$0.00
- Material: Aluminum
- Rated Capacities: 20kg, 50kg, 60kg, LE60kg, 75kg, 100kg, LE100kg, 150kg, SE150kg, 200kg, SE200kg, 300kg, SE300kg, 400kg, SE400kg, 500kg, SE600kg, 750kg, 1t, 1.5t, 2t
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- NTEP 1:4 000 Class III, Single Cell certified from 200kg-2t
- OIML C3, Y=4 300 certified from 50kg-400kg
- OIMLMAA C4, Y=4 000 certified from 500kg-2t
- CE and RoHS certified
Download product PDF
Features
108JA-LE60kg ……………………………………..108LA-60kg
108JA-LE100kg…………………………………..108LA-100kg
108JA-SE150kg ………………………………….108LA-150kg
108JA-SE200kg ………………………………….108LA-200kg
108JA-SE300kg ………………………………….108LA-300kg
108JA-50kg ………………………………………..651JS-50kg*
108JA-75kg ………………………………………..651JS-75kg*
108JA-LE75kg …………………………………….651JS-75kg*
108JA-SE200kg …………………………………651JS-200kg*
108JA-SE400kg …………………………………651JS-400kg*
Specifications
Rated Capacity |
20kg, 50kg, 60kg, LE60Kg, 75kg, 100kg, LE100kg, 150kg, SE150kg, 200kg, SE200kg, 300kg, SE300kg, 400kg, SE400kg, 500kg, SE600kg, 750kg, 1t, 1.5t, 2t |
Reference Max. Platform Size ≤ 100kg |
460mm x 600mm |
Reference Max. Platform Size (150-400)kg |
600mm x 600mm |
Reference Max. Platform Size ≥ 500kg |
900mm x 900mm |
Full Scale Output |
2mV/V ± 10% |
Zero Balance |
± 0.02mV/V |
Non-linearity |
< ± 0.017% |
Repeatability |
< ± 0.017% |
Hysteresis Error |
< ± 0.017% |
Creep in 30 minutes |
< ± 0.017% |
Input Resistance |
415Ω ± 15Ω |
Output Resistance |
350Ω ± 3Ω |
Recommended Excitation |
10V (15V Maximum) |
Insulation Resistance |
> 2GΩ (50V DC) |
Temperature Effect on Sensitivity |
< ±0.0012% of Cn/k |
Temperature Effect on Zero Balance |
< ± 0.0023% of Cn/k |
Nominal Temperature Range |
–10°C to 40°C/14°F to 122°F |
Service Temperature Range |
–18°C to 65°C/0°F to 149°F |
Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
Safe Overload |
150% of full scale |
Breaking Overload |
300% of full scale |
Seal Type |
Environmentally sealed |
IP Rating |
IP66 |
