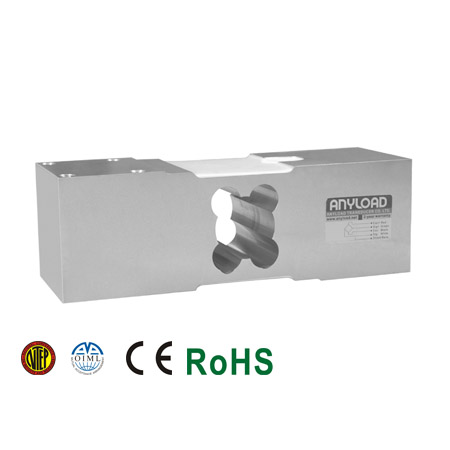

108MA Single Point Load Cell

$0.00

  • Material: Aluminum
  • Thread: Metric
  • Rated Capacities: 50kg, 75kg,100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • NTEP 1:4000 Class III, Single Cell certified from 200kg-2t
  • OIML C3 certified from 50kg-500kg
  • CE and RoHS certified
Download product PDF
Categories: ,

Features

Mettler-Toledo……………………………………………MT1260

Coti Global……………………………………………….CG-50-1
HBM…………………………………………………………..PW16
Rice Lake………………………………………………….RL1260
Vishay Tedea-Huntleigh ……………………………………1260
50kg-500kg: NTEP 1:5 000 Class III, Single Cell;
635kg-660kg: NTEP 1:4 000 Class III, Single Cell
50kg-500kg: OIML MAA C5, Y=12 300;
635kg-660kg: OIML MAA C4, Y=4 000

Specifications

Rated Capacity 50kg, 75kg,100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg
Reference Max. Platform Size 610mm x 700mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.017%
Input Resistance 415Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0023% of Cn/k
Nominal Temperature Range –10°C to 40°C/14°F to 104°F
Service Temperature Range –18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66
