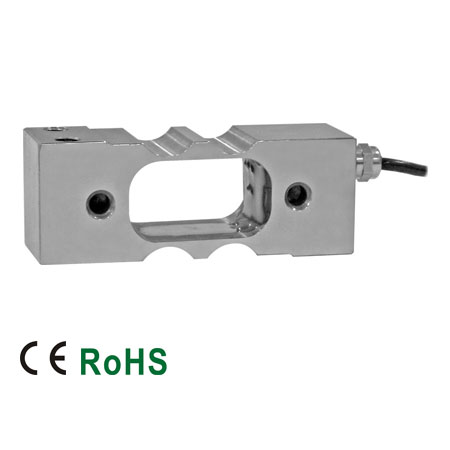

108QS Single Point Load Cell

$0.00

  • Material: Stainless steel
  • Rated Capacities: 6lb, 10lb, 15lb, 25lb, 50lb, 100lb, 200lb, 500lb, 1Klb
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • CE and RoHS certified
Download product PDF
Categories: ,

Features

Cardinal………………………………………………SP 6-100lb*
Cardinal ……………………………………SP 200, 500, 1000lb
Coti Global………………………………….CG-SPL/CG-SPLM
* SP 6-100lb is of aluminum construction

Specifications

Rated Capacity 6lb, 10lb, 15lb, 25lb, 50lb, 100lb, 200lb, 500lb, 1Klb
Reference Max. Platform Size ≤ 100lb 400mm x 450mm
Reference Max. Platform Size 200lb 500mm x 550mm
Reference Max. Platform Size ≥ 500lb 650mm x 700mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 385Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Nominal Temperature Range –10°C to 40°C/14°F to 104°F
Service Temperature Range –18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66
