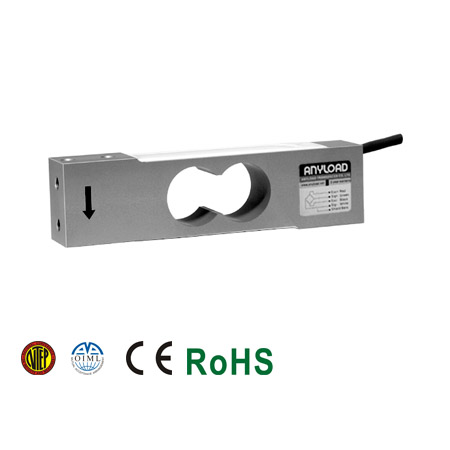

108TA Single Point Load Cell
$0.00
- Material: Aluminum
- Thread: Metric
- Rated Capacities: 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- NTEP 1:5 000 Class III, Single Cell certified from 15kg-150kg
- OIML C3 certified from 1kg-200kg
- CE and RoHS
Download product PDF
Features
Flintec…………………………………………PC42 (20-150kg)*
Vishay Revere Transducers………………………………642C
Vishay Tedea-Huntleigh……………….1042(metric threads)
Cardinal…………………………………………………………TSP
Coti Global………………………………………………….CG-42
HBM …………………………………………………………….SP4
Rice Lake………………………………………………….RL1042
Rice Lake…………………………………………………..RLSP4
Vishay Revere Transducers ………………………………..642
Vishay Tedea-Huntleigh…………….1042(imperial threads)
Specifications
| Rated Capacity |
3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg |
| Reference Max. Platform Size |
400mm x 450mm |
| Full Scale Output |
2mV/V ± 10% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.017% |
| Repeatability |
< ± 0.017% |
| Hysteresis Error |
< ± 0.017% |
| Creep in 30 minutes |
< ± 0.023% |
| Input Resistance |
415Ω ± 15Ω |
| Output Resistance |
350Ω ± 3Ω |
| Recommended Excitation (DC/AC) |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.0040% of Cn/k |
| Nominal Temperature Range |
–10°C to 40°C/14°F to 104°F |
| Service Temperature Range |
–18°C to 65°C/0°F to 149°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP66 |
