Home / Load Cells / Search By Type of Load Cell / Single Point / 108TSUN Single Point Load Cell

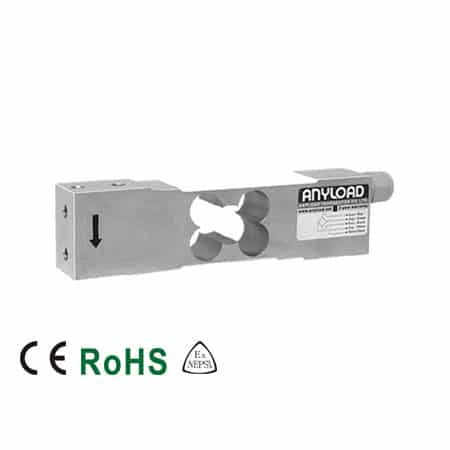

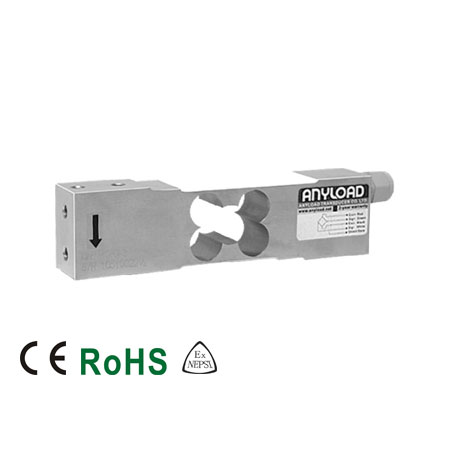

108TSUN Single Point Load Cell $ 0.00
Material: Stainless steel
Thread: Imperial
Rated Capacities: 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
Full Scale Output: 2mV/V ± 10%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP66
CE and RoHS certified
Download product PDF
Features
INTERCHANGEABLE PRODUCTS
Cardinal……………………………………………………..TSSP*
FLINTEC………………………………………..PC1 (30-100kg)
HBM…………………………………………………………PW15A
Vishay Tedea-Huntleigh……………………………………1142
HBM…………………………………………………………..PW15
Rice Lake………………………………………………….RL1140
Rice Lake……………………………………………….RL1385**
Vishay Tedea-Huntleigh ……………………………………1140
* The mounting hole TSSP is of M10
** RL1385 comes with 3 mounting holes, 108TSUN comes with 2
mounting holes which match the outer 2 mounting holes of RL1385
Specifications
108TSUN Single Point Load Cell
Material: Stainless steel
Thread: Imperial
Rated Capacities: 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
Full Scale Output: 2mV/V ± 10%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP66
CE and RoHS certified
Rated Capacity
5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
Reference Max. Platform Size
450mm x 500mm
Full Scale Output
2mV/V ± 10%
Zero Balance
± 0.02mV/V
Non-linearity
< ± 0.017%
Repeatability
< ± 0.017%
Hysteresis Error
< ± 0.017%
Creep in 30 minutes
< ± 0.023%
Input Resistance
385Ω ± 15Ω
Output Resistance
350Ω ± 3Ω
Recommended Excitation
10V (15V Maximum)
Insulation Resistance
> 2GΩ (50V DC)
Temperature Effect on Sensitivity
< ±0.0012% of Cn/k
Temperature Effect on Zero Balance
< ± 0.0040% of Cn/k
Nominal Temperature Range
– 10°C to 40°C/14°F to 104°F
Service Temperature Range
– 18°C to 65°C/0°F to 149°F
Storage Temperature Range
-50°C to 85°C/-58°F to 185°F
Safe Overload
150% of full scale
Breaking Overload
300% of full scale
Seal Type
Environmentally sealed
IP Rating
IP66
