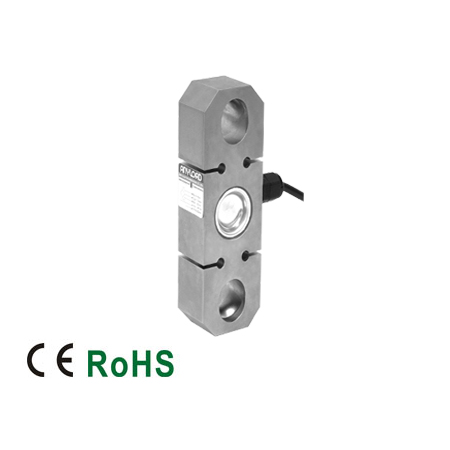

110AH Tension Link Load Cell
$0.00
- Material: Alloy steel
- Rated Capacities: 2t, 5t, 20t, 50t
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 200%
- Breaking Overload: 400%
- IP Rating: IP67
- CE and RoHS certified
Download product PDF
Specifications
Rated Capacity |
2t, 5t, 20t, 50t |
Full Scale Output |
2mV/V ± 10% |
Zero Balance |
± 0.05mV/V |
Non-linearity |
< ± 0.017% |
Repeatability |
< ± 0.017% |
Hysteresis Error |
< ± 0.017% |
Creep in 30 minutes |
< ± 0.023% |
Input Resistance |
400Ω ±20Ω |
Output Resistance |
350Ω ± 3Ω |
Recommended Excitation |
10V (15V Maximum) |
Insulation Resistance |
> 2GΩ (50V DC) |
Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
Safe Overload |
200% of full scale |
Breaking Overload |
400% of full scale |
Seal Type |
Environmentally sealed |
IP Rating |
IP67 |
