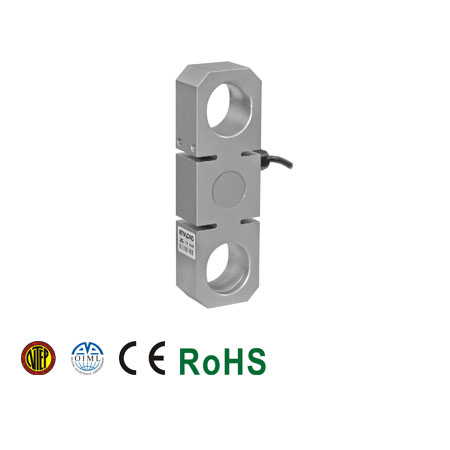

110BH Tension Link Load Cell
$0.00
- Material: Alloy steel
- Rated Capacities: 1t, 2t, 5t, 10t, 20t, 30t, 50t, 75t, 100t, 120t
- Full Scale Output: 3mV/V ± 10%
- Safe Overload: 200% of full scale
- Breaking Overload: 400% of full scale
- IP Rating: IP67
- NTEP 1:3000 Class III, Single Cell certified from 1t-2t
- NTEP 1:5000 Class III, Multiple Cell certified from 1t-2t
- NTEP 1:3000, up to 1:6000 Class III, Multiple Cell and Single Cell certified from 5t-50t
- OIML MAA C3, Y=15 000 certified from 1t-10t
- OIML MAA C3, up to C6, Y=13 5000 certified from 10t-50t
- CE and RoHS certified
Download product PDF
Specifications
| Rated Capacity |
1t, 2t, 5t, 10t, 20t, 30t, 50t, 75t, 100t, 120t |
| Full Scale Output |
3mV/V ± 10% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.017% |
| Repeatability |
< ± 0.017% |
| Hysteresis Error |
< ± 0.017% |
| Creep in 30 minutes |
< ± 0.023% |
| Input Resistance |
400Ω ±20Ω |
| Output Resistance |
350Ω ± 3Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.0040% of Cn/k |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Service Temperature Range |
-30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Nominal Temperature Range (°C) |
–10°C to 40°C |
| Nominal Temperature Range (°F) |
14°F to 104°F |
| Safe Overload |
200% of full scale |
| Breaking Overload |
400% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP67 |
