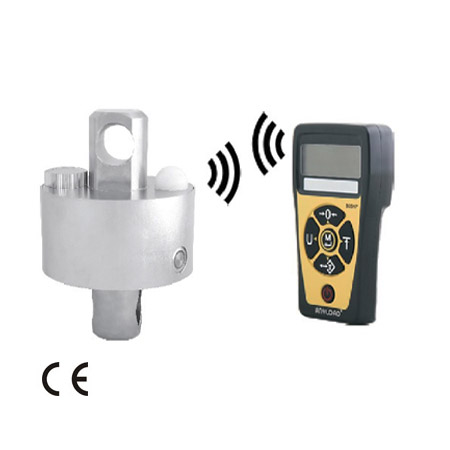

110ES-WL-HP Salt Waterproof Wireless Tension Link

$0.00

  • Enclosure Material: Stainless steel casting
  • Accuracy: 1:5000 maximum divisions
  • Capacities: 1t, 2.5t, 5t, 10t, 20t, 30t, 50t, 100t
  • Safe Overload: 200% of full scale
  • Breaking Overload: 400% of full scale
  • IP Rating: IP68/IP69K
  • Frequencies:  433 Mhz, 915 Mhz
  • Transmission range is up to 30m without obstruction
  • Salt water proof power switch with indicating light
  • Salt water proof battery cap
  • Antenna protected by silicon enclosure
  • Indicator (805HP-WL) and Shackles are sold separately
Download product PDF
Categories: ,

Specifications

Capacity 1t, 2.5t, 5t, 10t, 20t, 30t, 50t, 100t
Division 1t-10t 1:5000
Division 20t 1:4000
Division 30t 1:3000
Division 50t-100t 1:5000
Enclosure Material Stainless steel casting
Working Temperature -10°C to 40°C/14°F to 104°F
Safe Overload 200% of full scale
Breaking Overload 400% of full scale
Rechargeable battery 3 x AA Alkaline batteries
Transmission Range Up to 30m without obstruction
Operation Time Up to 100 hours on 20°C at the lowest power set up
IP Rating IP68/69K
