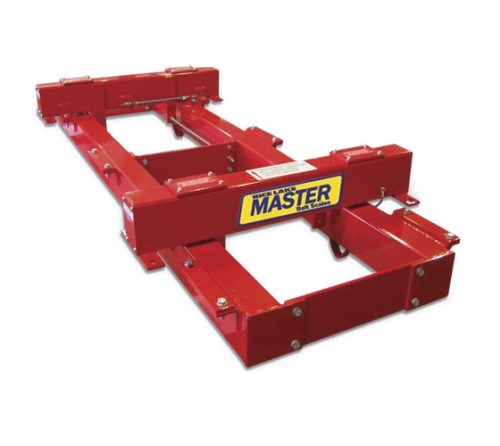

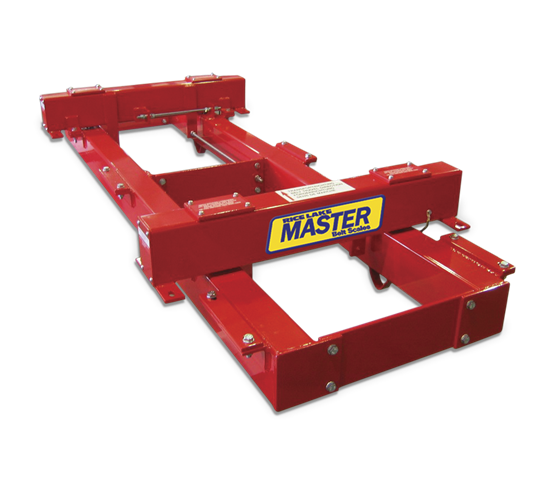

143 Master Belt Scale Weigh Frame

$0.00

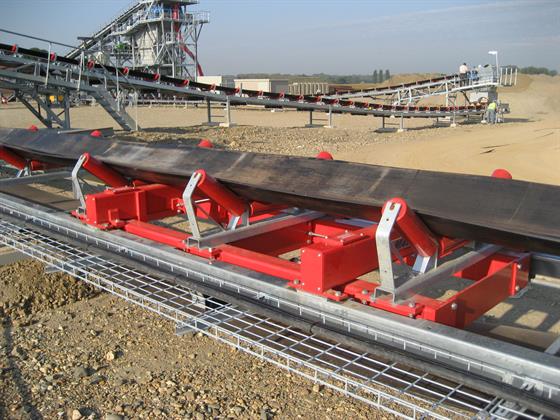

The 143 Master belt scale model weighs three idlers on an inner frame that is supported by four load cells, making it the most accurate belt scale in high-capacity, high belt speed applications.

Download product PDF
Categories: , , ,

Features

  • Custom built for each application
  • Fits standard conveyors
  • Multiple idler design
  • Inner frame free, floating platform

Specifications

Conveyor Width:
20 in to 120 in (500 mm to 3,000 mm)

Capacity:
20,000 tons per hour

Belt Speed:
1,400 feet per minute (7 m/s)

Inclination:
25 degrees

Material:
Powder coated mild steel

Accuracy Guidelines:
0.25 %

Load Cell:
RL20001 alloy steel s-beam (capacity selected from application)

Warranty:
One-year limited warranty

Options

<li304 stainless steel

<liTwo, three or four weigh idlers

<liCustom lifting weights available on request
