682 Synergy Series Weight Indicator

$0.00

The durable 682 Synergy Series indicator is constructed with 304 stainless steel and has an IP69 ingress rating to stand up to high-pressure, high temperature washdowns found in food processing and other environments.

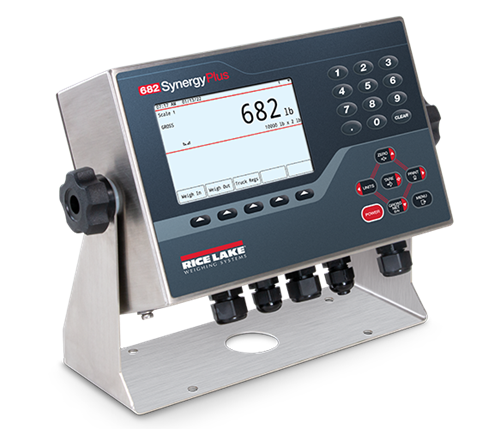

The 682 indicator has a bright five-inch color LCD screen and configurable softkeys for an interface that is easy to use.

Advanced Connectivity

The 682 indicator comes standard with advanced communications to take on a wide range of applications. Connections to external devices and networks are available through RS-232 and RS-485 serial ports, USB, Ethernet, fieldbus, Wi-Fi and Bluetooth®. This digital weight indicator also has a built-in web server for easy remote monitoring and process control.

Truck Weighing

The 682 indicator has an integrated truck in/out mode specifically designed for vehicle scale applications. This mode stores the transaction after each weigh-out with truck ID, gross, tare and net weights. Transactions may be printed or cleared at any time.

Download product PDF
Category:

Features

  • Graphical, LCD color display with configurable softkeys
  • Numeric, tactile keypad for scale operations, numeric entry and navigation
  • Multi-language operation and text entry
  • Formattable tickets
  • Battery backed time and date
  • Multiple communication ports
  • Eight setpoints, 22 configurable types
  • Fieldbus communication using Rice Lake’s SCT-2200 modules and RS-485 port
  • Built-in web server for remote access, systems integration and data monitoring
  • Built-in Truck In/Out application
  • Four onboard configurable digital I/O points, TTL logic
  • Local/remote
  • Multi-range/interval

Options

  • Analog output: 16-bit resolution, 0-10 VDC, 0-20 mA, 4-20 mA
  • Relay card
  • Dual serial card
  • RJ45 Ethernet connector

Specifications

Power:
Line voltage: 100 to 240 VAC, 50/60Hz
Optional: 9 to 36 VDCPower Consumption:
3.2W (AC) 1 × 350 ohm load cell, 15W max;
4W 4 × 350 ohm load cells or 8 × 700 ohm load cellsExcitation Voltage:
10 VDC (± 5 VDC), 8 × 350 ohm or 16 × 700 ohm load cells

Analog Signal Input Range:
-5 mV to +70 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum
1 μV/graduation recommended

A/D Sample Rate:
6.25 to 120 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 1,000,000

System Linearity:
Within 0.01% full scale

Digital I/O:
Four configurable I/O, 5V logic

 (Optional) Analog Output: 16-bit resolution, voltage output 0-10 VDC, current output 0-20 mA / 4-20 mA

(Optional) Relay Board:
4 normally open dry contact relays and can switch 20-250 VAC @ 3A  or 30 VDC @ 3A. Use of external fusing to limit current is recommended. Relay COM-NO are transient protected to 400V @ 600W

Communication Ports:
Two full-duplex RS-232
RS-485/422 (two-wire or four-wire)
Micro USB (device)
Ethernet TCP/IP (10/100)
Wi-Fi
Bluetooth®

Annunciators:
Zero, Gross/Net, Tare, Wi-Fi, Bluetooth®

Display:
Five-inch LCD, 800 × 480 pixel, 500 NIT

Keys/Buttons:
Flat membrane panel, tactile feel
18 buttons plus 5 softkeys and power

 Dimensions:
(L x W x H)
10.0 x 4.0 x 8.6 in
(254 x 102 x 218 mm)Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Industrial: 14 °F to 122 °F (-10 °C to 50 °C)Rating/Material:
IP69K (IP66 with RJ45 option)
AISI 304 Stainless Steel

Weight:
6.25 lb (2.84 kg)

Warranty:
Two-year limited

Approvals:
NTEP CC 19-021, Class III/IIIL, 10,000d
Measurement Canada AM-6121C
OIML R76 2006 A NL1 19.56R3
EU Test Certificate TC11562
CE Marked
UKCA
cULus

Options

195084 Ind Opt,Analog Output 680 Series, Install Kit
211709 Ind Opt,Relay Card 68x Series, Install Kit
211710 Ind Opt,Dual Serial Card 68x Series, Install Kit
151099 Panel,Mount Option 480/680 Indicator,Gasketed Non-NEMA Seal.
211701 Board ASSY,Replacement 682 CPU with battery and memory card installed.
194477 Parts Kit,680 Indicator
