185 Rival

$0.00

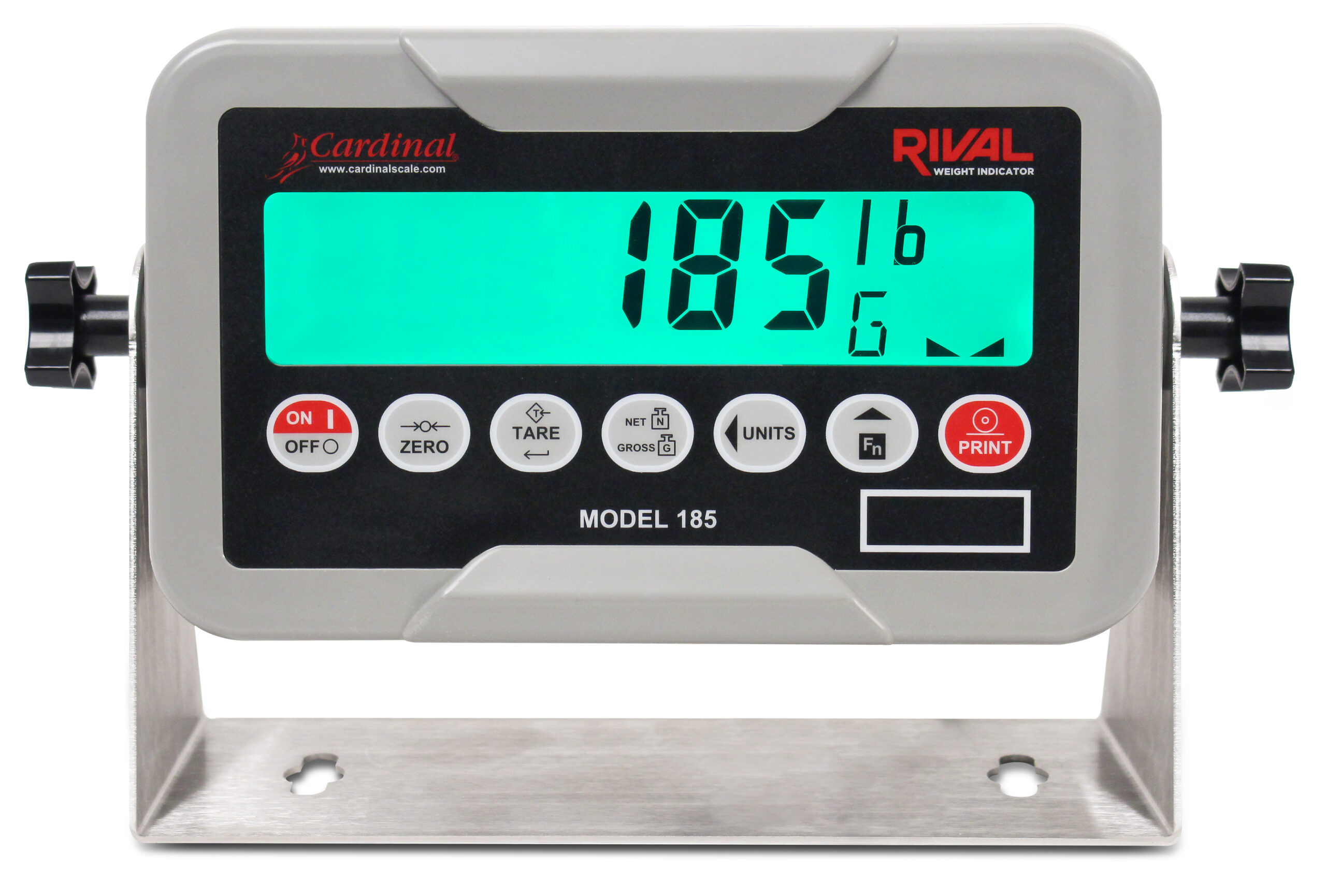

Cardinal Scale’s 185 Rival is a high-quality, economical durable weight indicator with bright-green LCD for easy viewing. The washdown IP66-rated attractive molded ABS enclosure is built for durability in harsh indoor or outdoor weighing applications. Also available with rechargeable battery power, the model 185B is powered by six standard, off-the-shelf AA Alkaline or rechargeable Ni-Cad or NiMH batteries. Internal battery circuitry automatically detects the battery type for charging.

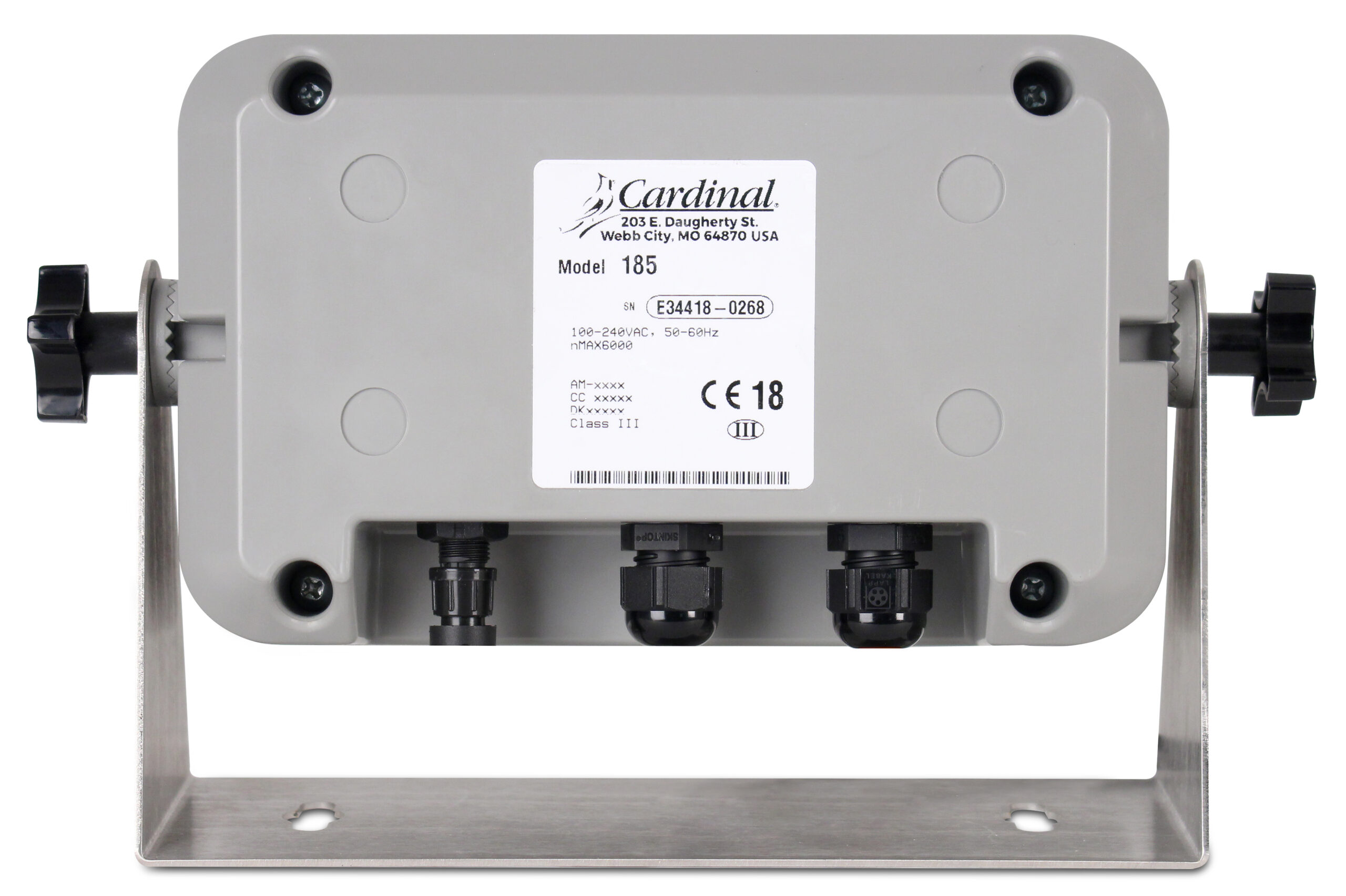

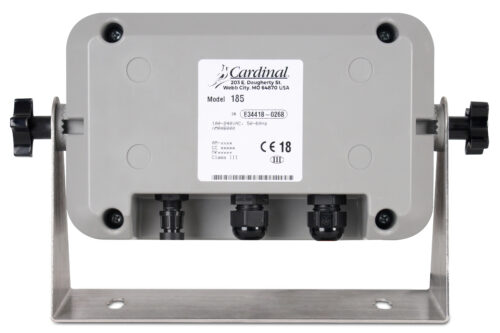

The 185 Rival may be used as a remote display for long-range viewing when connected to another weight display. The 1-in/25-mm high bold green LCD is visible from a distance. The 185 indicator comes with a versatile stainless steel swivel mounting bracket for desktop or wall-mount set up. The 185’s anti-slip mounting bracket includes rotational lock-in set points adjustable in discrete 15º increments for exact positioning of the display right where you want it. It features RS232 serial output with waterproof gland connectors for connectivity with a PC or printer. The watertight power connector meets washdown requirements.

The 185 Rival is ideal for bench scales used in commercial foodservice and general weighing applications, warehouse and distribution facility floor scales, recycling and outdoor materials weighing, and industrial vessel weighing where high visibility is beneficial. The 185 is NTEP, Measurement Canada, and OIML approved.

Applications:

  • Ideal for bench scales used in commercial foodservice and general weighing applications
  • High visibility for warehouse and distribution facility floor scales
  • Recycling and outdoor materials weighing
  • Industrial vessel weighing where high visibility is beneficial
  • NTEP, Measurement Canada, and OIML approved
Download product PDF
Category:

Features

  • High-quality, economical durable weight indicator
  • Bright-green backlit LCD for easy viewing
  • Available with rechargeable battery power
  • Washdown IP66-rated for harsh environments
  • Available in two models (185 and 185B)
  • Bold 1-inch/25-mm high backlit LCD
  • Attractive molded ABS enclosure built for durability in harsh indoor or outdoor applications
  • Stainless steel mounting bracket included
  • lb, oz, kg, and g weighing units
  • Ability to drive up to four 350Ω load cells
  • 6,000 divisions NTEP certified and Measurement Canada approved legal-for-trade weighing resolution
  • Built-in, bi-directional RS232 port for printing or connection to PC
  • Battery level indicator on model 185B
  • Piece counting mode
  • Easy-to-manage, 4-screw, 2-piece enclosure
  • Simple 7 button operation
  • Internal audit trail for NTEP and OIML requirements
  • Country of Origin: USA

Specifications

Power Requirements (185): Included 100 to 240 VAC 50/60Hz 12 VDC 1 A wall plug-in UL/CSA listed AC power adapter (Cardinal part number 8400-0182-0A). Optional 100 to 240 VAC 50/60Hz 12 VDC 1 A wall plug-in AC power adapter with International Interchangeable plug (Cardinal part number 8400-0182-1A).
Power Requirements (185B): Six “AA” Alkaline, Ni-Cad or NiMH batteries (not included) OR included 100 to 240 VAC 50/60Hz 12 VDC 1 A wall plug-in UL/CSA listed AC power adapter (Cardinal part number 8400-0182-0A). Optional 100 to 240 VAC 50/60Hz 12 VDC 1 A wall plug-in AC power adapter with International Interchangeable plug (Cardinal part number 8400-0182-1A).
Construction: IP66-rated ABS indicator enclosure with versatile stainless steel wall or desktop mounting bracket. Please note: the AC power adapters (Cardinal part number 8400-0182-0A and 8400-0182-1A) are not IP66 rated.
Operating Environment: Temperature: 14 to 104 ºF (-10 to +40 ºC), Humidity: 90% non-condensing (maximum)
Weight Display: Six-digit, seven-segment, 1.0 in (25 mm) high, backlit green LCD
Battery Life: 70-hour typical operation with full charge
Load Cell Excitation: 5.0 VDC
Signal Input Range: 0mV min. to 40mV max
Number of Load Cells: Up to 4 at 350 Ohm minimum resistance
Load Cell Cable Length: 1500 feet (450 meters) maximum with sense lines, 30 feet (9 meters) maximum without sense lines
Division Value: 1, 2 or 5 x 10, 1, 0.1, 0.01, 0.001
Sensitivity: NON-COMMERCIAL: 0.4Uv/E, NTEP: 1.2uV/e (Class III/IIIL), OIML: 1.2uV/e (Class 3)
Scale Divisions: NON-COMMERCIAL: 100 to 100,000, NTEP: 100 to 6,000 (Class III/IIIL), OIML: 100 to 6,000 (Class 3)
Internal Resolution: 1 part in 16,777,216
Tare Capacity: Scale Capacity
Sample Rate: 10 samples per second
Auto Zero Range: 0.5 or 1 through 9 divisions
Weighing Units: Pounds(lb), Ounces (oz), Kilograms (kg), Grams (g)
Keypad: 7-key Membrane type
Keys: ON/OFF, ZERO, TARE, NET/GROSS, UNITS, FN
Standard I/O: (1) bi-directional RS-232 port
Standard Features: Piece Counting, Millivolt Display Diagnostic Function
Enclosure Dimensions: 7.7”W x 4.7” H x 2.6” D (19.6 cm W x 11. 9 cm H x 6. 6 cm D)
Net Weight: Model 185: 2.3 lb (0.95 kg), Model 185B: 2.5 lb (1.04kg)
Shipping Dimensions: 13in L x 11 in W x 8 in H (33 cm L x 28 cm W x 20.3 cm H)
Shipping Weight: Model 185: 3.2 lb (1.45 kg), Model 185B: 3.4 lb (1.54 kg)
Country of Origin: USA

CERTIFICATIONS

NTEP: Certificate No. 18-075
Measurement Canada: Approval No. AM-6109
OIML: Certificate No. R-76/2006-A-DK2-18.04
EU Type-Examination: Certificate No. 0200-NAWI-03187

Options

8400-0182-0A 185 POWER SUPPLY ASSEMBLY 12V/1A, 100-240VAC INPUT Call For Pricing

Models

185 Weight Indicator, LCD, 7 Key, ABS Call For Pricing
185B Weight Indicator, LCD, 7 Key, ABS, Battery Powered Call For Pricing
185BV Weight Indicator, LCD, 7 Key, Poly Carbonate, Battery Powered,Univ Voltage/Int’l plug AC Call For Pricing
185V Weight Indicator, LCD, 7 Key, ABS, Univ Voltage/Int’l Plug AC supply Call For Pricing
