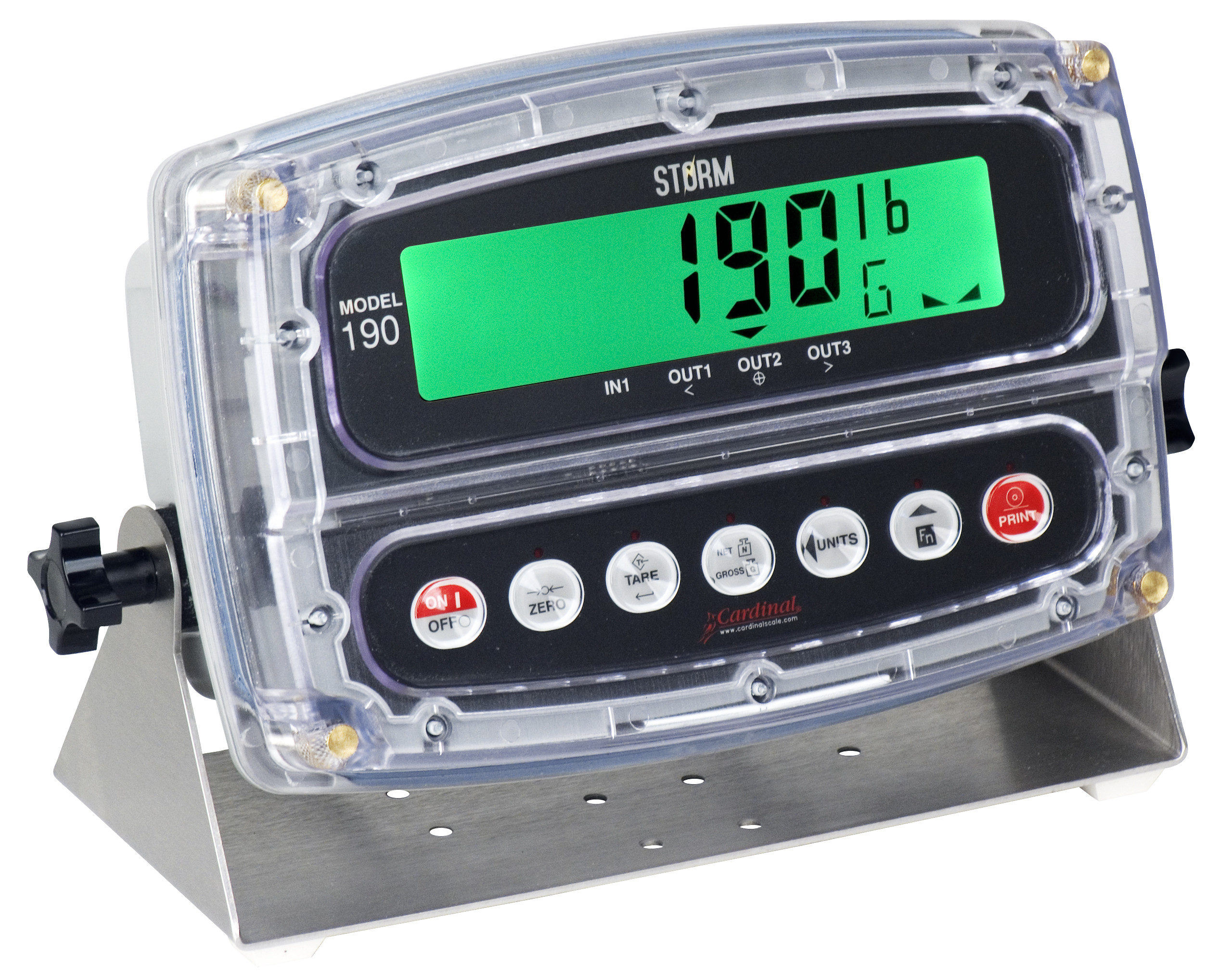

190 Storm

$0.00

Built for extreme-use applications in the weighing industry, the 190 STORM’s IP69K-rated polycarbonate enclosure withstands high-temperature (up to 176º F / 80º C), high-pressure wash downs (1450 PSI). The 190 STORM features capacitive touch keys, 1-inch-high clearly visible LCD digits, built-in RS232 communications port, and versatile power options: AC, DC, and rechargeable battery.

The 190 STORM’s bright, vivid display changes color automatically as the pre-assigned target weights are reached. The operator knows immediately when they’ve reached the acceptable weight range based on the amber, green, or red color changes for UNDER, ACCEPT, or OVER weights. NTEP, OIML, and Measurement Canada.

Download product PDF
Category:

Features

  • 1 RS232 Serial Port
  • 1-in-high LCD
  • Capacitive Touch Keys
  • ColorZONE Checkweighing
  • IP69K-Rated Washdown
  • NTEP Legal for Trade
  • OIML Certified
  • Ultra-Tough Polycarbonate Enclosure

Specifications

Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max. / 190DC: 10.5 to 30 VDC 1.0A Max.
Enclosure Type: Polycarbonate and ABS enclosure, IP69K-rated wall or desk-mount
Enclosure Size: 9.4 in W x 6.4 in H x 3.7 in D / 239 mm W x 163 mm H x 93 mm D
Display: Six digit, seven segment, 1.0 in high backlit LCD
Transducer Excitation: 5.18 VDC
Signal Input Range: 0.5 mV min. to 40 mV max. (with dead load boost)
Number of Load Cells: 6 each, 350 OHM minimum resistance
Load Cell Cable Length: 1500 feet maximum / 30 feet maximum without sense lines (Consult factory for other requirements
Division Value: 1, 2, or 5 x 10, 1, 0.1, 0.01, 0.001 commercial / 0 to 99, non-commercial
Sensitivity (NON-COMMERCIAL): 0.15 uV/e
Sensitivity (COMMERCIAL): 100 to 10,000 (Class III/IIIL/IIIHD)
Internal Resolution: 1 part in 16,777,216
Tare Capacity: Scale Capacity
Sample Rate: 1 to 100 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Weighing Units: Pounds, Ounces, Kilograms, Grams
Keypad: Color Coded Capacitive Touch type, 7 keys
Standard I/O: 1 bi-directional RS232 serial
NTEP Approval: 10-084
OIML: R76/1992-DK3-11.05
Measurement Canada: AM-5804
Enclosure IP Rating: IP69K
Operating Environment: Temperature: 14 to 104 ºF (-10 to +40 ºC) / Humidity: 90% non-condensing (maximum)
Optional Battery Charge Time: 6 hours
Optional Rechargeable Battery Continuous Operation Run Times: Running single load cell – 92 hours with NO backlight / 83 hours with BLUE backlight / 48 hours with RED backlight / 48 hours with PINK backlight / 45 hours with GREEN backlight / 41 hours with YELLOW backlight / Battery life will be extended with SLEEP and AUTO-OFF operation set

Options

190-DAC Option: 190 Analog Output Card Call For Pricing
190-IP Option: 190 Ethernet Interface Call For Pricing
190-RS232 Option: 190 Serial Card Call For Pricing
190-USB Option: 190 USB Card Call For Pricing
190-WIFI Option: 190 WiFi Card Call For Pricing
6600-0623 Modem, Short Haul Call For Pricing
8400-D010-18 Enclosure, Front, 190 Indicator, Blue Call For Pricing
BP190 Battery Pack, 190 Indicator Call For Pricing
RB8-OPTO Relay Box, 8 Sockets for Optional Relay Modules Call For Pricing
RF1 Transceiver, Wireless, Short Range, Pair Call For Pricing
S2E1 Option: Converter, Serial to Ethernet Call For Pricing
SFG1 Option: Serial, Fiber Optic Transceiver, Glass Call For Pricing
SFP1 Option: Serial, Fiber Optic Transceiver, Plastic Call For Pricing

Models

190 Weight Indicator, LCD, 7 Key, Poly Carbonate Call For Pricing
190DC Weight Indicator, LCD, 7 Key, Poly Carbonate, DC Power Call For Pricing
190LS Weight Indicator, LCD, 7 Key, Poly Carbonate, DC Power, Battery Pack, for LS scales Call For Pricing
190EU Weight Indicator, LCD, 7 Key, Poly Carbonate, DC Power, Euro Cord Call For Pricing
