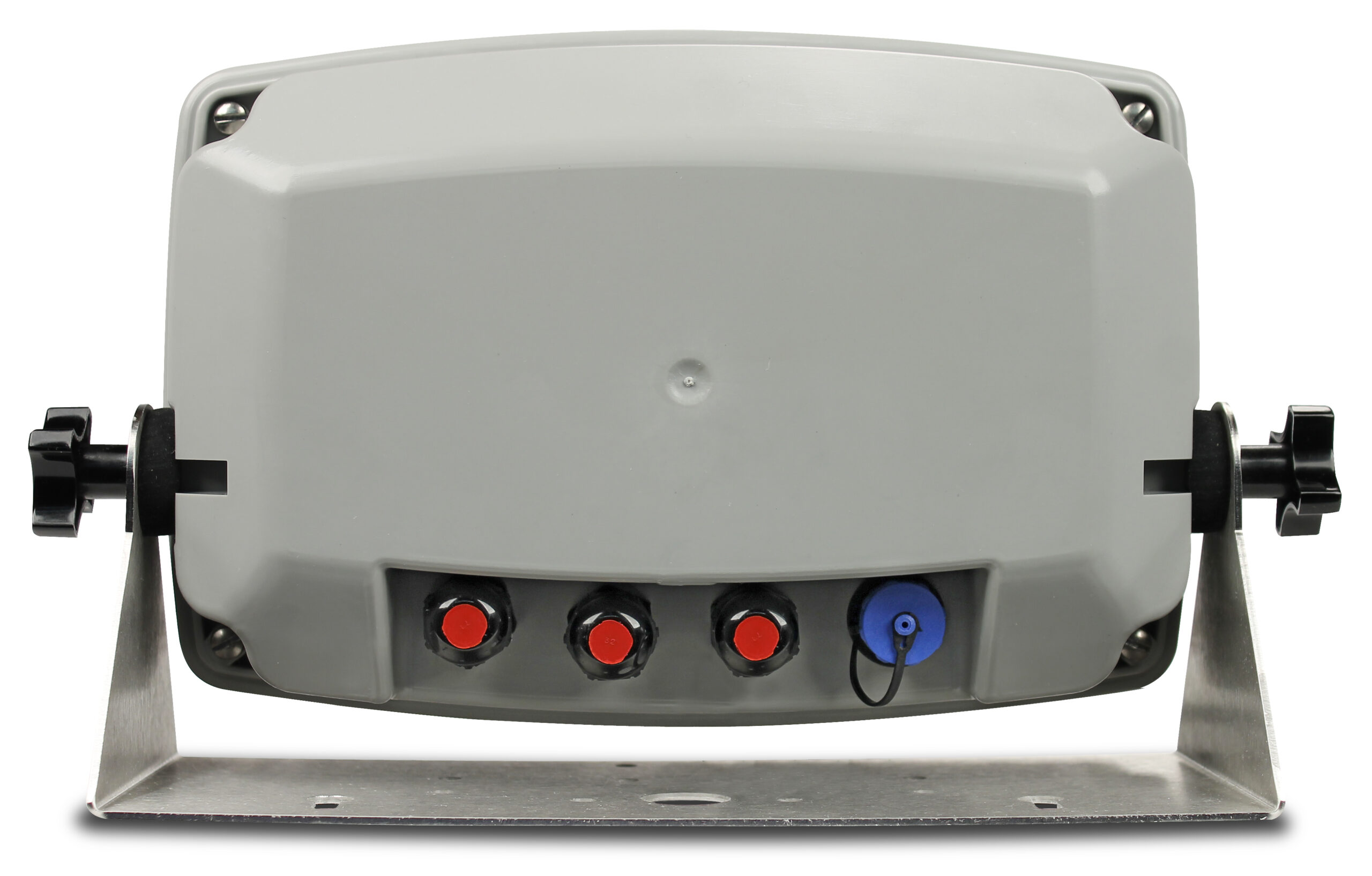

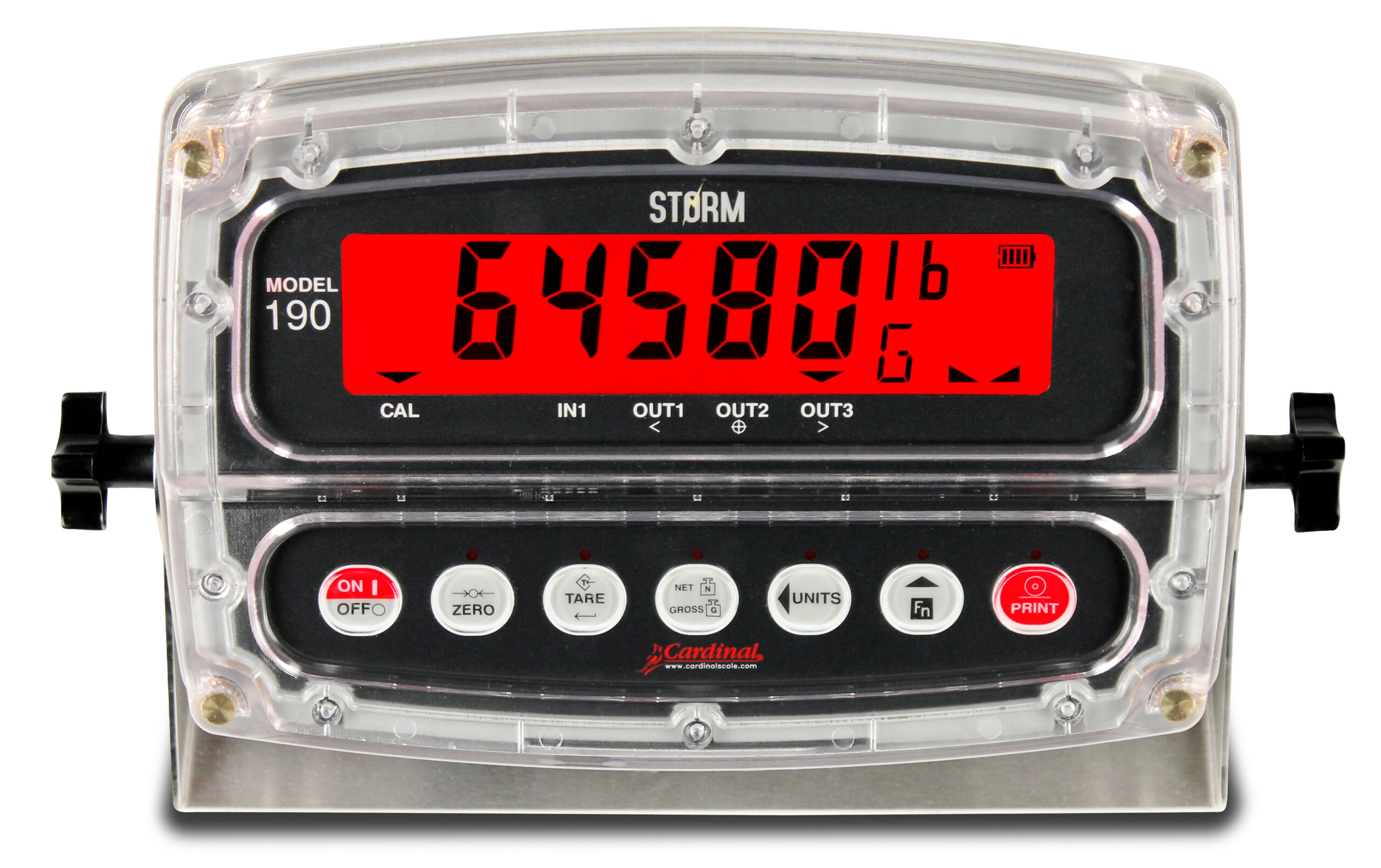

Designed for non-legal-for-trade portable axle weighing applications such as with Cardinal Scale’s 760 series mobile wheel weighers, the 190A weight indicator features axle weighing software, traffic control mode to automatically capture accumulative axle weights without the driver having to leave the truck (when connected to a SB600 remote display and printer), two RS232 serial ports (for printer and remote display), optional rechargeable lithium ion battery, capacitive touch keys, and IP69K-rated washdown enclosure (the highest protection rating possible). The 1-inch/25-mm high backlit LCD is visible in direct sunlight and may be set to any one of 6 different customizable settings. The 190A feature 3 watertight gland connectors, quick-connect power connector, and one ID.
Power Requirements: 10.5 to 30 VDC 1.0A Max. Enclosure Type: Thermoplastic IP69K wall or desk-mount Enclosure Size: 9.4 inch W x 6.4 inch H x 3.7 inch D / 239 mm W x 163 mm H x 93 mm D Operating Temperature: 14 to 104 ºF (-10 to +40 ºC) Operating Humidity: 90% non-condensing (maximum) DIsplay: Six digit, seven segment, 1.0 inch / 25 mm high Backlit LCD Transducer Excitation: 5.18 VDC Signal Input Range: 0.5 mV min. to 40 mV max. (with dead load boost) Compatibility: Designed strictly for non-legal-for-trade mobile axle pad weighing use such as with Cardinal Scale’s 760 series Load Cell Cable Length: 1500 feet maximum. 30 feet maximum without sense lines. Consult factory for other requirements. Internal Resolution: 1 part in 16,777,216 Tare Capacity: Scale Capacity
Sample Rate: 1 to 100 samples per second, selectable Auto Zero Range: 0.5 or 1 through 9 divisions Weighing Units: Pounds, Ounces, Kilograms, Grams Standard I/O: (2) bi-directional RS232 serial ports NTEP Approval: Certificate of Conformance No. 10-084 Enclosure IP Rating: IP69K Optional Battery Charge Time: 6 hours Optional Rechargeable Battery Continuous Operation Run Times: Running single load cell – 92 hours with NO backlight / 83 hours with BLUE backlight / 48 hours with RED backlight / 48 hours with PINK backlight / 45 hours with GREEN backlight / 41 hours with YELLOW backlight / Battery life will be extended with SLEEP and AUTO-OFF operation set
