200 Panel Mount

$0.00

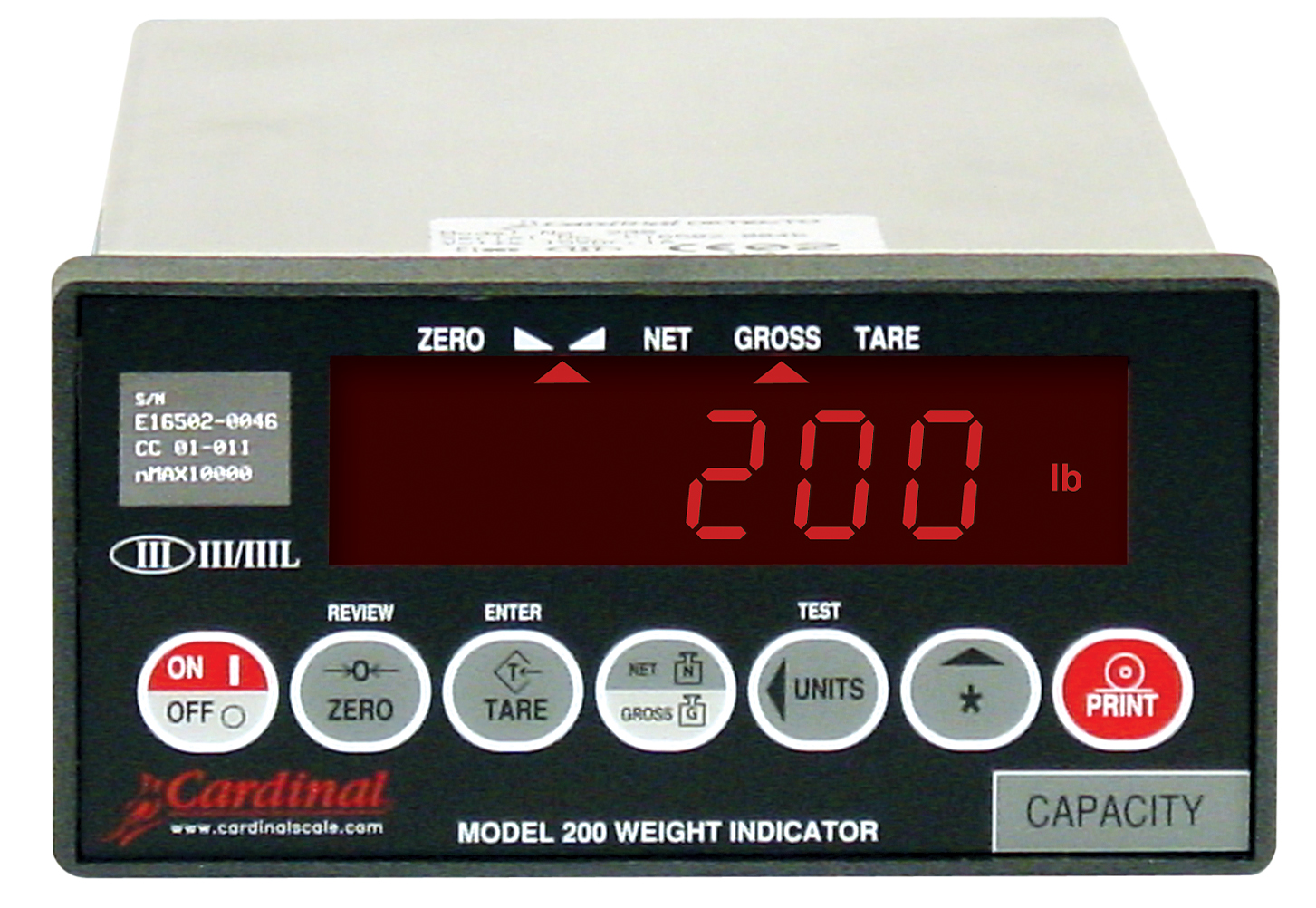

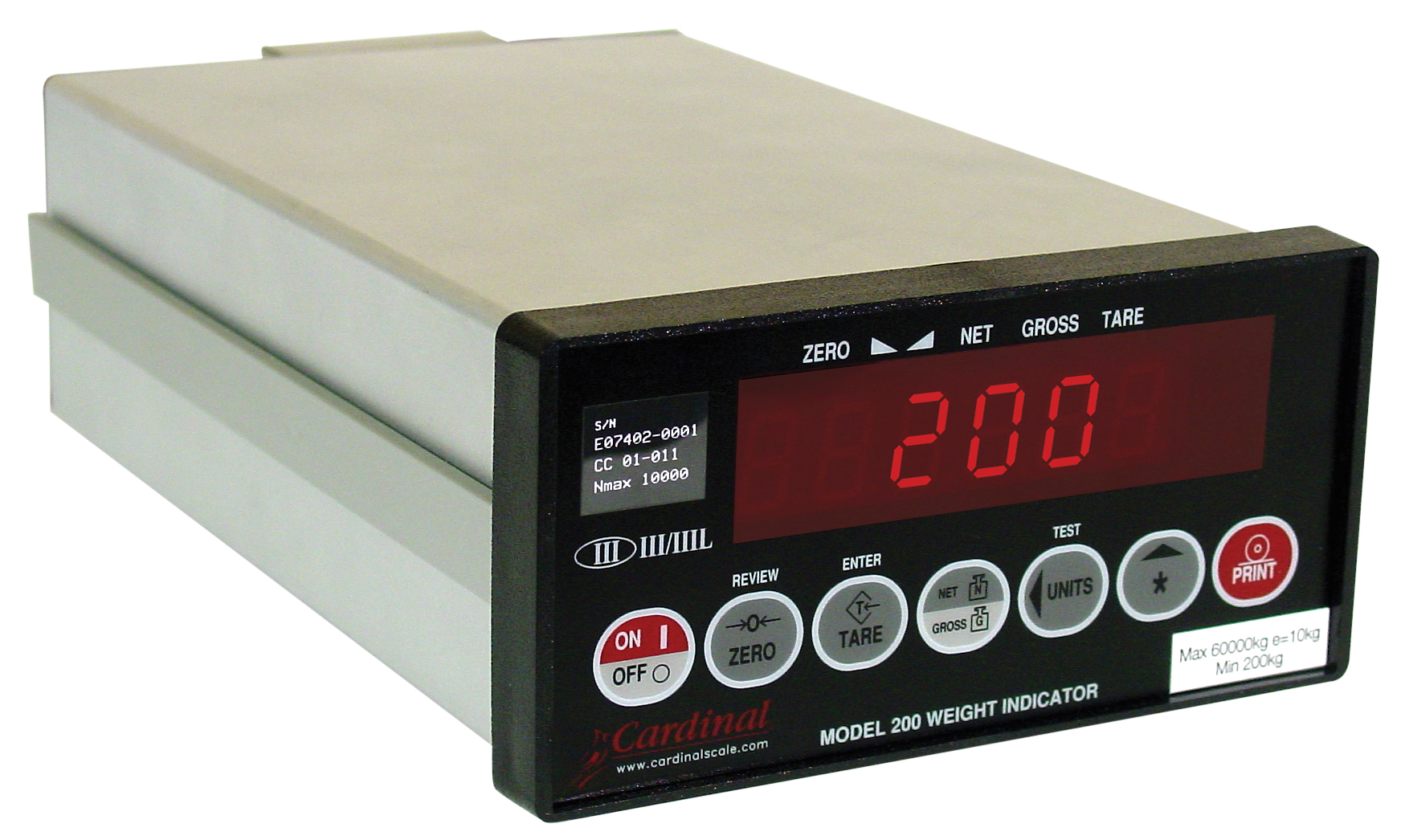

Providing exceptional functionality while taking up minimal panel space, Cardinal Scale?s versatile model 200 panel mount weight indicator adapts easily to fit into your system with a simple two-screw slide mounting assembly. A sealed-membrane keypad with selectable key lock to help reduce keystroke errors combined with a tough 3/16 DIN aluminum enclosure and a 6-digit, 7-segment 0.6-inch/15-mm high bright-red LED display ensures years of dependable use. Featuring input control lines for remote activation of zero, acquire tare, gross and print functions; seven weight units; push-button Tare; Net/Gross conversion, and many more. Includes two RS232 serial ports for connectivity to a remote display, printer or PC, and can be easily connected using the screw-terminal block. NTEP and OIML legal-for-trade certified. Supports up to 8 350-ohm load cells.

Download product PDF
Category:

Features

  • 2 RS232 Serial Ports
  • 3/16-in DIN Rail
  • Gross/Tare/Net Conversion
  • IP52 Enclosure Rating
  • NTEP Legal for Trade
  • OIML Certified
  • Powers up to 8 Load Cells
