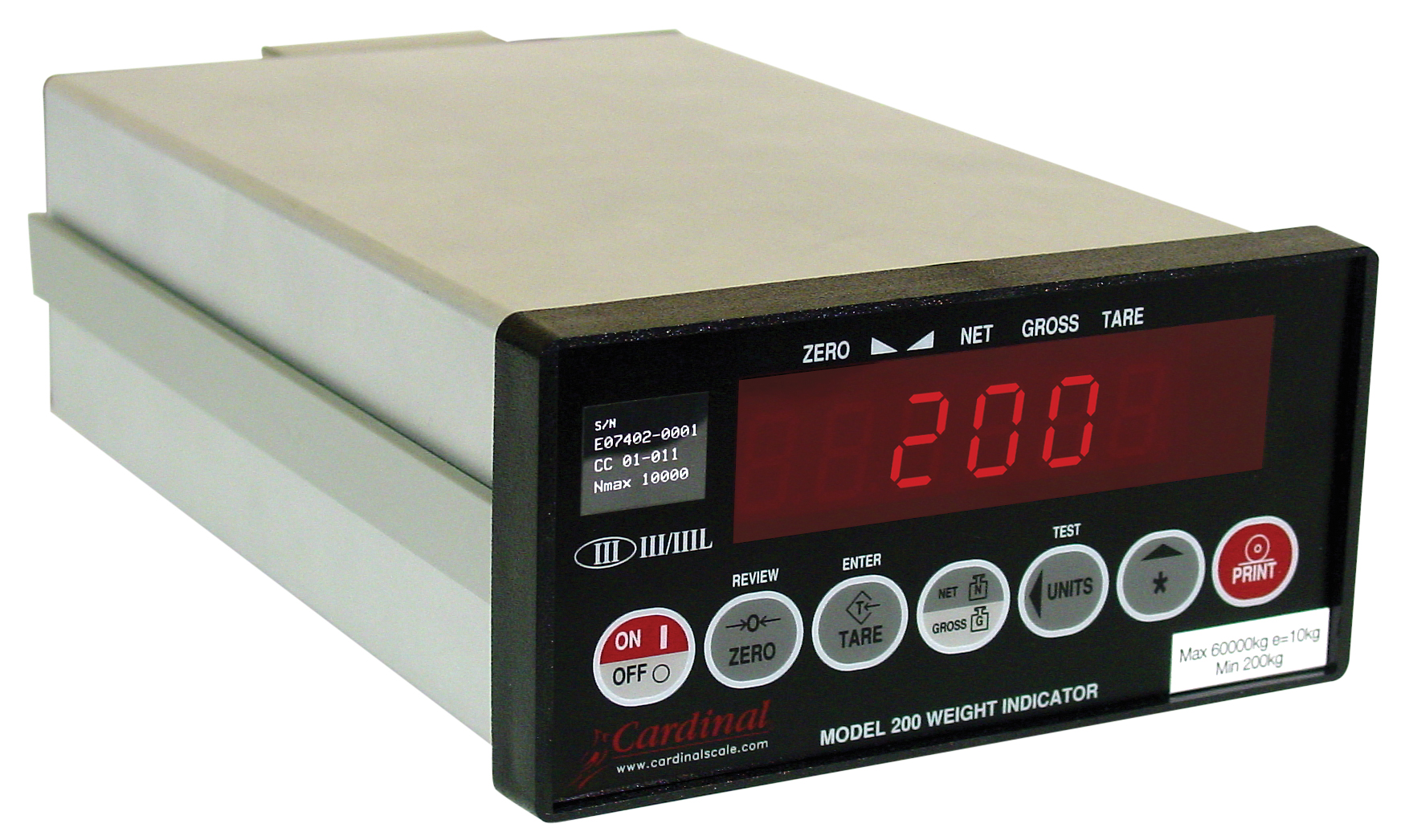

200 Panel Mount

$0.00

Providing exceptional functionality while taking up minimal panel space, Cardinal Scale’s versatile model 200 panel mount weight indicator adapts easily to fit into your system with a simple two-screw slide mounting assembly. A sealed-membrane keypad with selectable key lock to help reduce keystroke errors combined with a tough 3/16 DIN aluminum enclosure and a 6-digit, 7-segment 0.6-inch/15-mm high bright-red LED display ensures years of dependable use. Featuring input control lines for remote activation of zero, acquire tare, gross and print functions; seven weight units; push-button Tare; Net/Gross conversion, and many more. Includes two RS232 serial ports for connectivity to a remote display, printer or PC, and can be easily connected using the screw-terminal block. NTEP and OIML legal-for-trade certified. Supports up to 8 350-ohm load cells.

Download product PDF
Category:

Features

  • 2 RS232 Serial Ports
  • 3/16-in DIN Rail
  • Gross/Tare/Net Conversion
  • IP52 Enclosure Rating
  • NTEP Legal for Trade
  • OIML Certified
  • Powers up to 8 Load Cells

Specifications

Display: 6-digit, 7-segment LED, 0.6 in / 14 mm high
Enclosure: Aluminum extrusion
Keypad: 7 keys, color coded membrane
Units: Pounds, pounds/ounces, ounces, tons, kilograms, grams, metric tons
Division Value:
 1 to 99 x 10, 1, 0.1, 0.01, 0.001
Sample Rate:
1 to 100 samples per second, selectable
Load Cells: 8 each, 350 ohm minimum resistance
Excitation: 12 VDC
Sensitivity (NTEP): 0.3?V/e (Class III/IIIL)
Sensitivity (Canada): 0.3?V/e (Class III/IIIHD)
Sensitivity (OIML): 0.7?V/e (Class III)
Resolution (Non-Commercial): 240,000
Resolution (NTEP): 10,000 (Class III/IIIL)
Resolution (Canada): 10,000 (Class III/IIIHD)
Resolution (OIML): 10,000 (Class III)
Power: 15v, 1 amp with 90 to 260 VAC, 50/60 Hz plug-in power supply
Temperature Range: -10 to +40 °C / +14 to +104 °F
I/O: 1 bidirectional RS232 (20mA), 1 output only RS232 (20mA), Optional analog output
NTEP Approval: 01-011A4
OIML: R76/1992-DK1-01.02
Enclosure IP Rating: IP52

Options

2XX-DAC Option: 2XX Analog Output Card Call For Pricing
2XX-EIP Option: 2XX Anybus-S Ethernet/IP Call For Pricing
2XX-IP Option: 2XX Ethernet Interface Call For Pricing
2XX-MODBUSTCP Option: 2XX Modbus TCP/IP Call For Pricing
2XX-RS232 Option: 2XX Serial Card Call For Pricing
2XX-SFG Option: 2XX Serial Fiber Optic, Glass Call For Pricing
2XX-SFP Option: 2XX Serial Fiber Optic, Plastic Call For Pricing
6600-0623 Modem, Short Haul Call For Pricing
RB3 Relay Box, 3 Relays, Normally Open, 4 -15 VDC In, 20-280 VAC Out Call For Pricing
RB4-ACIN Relay Box, 4 Relays, Normally Open, 115VAC In Call For Pricing
RB4-ACINV Relay Box, 4 Relays, Normally Open, 230 VAC In Call For Pricing
RB4-ACOUT Relay Box, 4 Relays, Normally Open, 3A, 24-280 VAC Out Call For Pricing
RB4-DCIN Relay Box, 4 Relays, Normally Open, 3.3 – 32 VDC In Call For Pricing
RB4-DCOUT Relay Box, 4 Relays, Normally Open, 3 – 60 VDC Out Call For Pricing
RB4C Relay Box, 4 Form-C (SPDT) Relays, 3A, 24-280 VAC/VDC Out Call For Pricing
RB8-ACIN Relay Box, 8 Relays, Normally Open, 115 VAC In Call For Pricing
RB8-ACINV Relay Box, 8 Relays, Normally Open, 230 VAC In Call For Pricing
RB8-ACOUT Relay Box, 8 Relays, Normally Open,  3A, 24-280 VAC Out Call For Pricing
RB8-OPTO Relay Box, 8 Sockets for Optional Relay Modules Call For Pricing
RB9 Relay Box, 9 Relays, Normally Open, 4 -15 VDC In, 20-280 VAC Out Call For Pricing
S2E1 Option: Converter, Serial to Ethernet Call For Pricing
SFG1 Option: Serial, Fiber Optic Transceiver, Glass Call For Pricing
SFP1 Option: Serial, Fiber Optic Transceiver, Plastic Call For Pricing

Models

200 Weight Indicator, Panel Mount, LED, 7 Key, Aluminum Call For Pricing
