201

$0.00

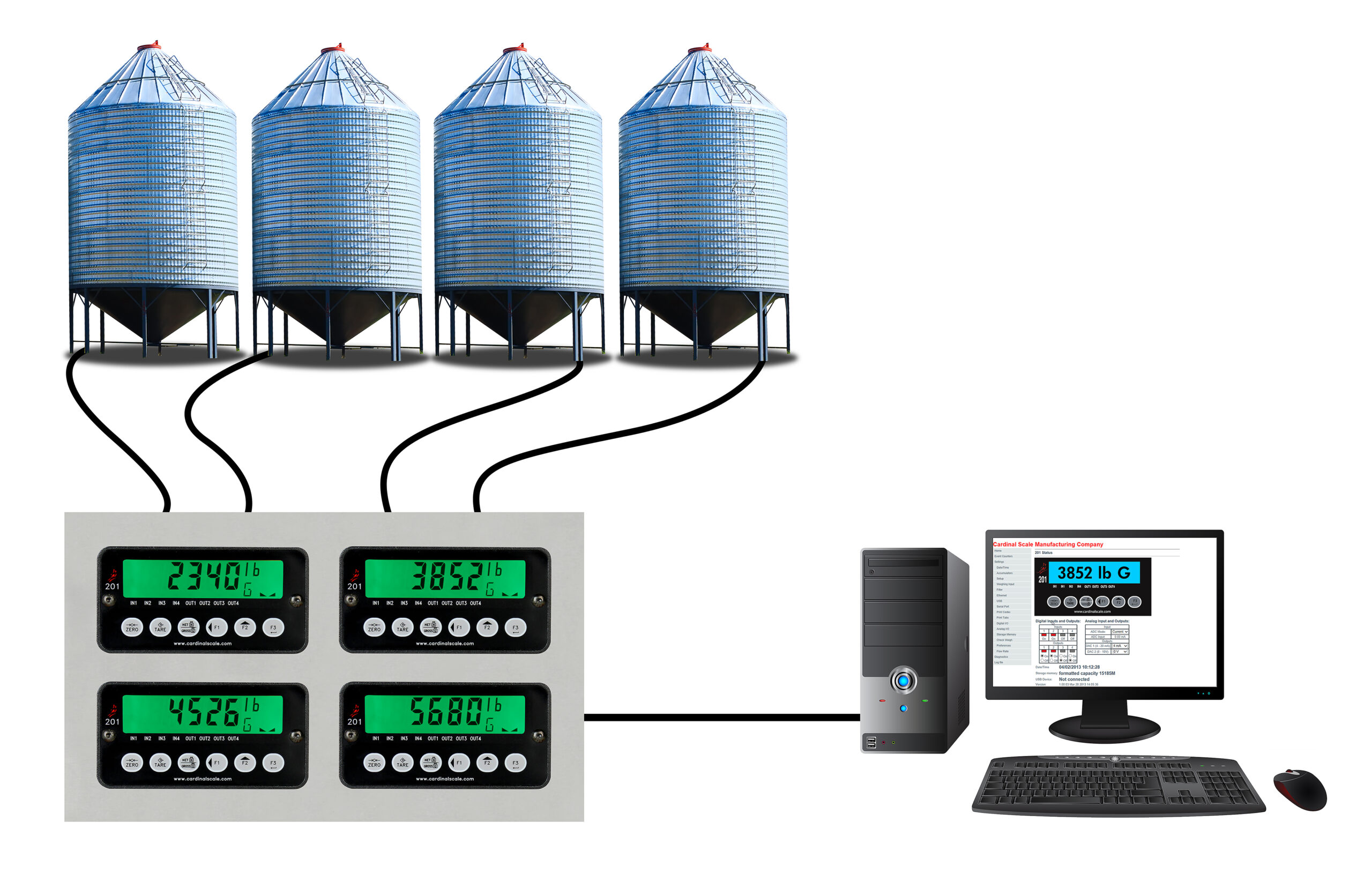

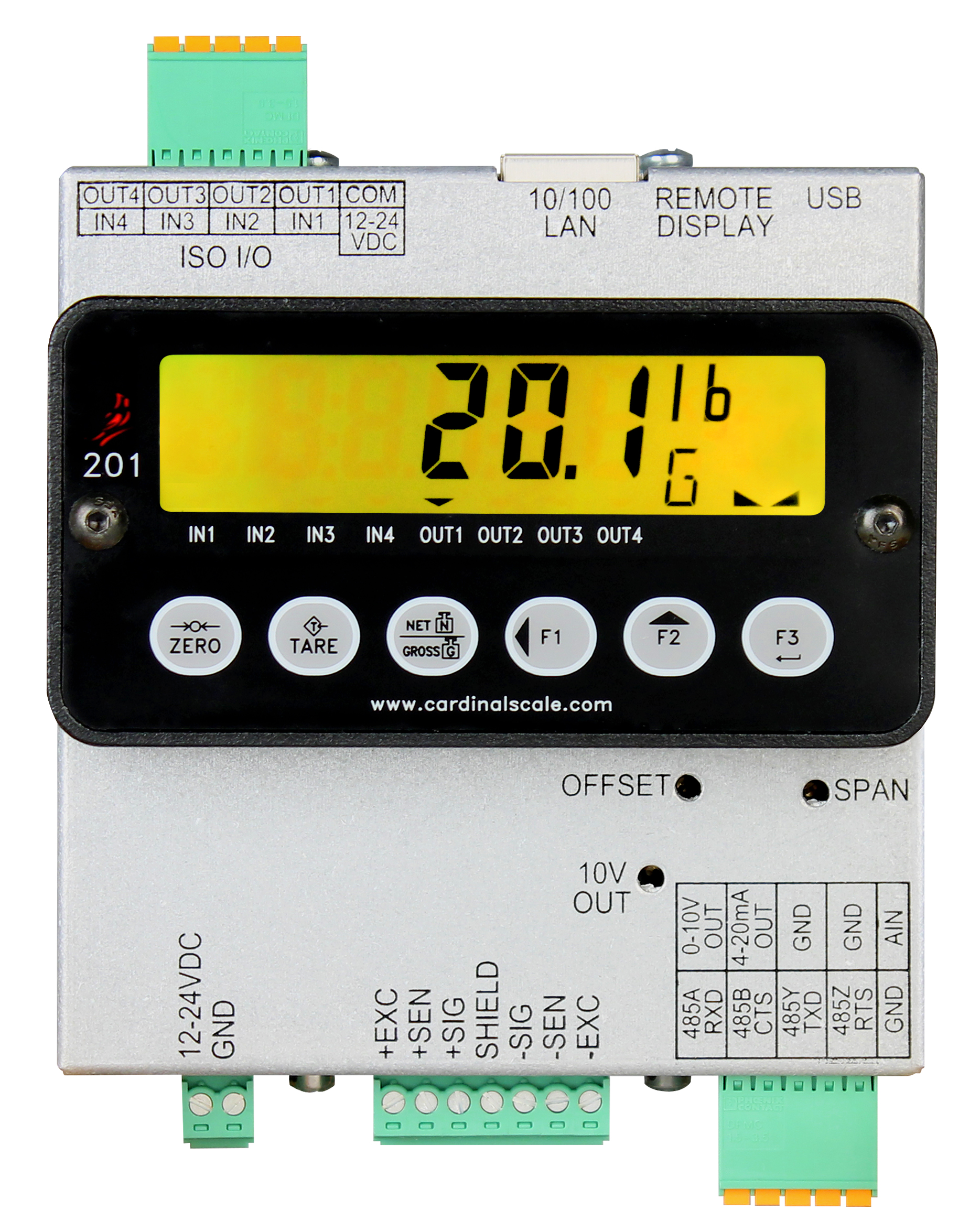

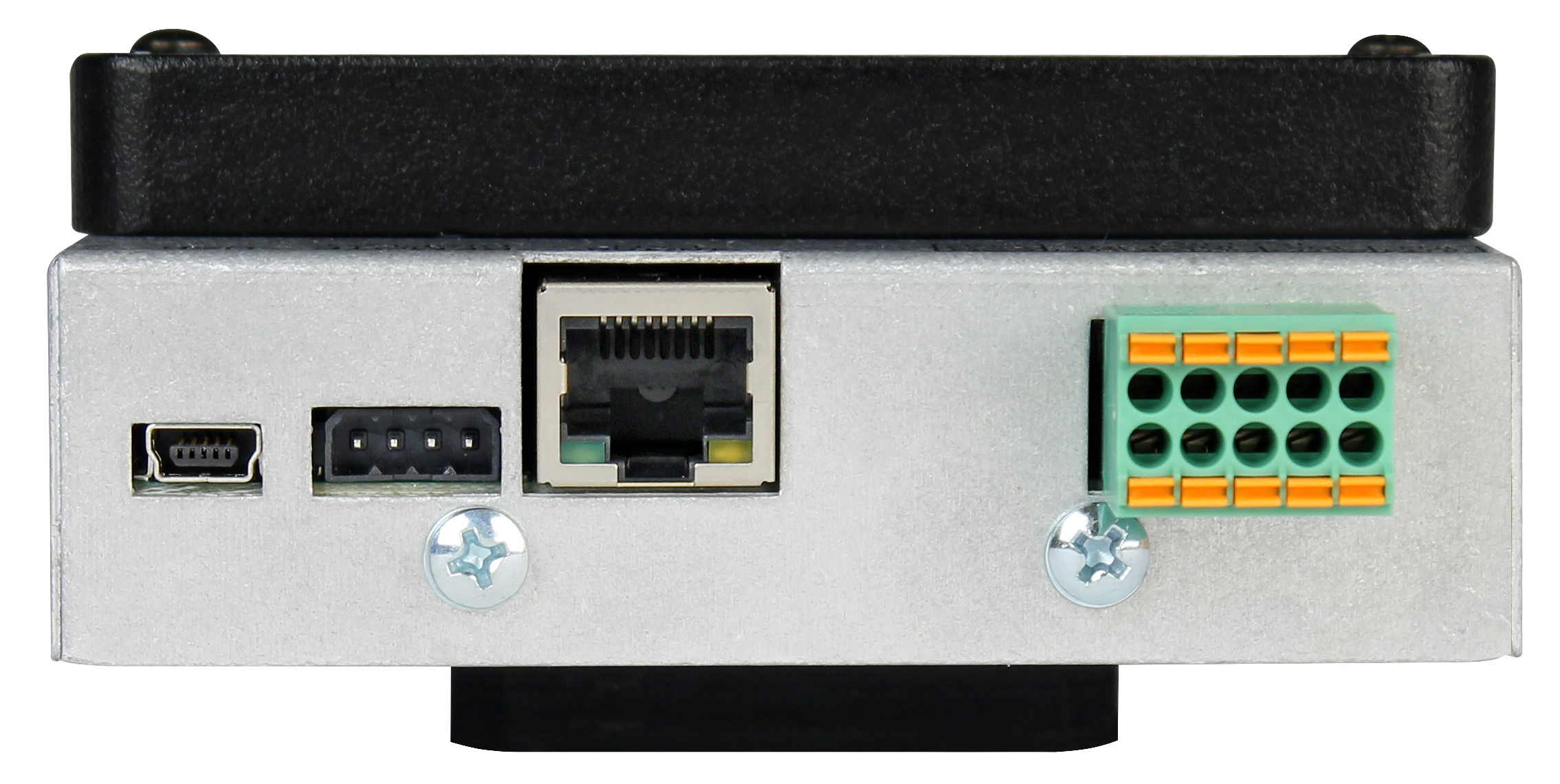

The 201 weight transmitter is a fast, accurate instrument for process control-based static and dynamic weighing applications capable of powering up to eight 350-ohm load cells and comes with a 35-mm DIN rail mounting bracket. The 201 transmitter features a 0.5-inch-high, six-digit, transflective LCD display with up to seven different colors and is viewable in all lighting levels from direct light to total darkness. A variety of mounting options and ColorZONE control options make it ideal for quick visual verification of weight status. The 201 offers sample rates of up to 200 samples per second and standard communication protocols include serial interface RS232/RS485, mini USB-B, Analog (0-10V or 4-20mA), Ethernet TCP/IP, EIP, and Modbus TCP, making it easy to connect to a PC, PLC, and other smart devices. NTEP, Measurement Canada, CE, and UL.

Download product PDF
Category:

Features

  • .5-in-high LCD Display
  • ColorZONE Checkweighing
  • DIN Rail Mounting Bracket
  • NTEP Legal for Trade
  • PLC Connectivity
  • Powers up to 8 Load Cells
  • Versatile Mounting Variations
  • Web Interface Through IP Address

Specifications

Power Requirements: 12-24 VDC @ 6w
Listed Accessory: The weight transmitter is intended to be used with Listed Information Technology Equipment
Enclosure Rating: IP-20 DIN Rail 35mm, mounted in customers enclosure with optional remote display mounting
Operating Temperature: 14 to 104 ºF (-10 to +40 ºC)
Display Capacity: Six digit, 7-segment, 0.5 inch high with separate annunciators, Over, Under and Accept backlight indicators
Display Technology: Transflective LCD with RGB LED backlight
Load Cell Excitation: 11.72 VDC
Signal Input Range: 0.5 mV min. to 35 mV max.
Load Cell Connection: 4 or 6 wire (remote excitation sensing)
Minimum Cell Resistance: 43.75 ohms (8 – 350 ohm cells)
Division Value Commercial: 1, 2, 5, 10, 20 or 50 x 10, 1, 0.1, 0.01, 0.001
Division Value Non-Commercial: 0 to 99
Sensitivity: 0.5 uV / scale division
Resolution: 10,000 divisions
Sample Rate: 1 to 200 samples per second, selectable
Zero Range: +/-2% to 100% full scale, selectable
Units of Measure: Pounds, Ounces, Kilograms, Grams
Keys: Pounds, Ounces, Kilograms, Grams
Serial Interface: Bi-directional software selectable RS232 (30ft/10m up to 19.2k baud) OR RS485 (3,300ft/1000m) 24 AWG shielded and twisted cable
USB: 5-pin mini USB device
Ethernet: 10/100 Ethernet (DHCP, TCP/IP, Embedded Web Page, Modbus TCP, Ethernet IP)
Inputs: 4 Isolated inputs, 12-24 VDC current sink
Outputs: 4 Isolated outputs, 12-24 VDC current sink
Analog Input: Software selectable Non-isolated 0-10 VDC or 4-20mA DC
Analog Output: (1) Non-isolated 0-10 VDC output (12 bit, 2k ohm min.) – (1) Non-isolated 4-20mA DC output (12 bit, 450 ohm max.)
Approvals: Class III NTEP and Class III Measurement Canada

Options

201DCABLE Cable, Remote, 201 Indicator, 10 Feet Long Call For Pricing
6610-1565 TERMINAL BLOCK 4 POS. 2.5mm PLUG Call For Pricing
8400-B121-08 Gasket, Front Panel, 201 Call For Pricing
RB3 Relay Box, 3 Relays, Normally Open, 4 -15 VDC In, 20-280 VAC Out Call For Pricing
RB4-ACIN Relay Box, 4 Relays, Normally Open, 115VAC In Call For Pricing
RB4-ACINV Relay Box, 4 Relays, Normally Open, 230 VAC In Call For Pricing
RB4-ACOUT Relay Box, 4 Relays, Normally Open, 3A, 24-280 VAC Out Call For Pricing
RB4-DCIN Relay Box, 4 Relays, Normally Open, 3.3 – 32 VDC In Call For Pricing
RB4-DCOUT Relay Box, 4 Relays, Normally Open, 3 – 60 VDC Out Call For Pricing
RB4C Relay Box, 4 Form-C (SPDT) Relays, 3A, 24-280 VAC/VDC Out Call For Pricing
RB8-ACIN Relay Box, 8 Relays, Normally Open, 115 VAC In Call For Pricing
RB8-ACINV Relay Box, 8 Relays, Normally Open, 230 VAC In Call For Pricing
RB8-ACOUT Relay Box, 8 Relays, Normally Open,  3A, 24-280 VAC Out Call For Pricing
RB8-OPTO Relay Box, 8 Sockets for Optional Relay Modules Call For Pricing
RB9 Relay Box, 9 Relays, Normally Open, 4 -15 VDC In, 20-280 VAC Out Call For Pricing

Models

201 Weight Transmitter, 0.5” LCD, 6 Key, DIN Rail Mount Call For Pricing
