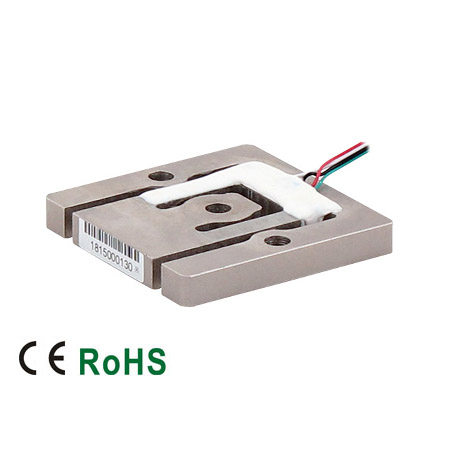

202WH Planar Load Cell
$0.00
- Material: Alloy Steel
- Rated Capacity: 250kg
- Full Scale Output: 0.9mV/V ± 0.1%
- Safe Overload: 150% of full scale of
- Breaking Overload: 300% of full scale
- IP Rating: IP65
- CE and RoHS certified
Download product PDF
Specifications
| Rated Capacity |
250kg |
| Full Scale Output |
0.9mV/V ± 0.1% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.01% |
| Repeatability |
< ± 0.01% |
| Hysteresis Error |
< ± 0.01% |
| Creep in 30 minutes |
< ± 0.010% |
| Input Resistance |
1204Ω ± 5Ω |
| Output Resistance |
1000Ω ± 10Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Nominal Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Service Temperature Range |
–18°C to 65°C/0°F to 149°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP65 |
