Features
- 4 RS232 Serial Ports
- Gross/Tare/Net Conversion
- IP67 Enclosure Rating
- NTEP Legal for Trade
- OIML Certified
- Powers up to 8 Load Cells
- Stainless Steel Enclosure
- USB-B Standard – USB-A Optional
205 Storm
$0.00

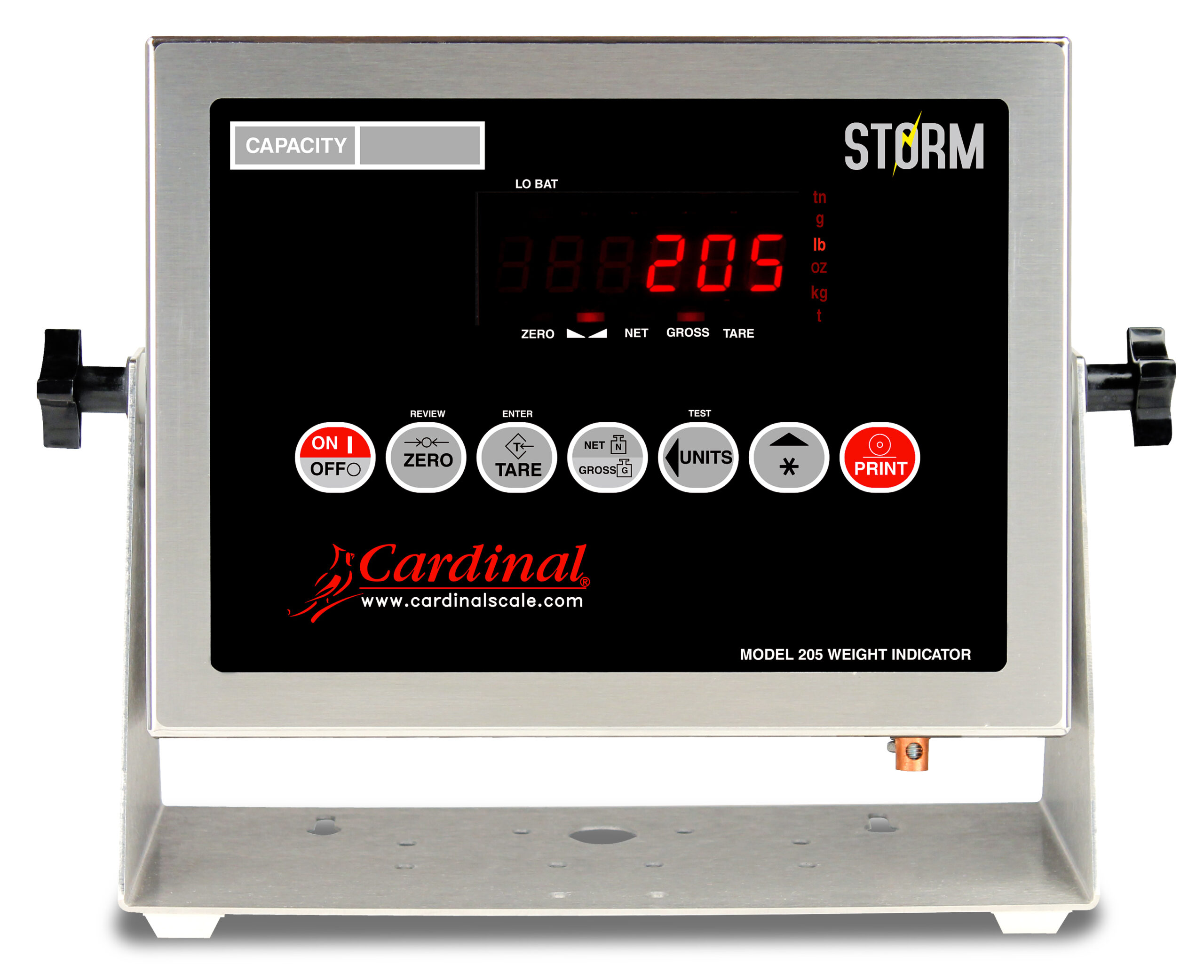

The Cardinal model 205 is a reliable general-purpose weight indicator which may be connected to bench, floor, overhead track, tank/hopper, livestock or even truck scales. The stainless steel desk or wall-mountable enclosure ensures accurate, reliable operation in harsh environments and washdown applications. An easy-to-read 0.6-inch/15 mm high bright-red LED displays weight to six digits while push-button Gross, Tare, Net conversion, StableSENSE adjustable filtering, selectable key lockout, flexible print formats, selectable weight units, auto shutoff and sleep mode make the 205 easy to use. Four bi-directional RS232 serial ports, four input control lines, optional SnapStream wireless, USB-B standard, and USB-A optional features provide multiple connectivity options. NTEP, OIML, Measurement Canada, Australian NSC, ETL, and CE.
Specifications
Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max.
Enclosure Type: Stainless steel wall or desk-mount
Enclosure Size: 9.2-in W x 7.5-in H x 3.1-in D (233-mm W x 191-mm H x 79-mm D)
Weight: 8.2 lb (3.7 kg)
Compensated Temperature Range: 14 to 104 ºF (-10 to 40 ºC)
Operating Temperature Range: -10 to 122 ºF (-23 to 50 ºC)
Humidity: 0 to 90% non-condensing
Transducer Excitation: 9.4 VDC
Signal Input Range: 1.0 mV min. to 31 mV max. (with dead load boost)
Number of Load Cells: 8 each 350-ohm load cells
Load Cell Cable Length: 1,500 feet (457 m) maximum (requires the use of sense lines). Consult factory for other requirements. 30 feet (9 m) maximum without sense lines.
Division Value Commercial: 1, 2, or 5 x 10, 1, 0.1, 0.01, 0.001
Division Value Non-commercial: 1 to 99 x 10, 1, 0.1, 0.01, 0.001
Sensitivity Non-commercial: 0.15 uV/e
Sensitivity NTEP: 0.3uV/e (Class III/IIIL)
Sensitivity Canada: 0.3uV/e (Class III/IIIHD)
Sensitivity OIML: 0.5 uV/e (Class III)
Scale Divisions Non-commercial: 100 to 240,000
Scale Divisions NTEP: 500 to 10,000 (Class III/IIIL)
Scale Divisions Canada: 500 to 10,000 (Class III/IIIHD)
Scale Divisions OIML: 500 to 10,000 (Class III)
Internal Resolution: 1 part in 16,777,216
Tare Capacity: Scale Capacity
Sample Rate: 1 to 100 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Weighing Units: Tons, Pounds, Pounds-Ounces, Ounces, Metric Tons, Kilograms, Grams
Keypad: Color-coded membrane type, 7 keys
Standard I/O: 4 ea serial I/O ports configured as 1 ea 20
Certifications: NTEP, Measurement Canada, Australian NSC, ETL, and CE
Display: Six-digit, seven-segment, 0.6-in (15-mm) high LED
Options
 |
205-SNAP | Weight Indicator, 205, SnapStream | Call For Pricing | ||
 |
2XX-DAC | Option: 2XX Analog Output Card | Call For Pricing | ||
 |
2XX-EIP | Option: 2XX Anybus-S Ethernet/IP | Call For Pricing | ||
 |
2XX-IP | Option: 2XX Ethernet Interface | Call For Pricing | ||
 |
2XX-MODBUSTCP | Option: 2XX Modbus TCP/IP | Call For Pricing | ||
 |
2XX-PANEL | Option: 205/210 Panel Mount Kit | Call For Pricing | ||
 |
2XX-RS232 | Option: 2XX Serial Card | Call For Pricing | ||
 |
2XX-SFG | Option: 2XX Serial Fiber Optic, Glass | Call For Pricing | ||
 |
2XX-SFP | Option: 2XX Serial Fiber Optic, Plastic | Call For Pricing | ||
 |
2XX-USBA | Option: USB-A Card, 2 USB-A Ports , One Micro SD Port | Call For Pricing | ||
 |
6600-0623 | Modem, Short Haul | Call For Pricing | ||
 |
6600-2006 | External Waterproof Port, USBA Male to USBA Female Cable 1.6 ft/.5 M Long | Call For Pricing | ||
 |
8200-B163-0A | Cable: USB, 205/210 Indicators | Call For Pricing | ||
 |
RF1 | Transceiver, Wireless, Short Range, Pair | Call For Pricing | ||
 |
S2E1 | Option: Converter, Serial to Ethernet | Call For Pricing | ||
 |
SFG1 | Option: Serial, Fiber Optic Transceiver, Glass | Call For Pricing | ||
 |
SFP1 | Option: Serial, Fiber Optic Transceiver, Plastic | Call For Pricing |
Models
 |
205 | Weight Indicator, LED, 7 Key, Stainless Steel | Call For Pricing | ||
|
205UK | DWI: 205, LED NEMA 4X W/ UK PWR CORD | Call For Pricing | ||
|
205EU | DWI: LED NEMA 4X W/EURO PWR CORD | Call For Pricing |
