Features
- 10-Level Brightness Control
- 2 RS232 Serial Ports
- 2.24-in-high LED Digits
- Extra-large Key Sizes for Gloves
- IP66 Enclosure Rating
- NTEP Legal for Trade
- OIML Certified
- Powers up to 8 Load Cells
- Stainless Steel Enclosure
210FE
$0.00

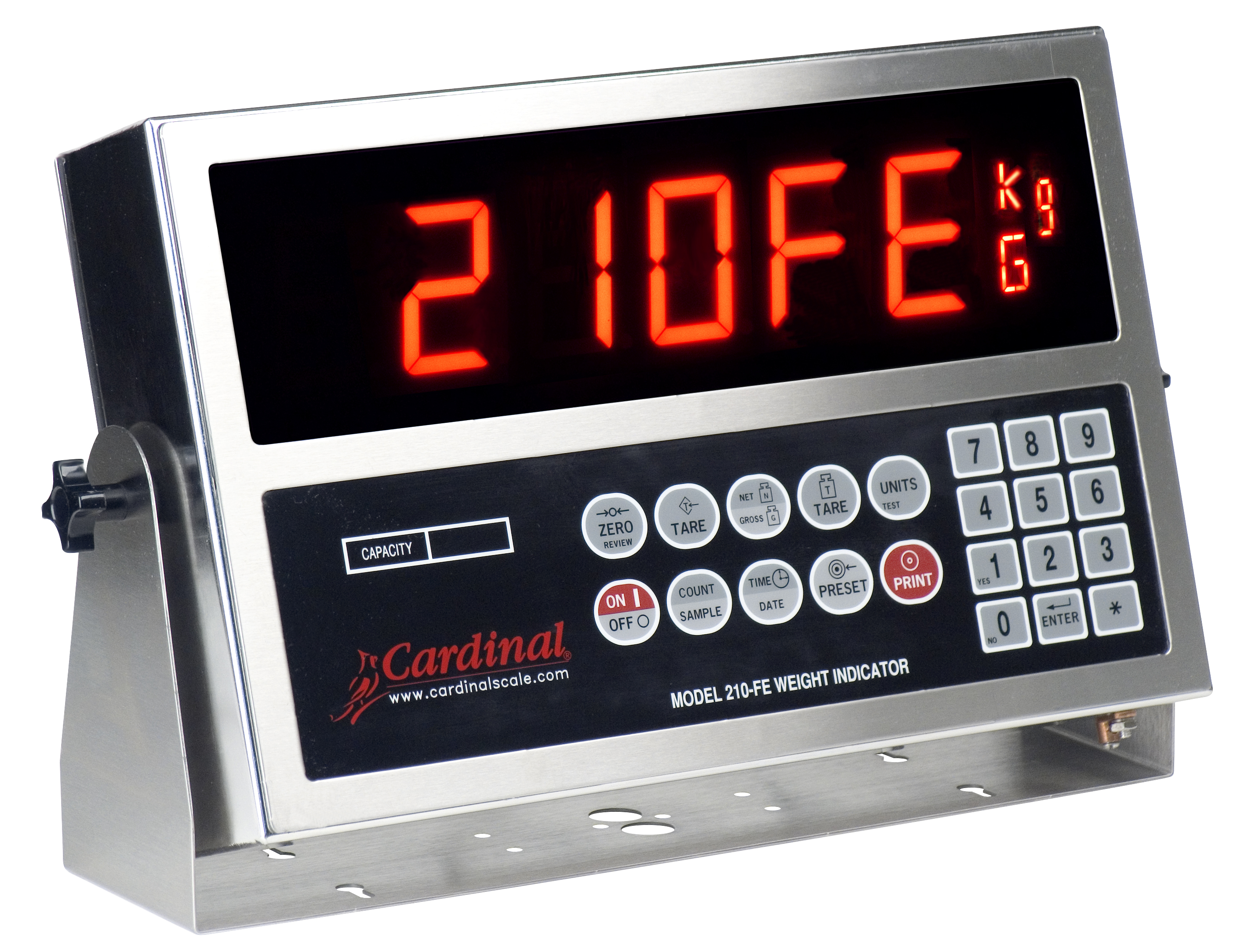

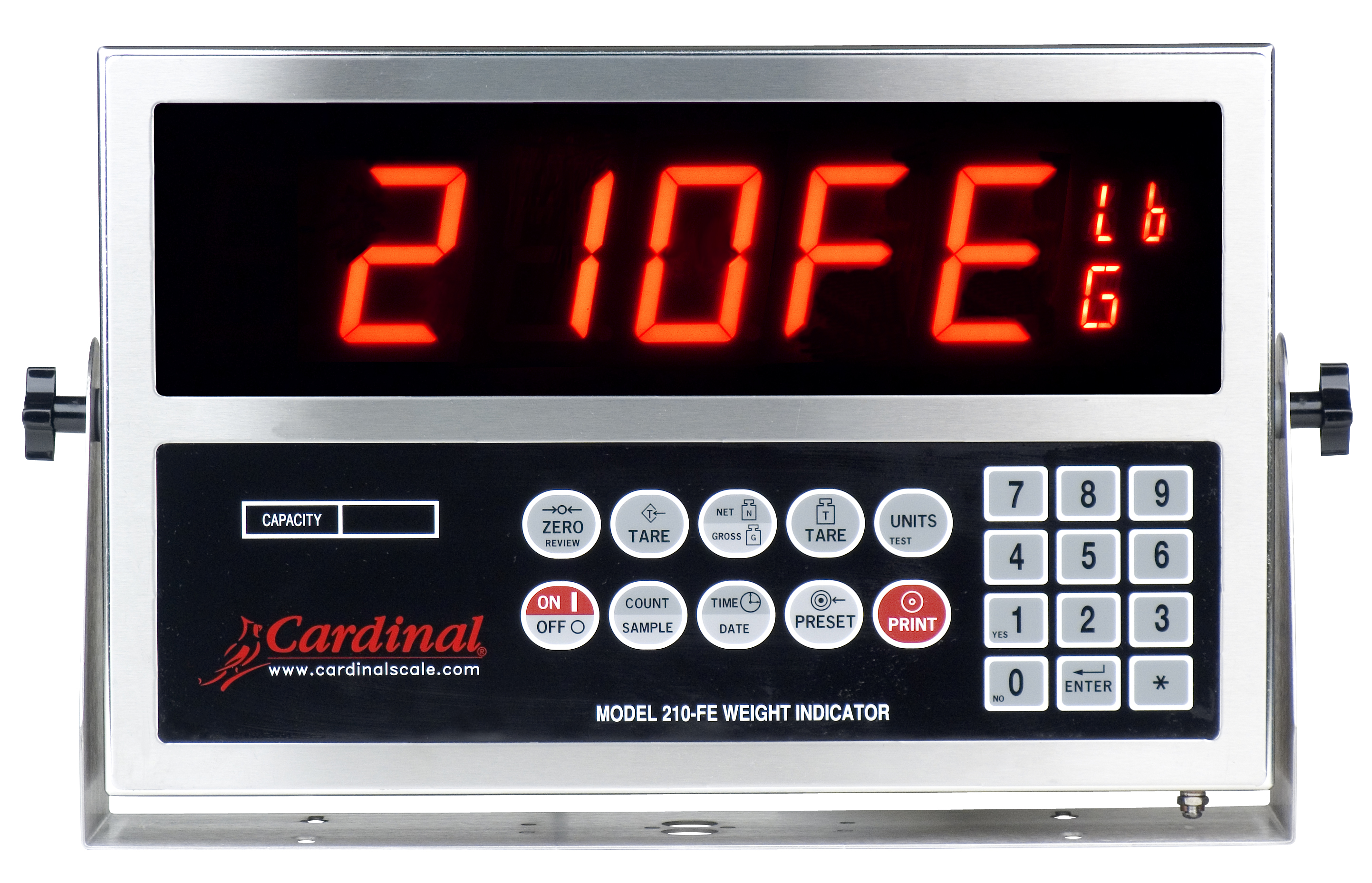

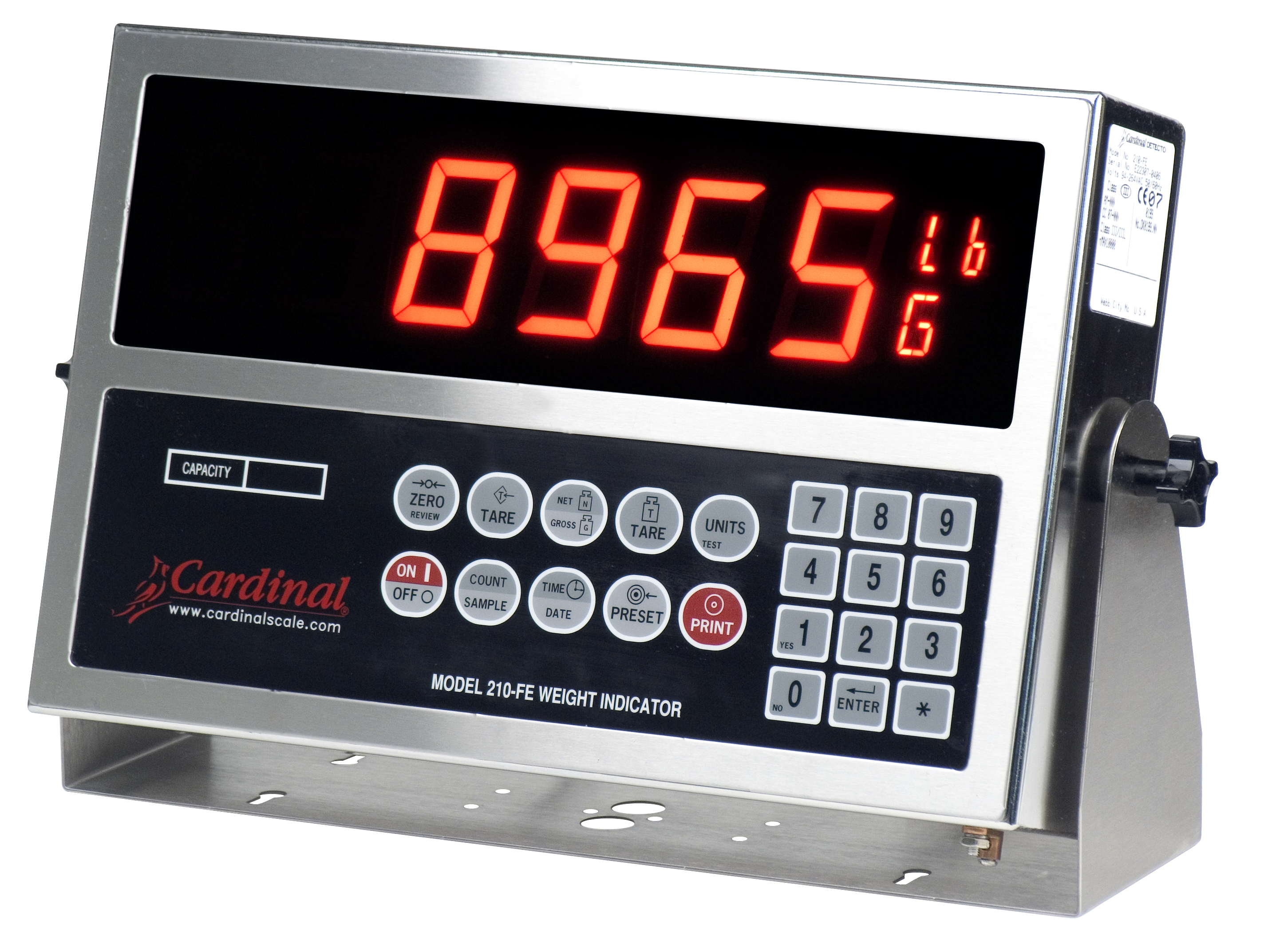

?Bigger is better? is certainly a rule that can be applied to the Cardinal 210FE?s large display readouts. With a 15-inch W x 9.7-inch H (38-cm W x 24.6-cm H) rugged stainless steel enclosure housing a highly visible 2.24-inch/57 mm high bright-red LED with brightness control, the 210FE is easily viewed from long distance making this indicator ideal for outdoor applications. Retaining all of the standard features of a 210: remote controllability, dual RS232 serial ports, flexible print formats, auto shutoff, and selectable key lockout with the added advantage of an over-sized numeric keypad for convenient use with gloves. NTEP legal-for-trade and OIML certified. Supports up to 8 350-ohm load cells.
Specifications
Power: 90 to 264 VAC (50/60 Hz) at 0.4A
Enclosure Dimensions: 9.7 in H x 15 in W x 3.1 in D (246 mm H x 381 mm W x 79 mm D)
Operating Environment: Temperature: 14 to 104 ?F (-10 to +40 ?C), Humidity: 90% non-condensing (maximum)
Display: Six-digit, seven-segment, 2.5 in high (display), 2.24 in high LED digits
Excitation: 12 VDC
Signal Input Range: 1.0 mV min. to 40 mV max. (with dead load boost)
Number of Load Cells: 8 each, 350 OHM minimum resistance
Load Cell Cable Length: 500 ft maximum. Consult factory for other requirements. 30 feet maximum without sense lines
Division Value (Commercial): 1, 2, or 5 x 10, 1, 0.1, 0.01, 0.001
Division Value (Non-Commercial): 0 to 99
Sensitivity (Canada): 0.3uV/e (Class III/IIIHD)
Sensitivity (OIML): 0.7 uV/e (Class III)
Scale Divisions (Non-Commercial): 100 to 240,000
Scale Divisions (Canada): 100 to 10,000 (Class III/IIIHD)
Scale Divisions (OIML): 100 to 10,000 (Class III)
Resolution: 1 part in 16,777,216
Tare Capacity: Scale Capacity
Sample Rate: 1 to 100 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Weighing Units: Tons, Pounds, Ounces, Metric Tons, Kilograms, Grams
Keypad: Color coded Membrane type, 22 keys
Standard I/O: (1) bi-directional RS232 (20mA), (1) output only RS232 (20mA)
Shipping Weight: 17 lb / 8 kg
NTEP Approval: 01-011A4
OIML: R76/1992-DK1-01.02
Enclosure IP Rating: IP66
