211 Master Belt Scale Weigh Frame

$0.00

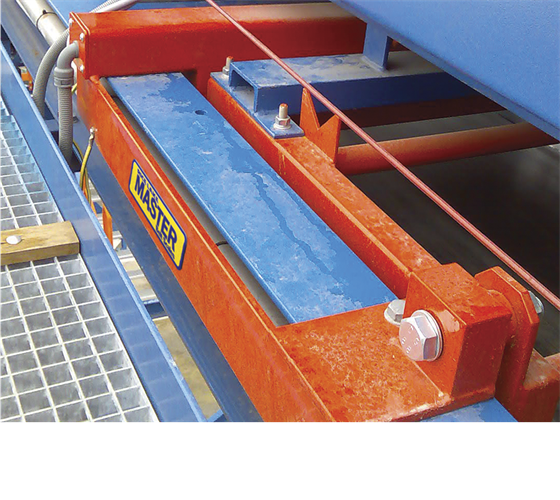

211 Master belt scale weigh frame consists of an inner frame mounted in two friction-free pivots, creating a solid weighing frame ideally suited for heavy-duty applications.

Download product PDF
Categories: ,

Features

The 211 model consists of an inner frame that is mounted in two friction-free pivots on one end and at a load cell on the other end. An idler is mounted on the inner frame. The pivots absorb the tensile stress in horizontal direction, creating a very solid weighing frame that is also suited for heavy-duty applications.

  • Friction-free pivot points
  • One load cell carrier beam
  • Fits standard conveyors
  • Custom built for each application

Specifications

Conveyor Width:
20 in to 80 in (500 mm to 2,000 mm)

Capacity:
3,000 tons per hour

Maximum Belt Speed:
800 feet per minute (4 m/s)

Maximum Inclination:
25 degrees

Material:
Powder coated mild steel

Accuracy System:
0.5 %

Load Cell:
RL20001 alloy steel, s-beam (capacity selected from application)

Warranty:
One-year limited warranty

Options

<li304/316 stainless steelss

<liDual load cellss

<liDual idlers

<liCustom lifting weights available on requests
