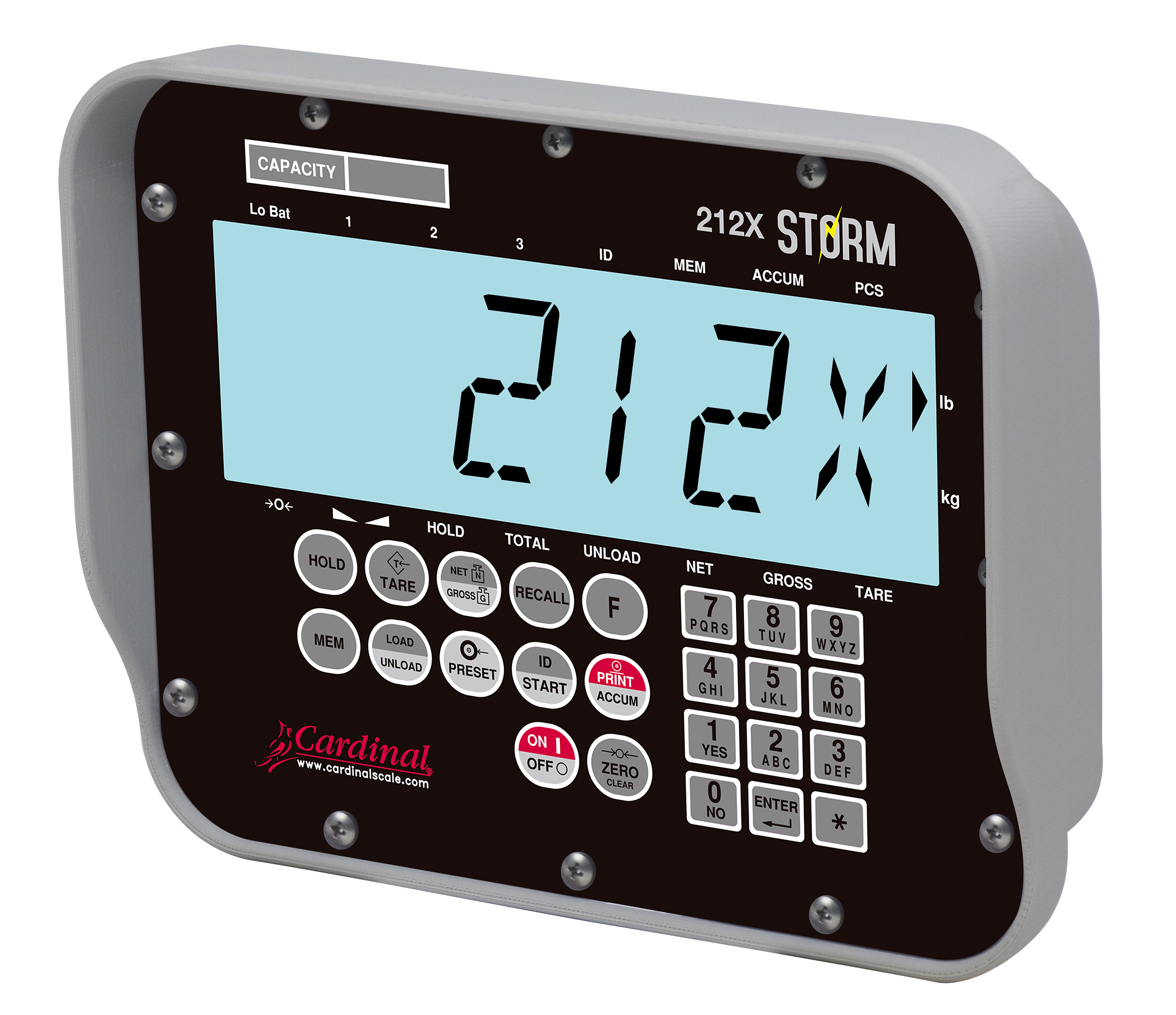

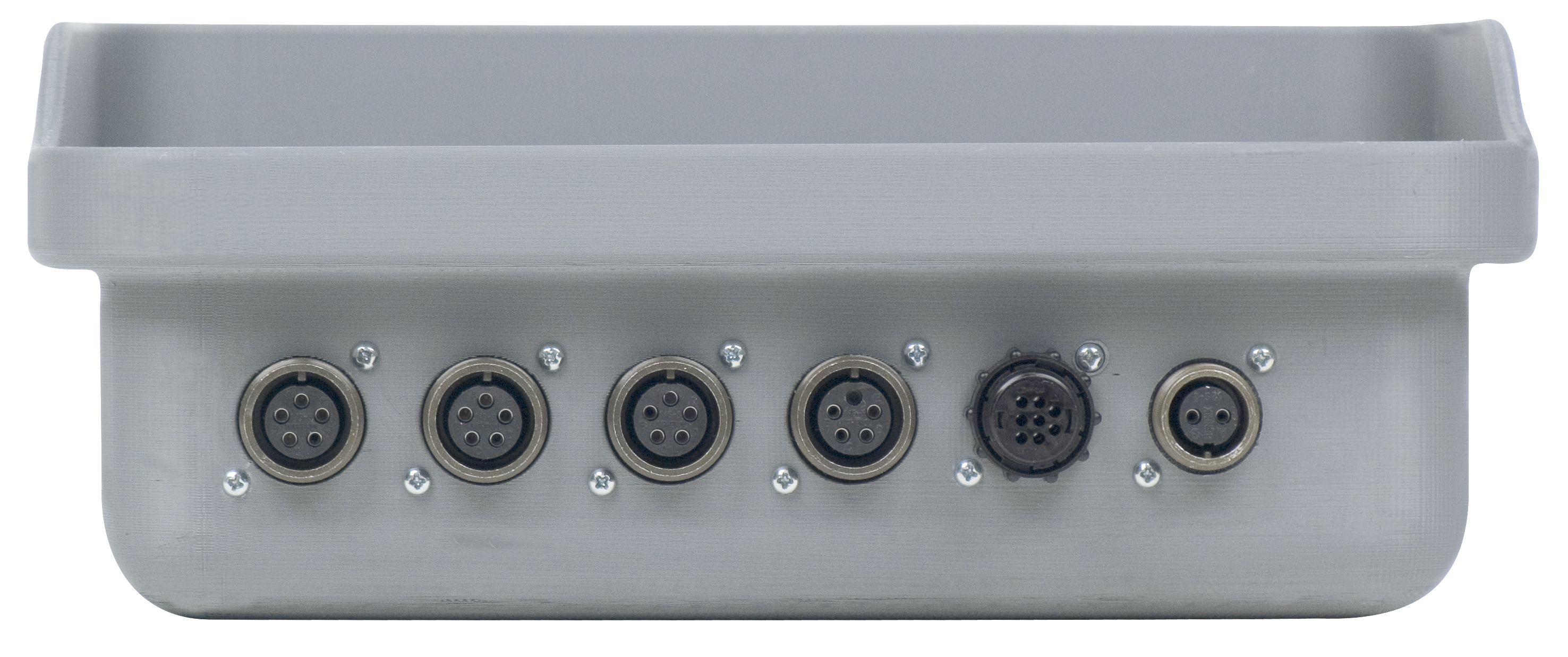

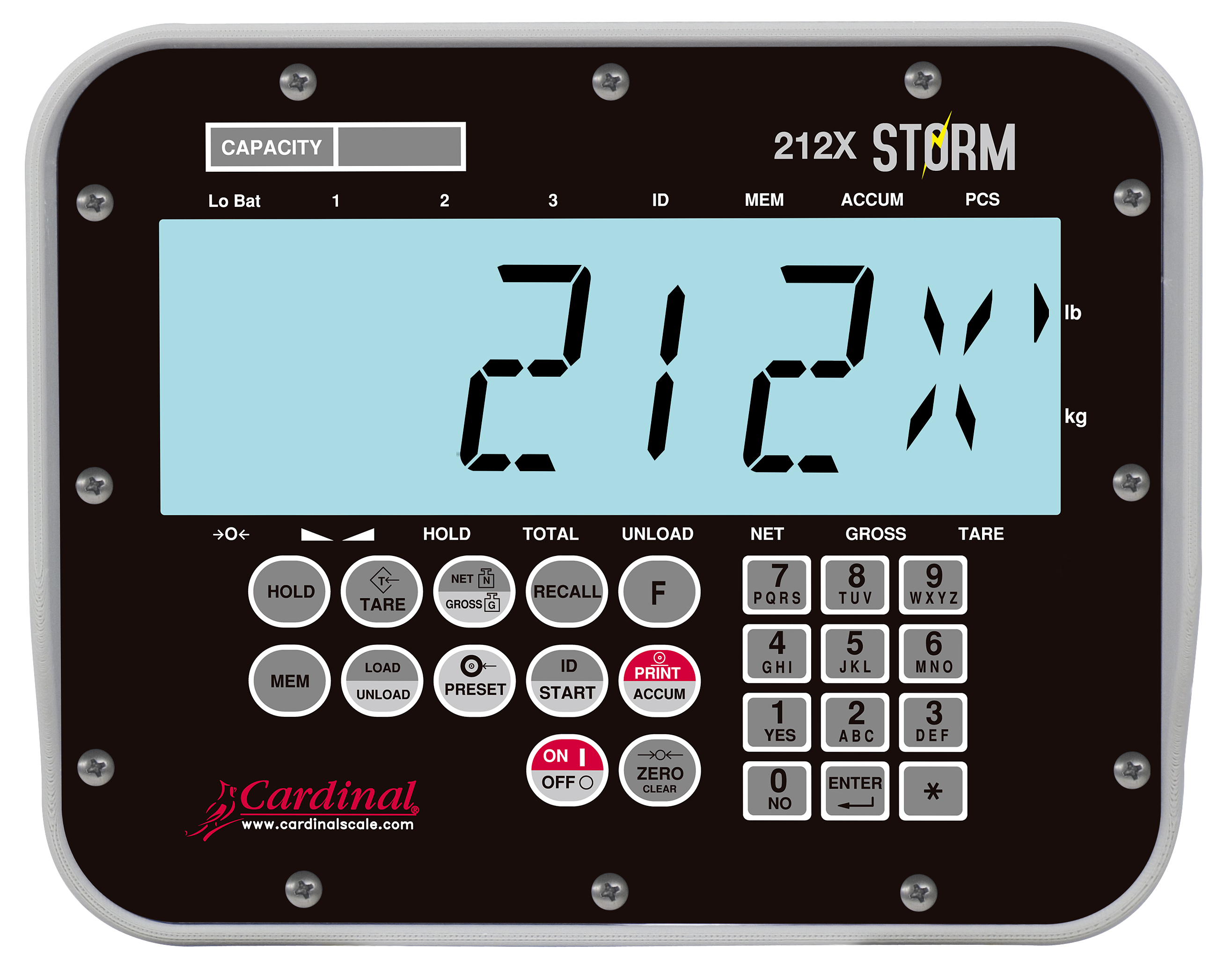

The Cardinal Scale 212X Storm indicators are designed for non-commercial agricultural weighing applications and are equipped with a polycarbonate enclosure featuring rear shock absorber mounts combined with a 2-inch/51 mm high back-lit LCD. Features include remote inputs for Start, Zero/Clear, Print, Tare and 2XX-KEYFOB functions, numeric keypad, a count feature with accumulator, 3 Preset Weight Comparators (PWCs), plus digital fill control with Load or Unload operation and 100 ID locations including Load Count and Net Weight. Supports up to 8 350-ohm load cells
Power: 12VDC (10.5-14.4VDC) using an external battery
Enclosure Type: Polycarbonate (with quick-detach mounting bracket) Enclosure Size: 9.0 in H x 11.2 in W x 4.3 in D (229 mm H x 284 mm W x 109 mm D) Shipping Weight: 12 lbs / 5.4 kg Operating Environment: -4 to 158 ?F (-20 to +70 ?C) Display: 6 digit, 15 segment, 2 in high backlit, transflexive LCD, 18 annunciators Excitation: 8VDC Signal Input Range: 1.0 mV min. to 40 mV max. (with dead load boost) Number of Load Cells: 8 each, 350 OHM minimum resistance Division Value: 0 to 99 Sensitivity: 0.15uV/e Scale Divisions: 100 to 240,000 Internal Resolution: 1 part in 16,777,216 Tare Capacity: Scale Capacity Sample Rate: 1 to 100 samples per second, selectable Auto Zero Range: 0.5 or 1 through 9 divisions Weighing Units: Pounds / Kilograms Keypad: Color coded Membrane type, 24 keys Standard I/O: (1) bi-directional RS232, (1) output only 20mA NTEP Approval: 01-011A4 Enclosure IP Rating: IP66
Options
212DESKMOUNT
Mounting Kit: Desktop Gimbal
212vmount
Mounting Kit: V-Mount 212 Series
AGDC12
Cable, Power, Battery, 12?
AGDC18
Cable, Power, Battery, 18?
AGDC6
Cable, Power, Battery, 6?
AGJBOX4
J-Box, 4 Load Cell Connection, Homerun Gland
AGLC12
Cable, Load Cell, 12?
AGLC17
Cable, Load Cell, 17?
AGLC25
Cable, Load Cell, 25?
AGLCMATE
Connector, Load Cell Mating
AGPS
AC ADAPTER 100-240VAC/12DC @ 1AMP
AGPWRMATE
Connector, Power Mating
AGSIO
Cable, I/O, 12?
AGSIOBOX
J-BOX, I/O, 12? Cable
AGVBRCKT
Bracket, 212 Wall V Mount
RB3
Relay Box, 3 Relays, Normally Open, 4 -15 VDC In, 20-280 VAC Out
RB4-ACIN
Relay Box, 4 Relays, Normally Open, 115VAC In
RB4-ACINV
Relay Box, 4 Relays, Normally Open, 230 VAC In
RB4-ACOUT
Relay Box, 4 Relays, Normally Open, 3A, 24-280 VAC Out
