212/212X Storm

$0.00

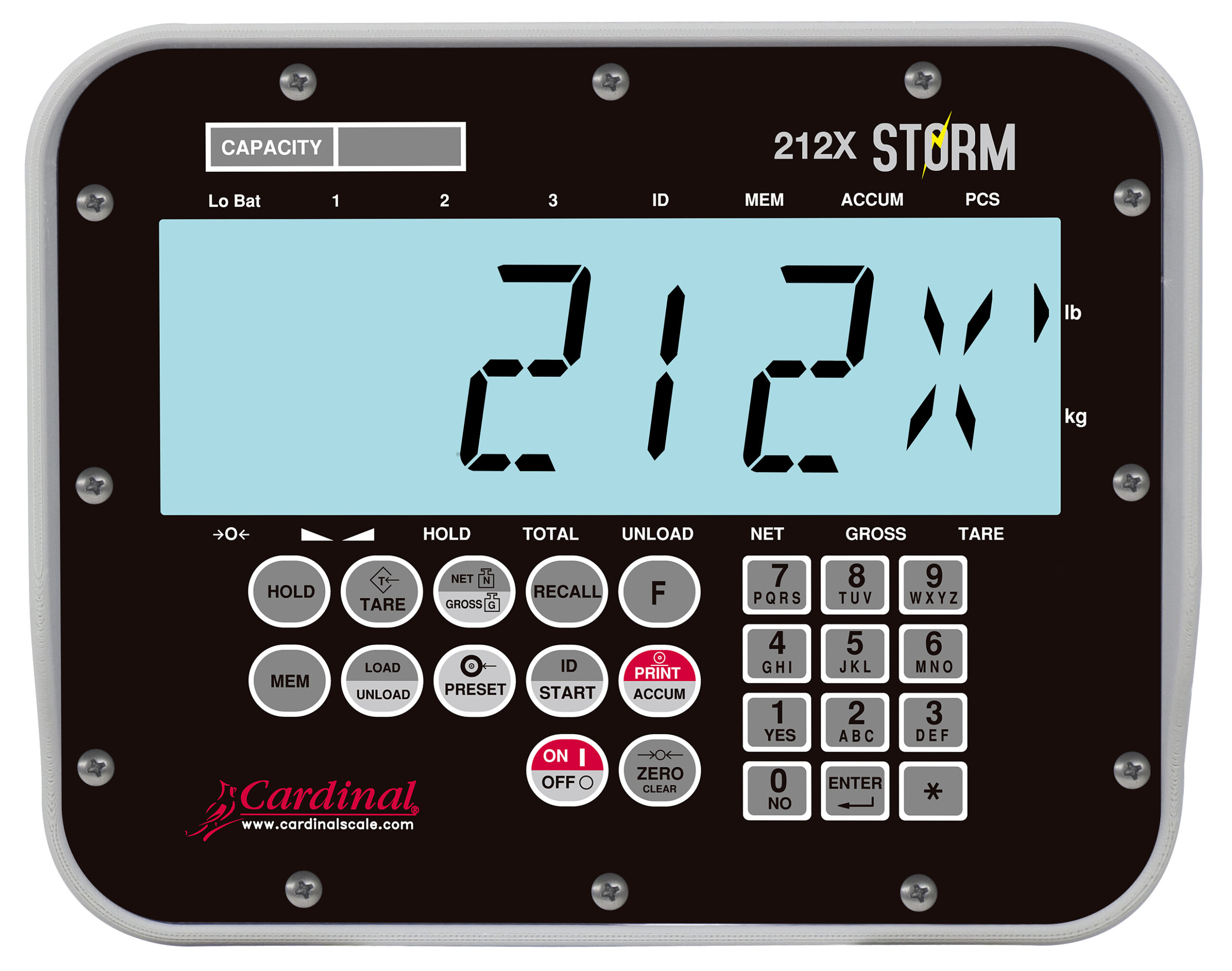

The Cardinal Scale 212X Storm indicators are designed for non-commercial agricultural weighing applications and are equipped with a polycarbonate enclosure featuring rear shock absorber mounts combined with a 2-inch/51 mm high back-lit LCD. Features include remote inputs for Start, Zero/Clear, Print, Tare and 2XX-KEYFOB functions, numeric keypad, a count feature with accumulator, 3 Preset Weight Comparators (PWCs), plus digital fill control with Load or Unload operation and 100 ID locations including Load Count and Net Weight. Supports up to 8 350-ohm load cells

Download product PDF
Category:

Features

  • 3 Preset Weight Comparators
  • Agricultural Products
  • Digital Fill Control
  • Ideal for Mobile Weighing
  • IP66 Enclosure Rating

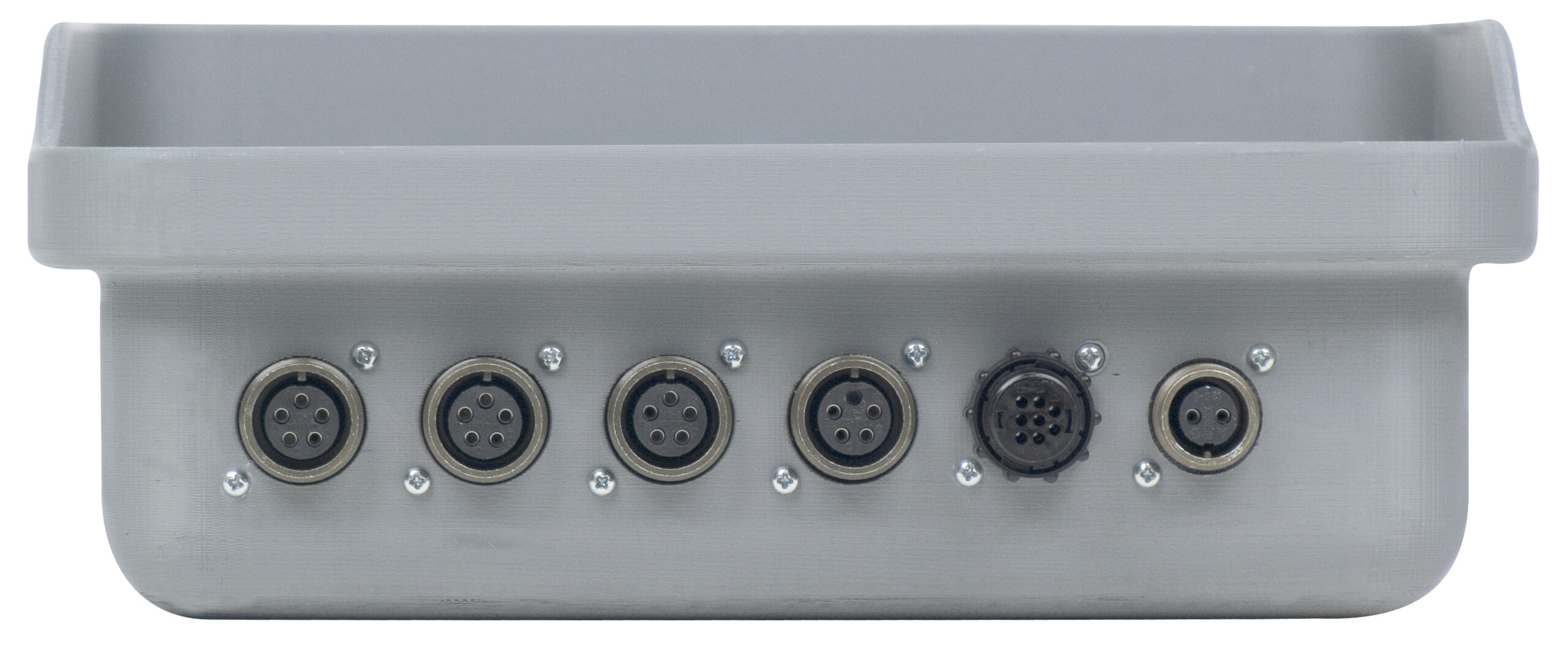

  • No Junction Box Required
  • Rear Shock Absorber Mounts
  • Rugged Polycarbonate Enclosure

Specifications

Power: 12VDC (10.5-14.4VDC) using an external battery
Enclosure Type:
 Polycarbonate (with quick-detach mounting bracket)
Enclosure Size: 9.0 in H x 11.2 in W x 4.3 in D (229 mm H x 284 mm W x 109 mm D)
Shipping Weight: 12 lbs / 5.4 kg
Operating Environment: -4 to 158 ºF (-20 to +70 ºC)
Display: 6 digit, 15 segment, 2 in high backlit, transflexive LCD, 18 annunciators
Excitation: 8VDC
Signal Input Range: 1.0 mV min. to 40 mV max. (with dead load boost)
Number of Load Cells: 8 each, 350 OHM minimum resistance
Division Value: 0 to 99
Sensitivity: 0.15uV/e
Scale Divisions: 100 to 240,000
Internal Resolution: 1 part in 16,777,216
Tare Capacity: Scale Capacity
Sample Rate: 1 to 100 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Weighing Units: Pounds / Kilograms
Keypad: Color coded Membrane type, 24 keys
Standard I/O: (1) bi-directional RS232, (1) output only 20mA
NTEP Approval: 01-011A4
Enclosure IP Rating: IP66

Options

212DESKMOUNT Mounting Kit: Desktop Gimbal Call For Pricing
212vmount Mounting Kit: V-Mount 212 Series Call For Pricing
AGDC12 Cable, Power, Battery, 12′ Call For Pricing
AGDC18 Cable, Power, Battery, 18′ Call For Pricing
AGDC6 Cable, Power, Battery, 6′ Call For Pricing
AGJBOX4 J-Box, 4 Load Cell Connection, Homerun Gland Call For Pricing
AGLC12 Cable, Load Cell, 12′ Call For Pricing
AGLC17 Cable, Load Cell, 17′ Call For Pricing
AGLC25 Cable, Load Cell, 25′ Call For Pricing
AGLCMATE Connector, Load Cell Mating Call For Pricing
AGPS AC ADAPTER 100-240VAC/12DC @ 1AMP Call For Pricing
AGPWRMATE Connector, Power Mating Call For Pricing
AGSIO Cable, I/O, 12′ Call For Pricing
AGSIOBOX J-BOX, I/O, 12′ Cable Call For Pricing
AGVBRCKT Bracket, 212 Wall V Mount Call For Pricing
RB3 Relay Box, 3 Relays, Normally Open, 4 -15 VDC In, 20-280 VAC Out Call For Pricing
RB4-ACIN Relay Box, 4 Relays, Normally Open, 115VAC In Call For Pricing
RB4-ACINV Relay Box, 4 Relays, Normally Open, 230 VAC In Call For Pricing
RB4-ACOUT Relay Box, 4 Relays, Normally Open, 3A, 24-280 VAC Out Call For Pricing
RB4-DCIN Relay Box, 4 Relays, Normally Open, 3.3 – 32 VDC In Call For Pricing
RB4-DCOUT Relay Box, 4 Relays, Normally Open, 3 – 60 VDC Out Call For Pricing
RB8-OPTO Relay Box, 8 Sockets for Optional Relay Modules Call For Pricing
RF1 Transceiver, Wireless, Short Range, Pair Call For Pricing
S2E1 Option: Converter, Serial to Ethernet Call For Pricing
SFG1 Option: Serial, Fiber Optic Transceiver, Glass Call For Pricing
SFP1 Option: Serial, Fiber Optic Transceiver, Plastic Call For Pricing

Models

212X-1S Weight Indicator, 2″ LCD, 24 Key, Poly Carbonate, 1 Load Cell Call For Pricing
212X-4S Weight Indicator, 2″ LCD, 24 Key, Poly Carbonate, 4 Load Cell Call For Pricing
