The rugged polycarbonate enclosure makes Cardinal?s NTEP legal-for-trade 212G series weight indicators perfect for a wide range of weighing applications, whether it?s a simple bench scale, livestock scale, heavy-duty floor scale, or even a tank/hopper load cell application. These indicators feature digital fill control, 25 single IDs, push-button Gross, Tare, Net conversion, flexible print formats, selectable weight units, alphanumeric keypad, tare, checkweighing, time and date, livestock weighing functions, and eight preset weight comparators (PWCs). Four bi-directional RS232 serial ports provide easy connectivity to remote displays, label or ticket printers, or PCs. The 212G offers USB-B standard and USB-A optional connectivity. The 0.8 or 2 inch high LCD is visible in direct sunlight. Supports up to 8 350-ohm load cells.
Power: 100 to 240 VAC (50/60 Hz) at 0.4A Max

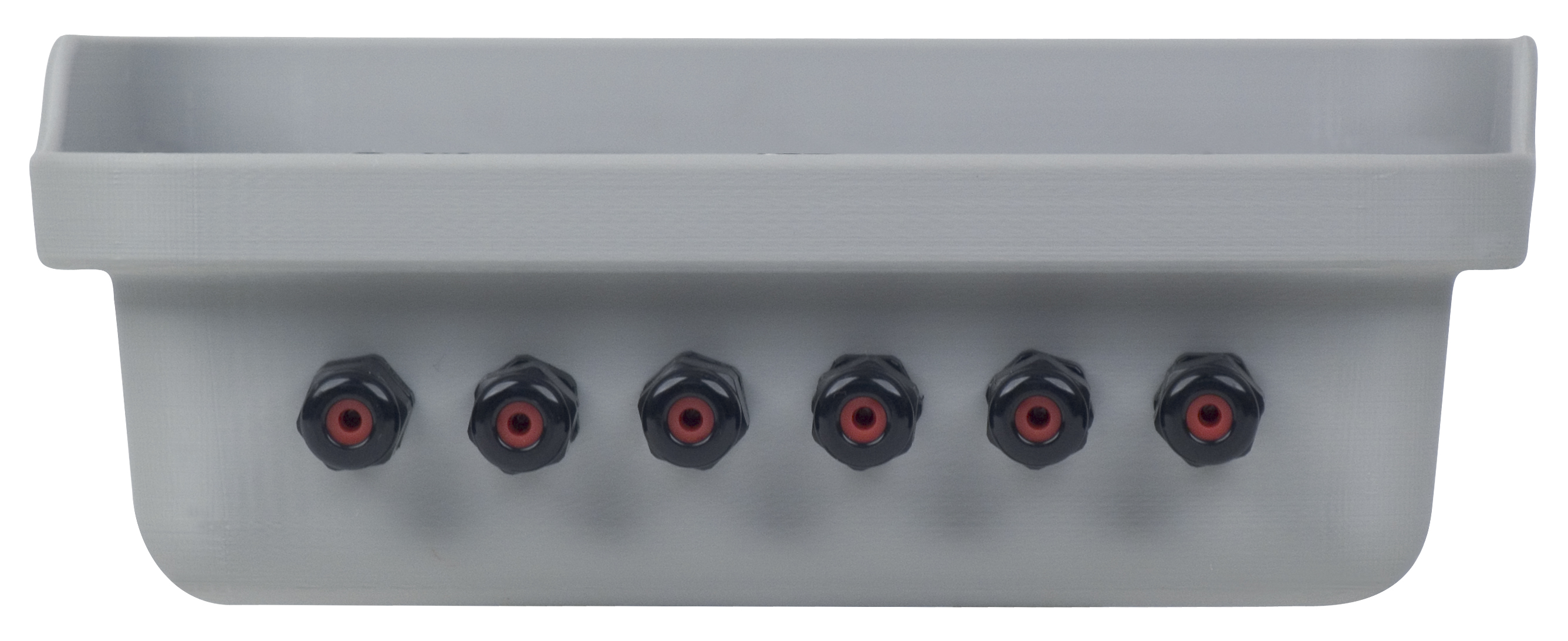

Enclosure Type: Polycarbonate
Enclosure Size: 9.0 in H x 11.2 in W x 4.3 in D (229 mm H x 284 mm W x 109 mm D)
Shipping Weight: 12 lbs / 5.4 kg
Operating Environment (Commercial): Temperature: 14 to 104 ?F (-10 to +40 ?C)
Operating Environment (Non-Commercial): Temperature: -4 to 158 ?F (-20 to +70 ?C)
Humidity (maximum): 90% non-condensing
Display (212G): 12 digit, 15 segment, 0.8 in high LCD, 18 annunciators

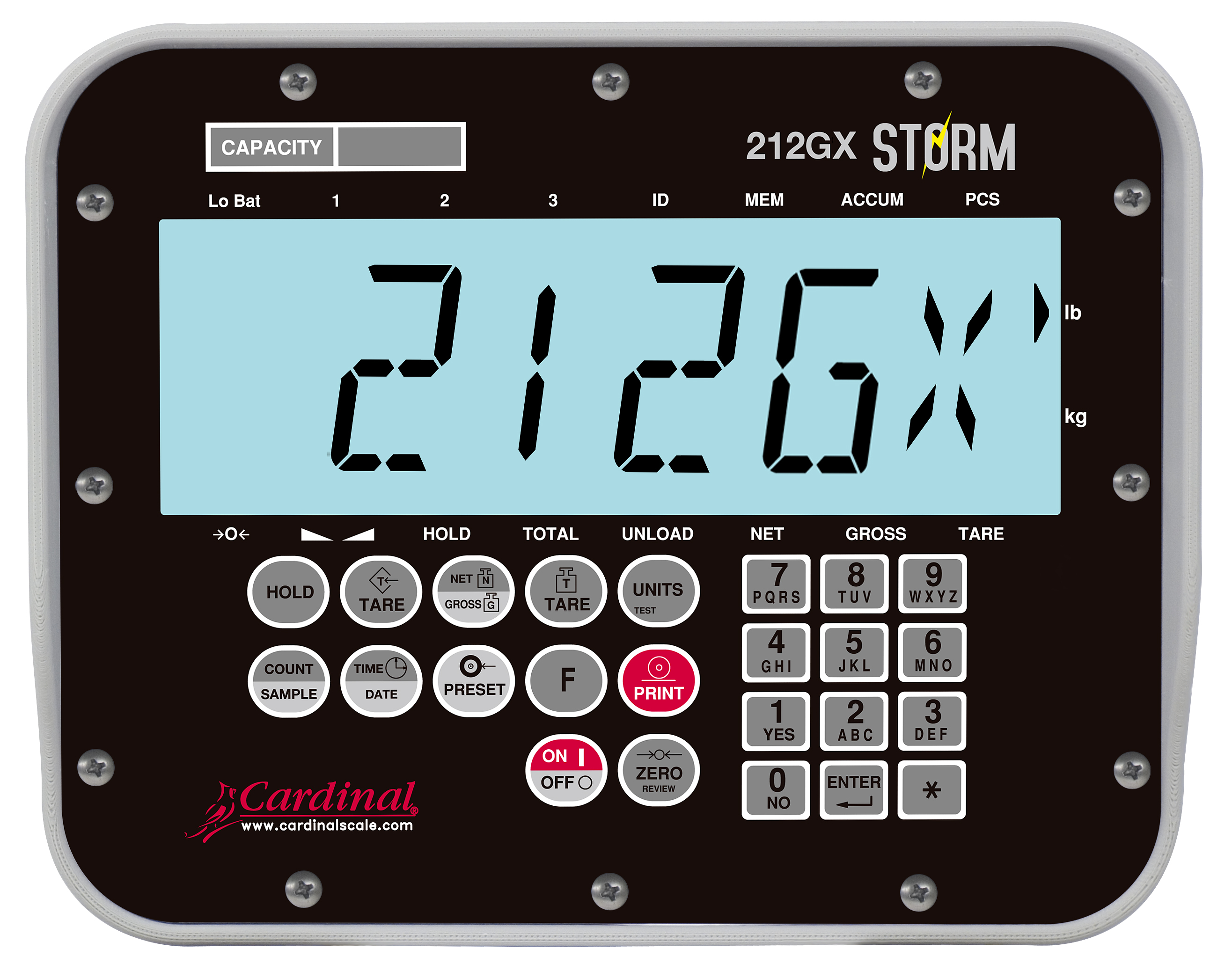

Display (212GX): 6 digit, 15 segment, 2 in high LCD, 18 annunciators
Excitation: 9.4 VDC
SIgnal Input Range: 1.0 mV min. to 40 mV max. (with dead load boost)
Number of Load Cells: 8 each, 350 OHM minimum resistance
Load Cell Cable Length: 1500 ft maximum. 30 ft maximum without sense lines, Consult factory for other requirements
Division Value (Commercial): 1, 2, or 5 x 10, 1, 0.1, 0.01, 0.001
Division Value (Non-Commercial): 0 to 99
Sensitivity (Commercial): 0.3uV/e (Class III/IIIL/IIIHD)
Sensitivity (Non-Commercial): 0.15 uV/e
Scale Divisions (Commercial): 100 to 10,000 (Class III/IIIL/IIIHD)
Scale Divisions (Non-Commercial): 100 to 240,000
Internal Resolution: 1 part in 16,777,216
Tare Capacity: Scale Capacity
Sample Rate: 1 to 100 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Weighing Units: Pounds / Kilograms
Keypad: Color coded Membrane type, 24 keys
Standard I/O: 4 ea serial I/O ports configured as 1 ea 20mA output-only ports (uses one of the four RS-232 ports), 1 ea bi-directional 20mA port (uses one of the four RS-232 ports), and 1 ea USB port (uses one of the four RS-232 ports), plus 8 ea remote isolated inputs and outputs
NTEP Approval: 01-0114A
Enclosure IP Rating: IP66
