220 Universal Mount Stainless Steel Weigh Module

$0.00

Ideal for Hopper and Batch Weighing

The 220 Universal Mount is designed to be used with the Vishay Tedea-Huntleigh Model 220 load cell. The mount incorporates built-in jacking bolts to prevent damage to the load cell during installation. Its stainless steel construction is designed to be used in the harshest of environments.

Applications

  • Medium- to high-capacity tanks, bins and hoppers
  • Washdown or corrosive applications
  • Process control and batch weighing
Download product PDF
Category:

Features

220 Universal Mount Stainless Steel Weigh Module

Complete Kit Includes

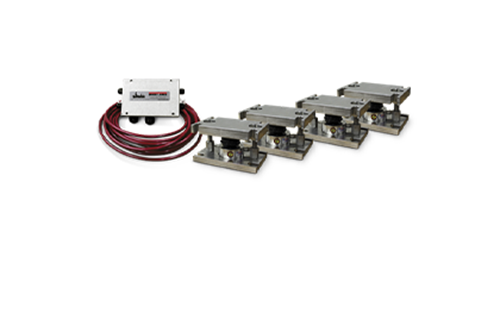

  • Three or four 220 stainless steel compression mounts with 220 stainless steel hermetically sealed compression disk load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 5,000 to 30,000 kg
  • mV/V/ohm calibrated load cells eliminates the need for trimming
  • Stainless steel construction
  • Easy load cell replacement
  • Integral jacking/shipping bolts

Specifications

Rated Capacity A B C D E H I J K
kg/mm
5,000 to 10,000 127.0 203.0 90.0 170.0 18.0 107.0 Load cell replacement height: 118.0
Operating height: 107.0		 19.1 25.4
20,000 to 30,000 152.0 245.0 115.0 208.0 24.0 148.0 Load cell replacement height: 156.0
Operating height: 148.1		 31.8 25.4
