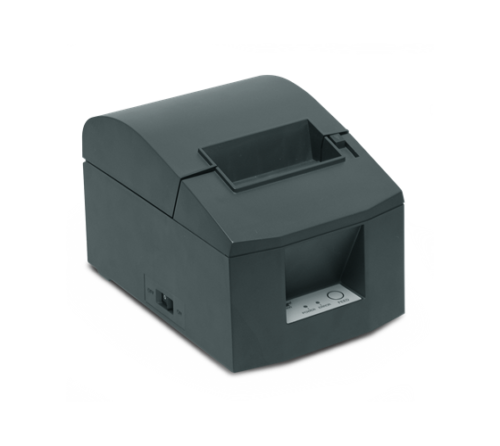

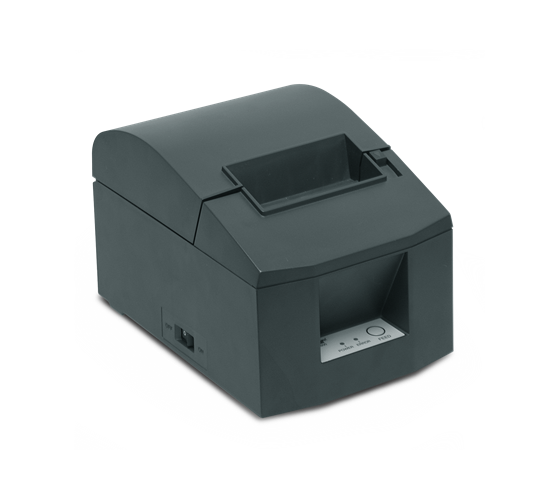

Star TSP654 ll/TSP743 ll Direct Thermal Printers

$0.00

Star TSP654 ll/TSP743 ll direct thermal printers are easy to use, with drop-in and print paper loading and easy-to-change cartridge type interface from RS-232 to parallel.

Download product PDF
Categories: ,

Features

  • 203 dpi (8 dots/mm) print resolution
  • Two-color printing (software enabled)
  • Small footprint
  • Easy load?”drop-in and print” paper loading
  • Adjustable paper width
  • Logo storage?utility for easy logo data
  • Drawer kickout device function
  • Cutter
  • Easy to change “cartridge-type interface” from?RS-232 to parallel
  • Swappable communication interface
TSP743
  • Label printing

Specifications

Print Speed:?
TSP654: 300 mm per second, 60 RPM
TSP743: 7 in (177.8 mm) per second, 60 lines per second at 3 mm per line
(180 mm/sec)

Print Width:
TSP654: 80 mm paper: 2.83 in (80 mm) 58 mm paper: 2.05 in (52 mm)
TSP743: Standard: 2.83 in (80 mm) Optional: 2.05 in (52 mm), 3.15 in (80 mm)

Line Spacing:
3 mm, 4 mm (1/8 in, 1/6 in)

Resolution:
203 dpi (8 dots/mm)

Number Of Columns:
TSP654: 80 mm paper: 24, 48 or optional 64 (ESC/POS) 58 mm paper: 17, 34 or optional 46 (ESC/POS)
TSP743: Standard: 48, 71 (maximum)

Bar Codes:
TSP654: UPC-A/E, JAN/EAN-8/13, Code 39/93/128, Codabar (NW7), ITF
TSP743: UPC-A/E, JAN/EAN-8/13, Code 39/93/128, Codabar (NW7)

Paper Width:
Adjustable. Standard: 3.15 in (80 mm) Optional: 2.28 in (58 mm)
TSP743 Optional: 3.25 in (82.5 mm)

Paper Thickness:
TSP654: 0.002 in to 0.003 in (0.065 mm to 0.085 mm)
TSP743: 0.003 in to 0.006 in (0.065 mm to 0.150 mm)

Roll Diameter:
3.5 in (90 mm)

Paper Roll Core:
1/2 in to 1.00 in (12 mm to 25.4 mm)

Paper Path:
TSP654: Internal roll
TSP743: Slot in rear or internal roll

Paper Loading:
?Drop-in and print? and external rear feed

Paper Sensors:
TSP654: Near end, paper out, cover open
TSP743: Near end, paper out, top of form

Printer Reliability:
60 million lines MCBF (CRT)

Cutter Reliability:
TSP654: 0.5 million cuts
TSP743: 2 million cuts

Data Buffer:
8K bytes

Logo Store:
TSP654: 2 M bit
TSP743: 4 M bit

Emulation:
Star line mode, ESC/POS? (TM-U295/TM290)

Drawer Kickout Device Function:
2 drivers

Auto Cutter:
Full and partial cut

Drivers:
Windows 95/98/2000/NT 4.0, Windows legacy printer, OPOS, JavaPOS?,
Star Raster Graphics Mode, Linux

Operating Temperature:
41? F to 113? F (5? C to 45? C)

Humidity:
10% to 90% RH (with out condensation)

Overall Dimensions:
TSP654: (W xH x D): 5.59 x 5.16 x 7.83 in
(142 x 131 x 199 mm)
TSP743: (W x H x D): 5.79 x 5.83 x 8.39 in
(147 x 148 x 213 mm)

Appovals:
UL and C-UL listed, FCC, TUV

Warranty:
Three-year limited warranty on parts
One-year limited warranty on print head and cutter

Options

Part #15547 Product DescriptionCable,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White
Part #15568 Product DescriptionCable,Kit 25 Pin RS232 IDS SP 25 Pin D-Sub Male To 25 Pin D-Sub Male
Part #72440 Product DescriptionCable,RS232 Straight 25 Pin D SUB Male to 9 Pin D SUB Female, Pinout: 2 to 2, 3 to 3, 5 to 7 G, RTS to DSR, DSR to DTR
Part #69903 Product DescriptionPower Supply,Star SP298 SP500, TSP743, TSP654, TUP592, NP-2511, NP-3511 Star PS60-24A 24VDC Universal For All Star Printers Except DP8340
Part #69917 Product DescriptionPaper Roll,Thermal Star TSP700, TSP600, 3.125″ Wide x 3.25″ Dia 7/16 Core 295 Foot Rolls
Part #107041 Product DescriptionPaper,MaxStick 3 1/8IN 150FT Long, 1.0IN ID, Receipt Paper with Adhesive Strip
Part #72309 Product DescriptionPower Supply,Star 12VDC Vehicle Cigarette Lighter Plug 12VDC Input and Star Compatible Connector 24VDC Output
Part #71355 Product DescriptionPrinter OPT,Parallel Star TSP743 TUP592
Part #69919 Product DescriptionBracket,Wall Mount TSP700 Series Star
Part #70598 Product DescriptionLabel,Roll DTL 3.00×1.00 4″ Dia. 1600 per Roll w/ Blackline Timing Mark on Liner Star
Part #70597 Product DescriptionLabel,Roll DTL 3.00×2.00 4″ Dia. 900 per Roll w/ Blackline Timing Mark on Liner Star
Part #72471 Product DescriptionCD,Star Printer Programmers Manuals, Software Utilities, Printer Drivers

Models

Part #?69910 Product DescriptionPrinter,Thermal TSP654II Star Direct Thermal, RS232, Power Supply
Part #?69907 Product DescriptionPrinter,Thermal TSP743II Direct Thermal, RS232 w/Power Supply
Part #?69908 Product DescriptionPrinter,Thermal TSP743II Direct Thermal, RS232 Printer, w/o Power Supply
Part #?85929 Product DescriptionPrinter,Thermal TSP743II Direct Thermal, Parallel, w/o Power Supply
