Features
- 200 ID’s
- 240 x 64 Pixel LCD
- 4 Soft Keys
- Alphanumeric Keypad
- Electronic Tally Roll
- IP66 Enclosure Rating
- Navigation Keys
- NTEP Legal for Trade
- OIML Certified
- Powers up to 14 Load Cells
225 Navigator
$0.00

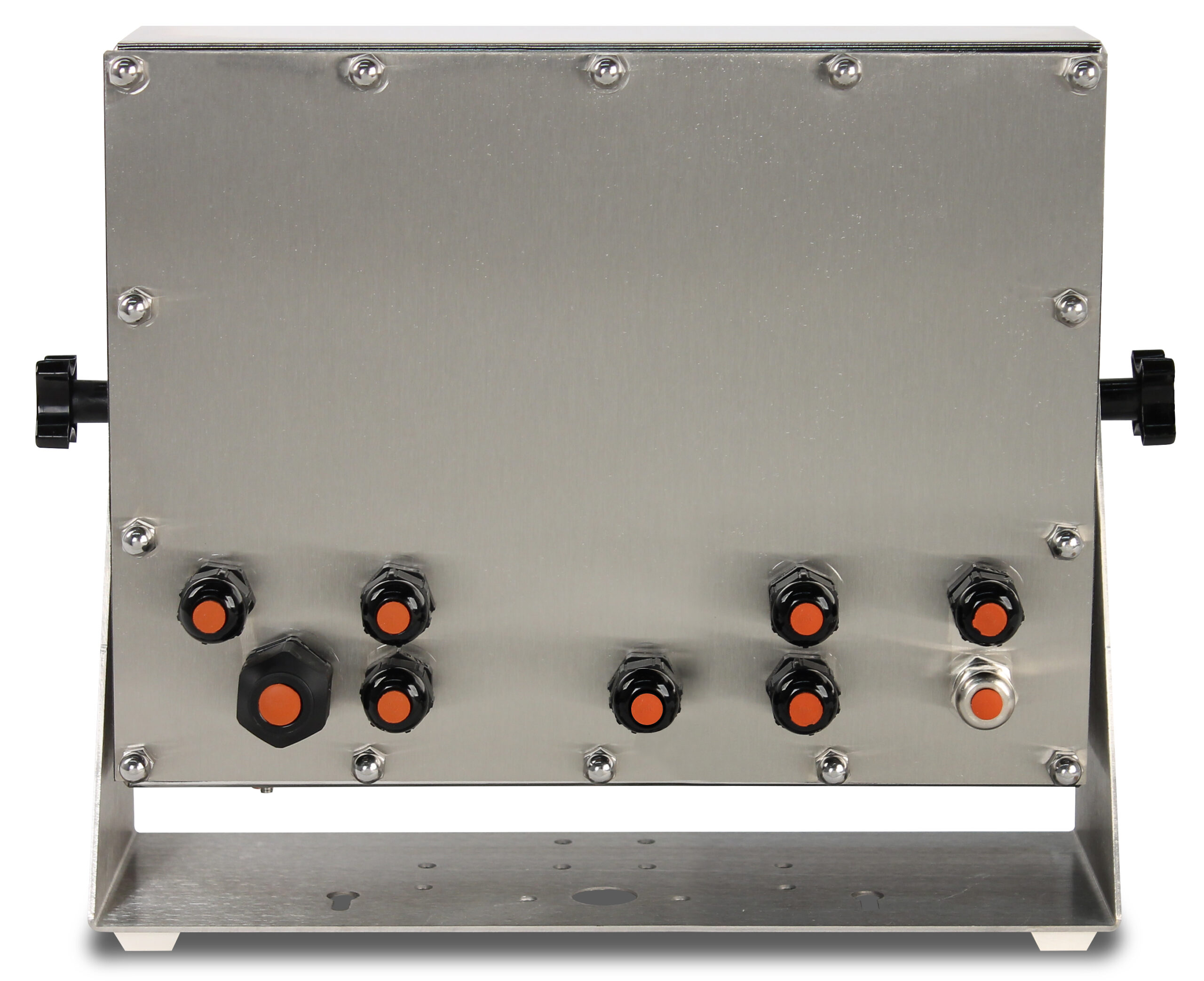

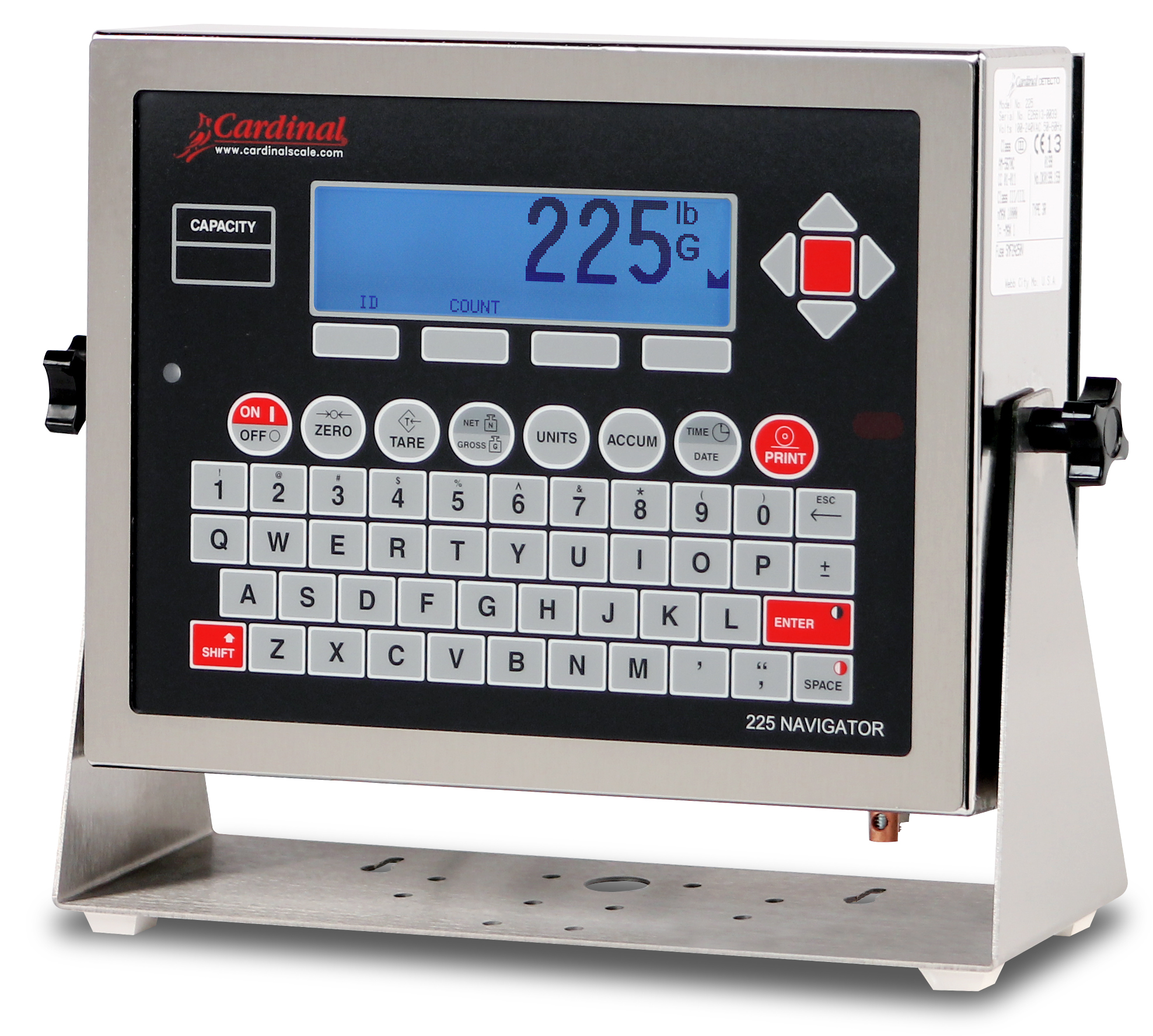

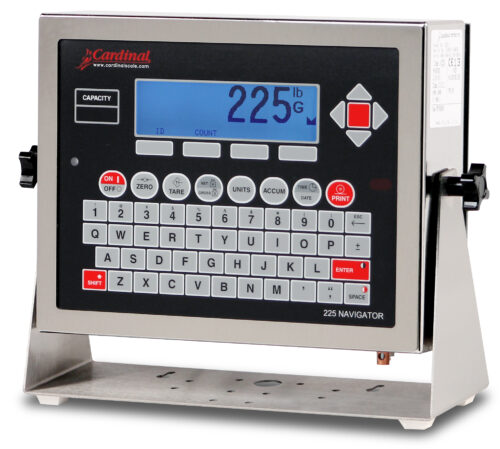

The 225 Navigator weight indicator’s transflective display technology allows the 240 x 64-pixel (5-inch/127 mm W x 1.33-inch/34 mm H) back-lit LCD with 1-inch high characters to be viewed under any lighting conditions from direct sunlight to total darkness. With an optional dual scale input board, up to 3 scales with total weights can be viewed simultaneously. Standard features include IP66 washdown stainless steel enclosure, 4 bi-directional RS232 serial ports, USB-B port, QWERTY keypad, 4 soft keys, 13 function keys, navigation keys, 16 Preset Weight Comparators (PWCs), 8 input control lines, 16 output control lines, piece count, batching, electronic tally roll, and 200 ID database for truck storage. NTEP legal-for-trade and OIML certified. Supports up to 14 350-ohm load cells.
Specifications
Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max.
Enclosure Type: Stainless steel wall or desk-mount
Enclosure Size: 10.8 in W x 3.2 in D x 8.3 in H / 275 mm W x 80 mm D x 210 mm H
Weight: 9.2 lb / 4.2 kg (Size and Weight does not include mounting bracket stand)
Operating Temperature: 14º to 104º F (-10º to +40º C)
Operating Humidity: 90% non-condensing (maximum)
Display: 240 x 64 pixel (5 in W x 1.33 in H / 127 mm W x 34 mm H) monochrome graphics LCD with white LED backlight
Annunciators: Zero, ID, mem, stable, accum, max, over, under, accept, 16 preset weight comparators
Keypad: 60 key color-coded keypad with QWERTY keys plus four soft keys and 13 function keys
Transducer Excitation: 12VDC
Signal Input Range: 1.0 mV min. to 40 mV max. (with dead load boost)
Scales: 1 each standard, 3 each with optional 225-DS dual scale input board
Number of Load Cells: 14 each, 350 OHM minimum resistance
Load Cell Cable Length: 1,500 feet maximum with sense lines – 30 feet maximum without sense lines
Division Value Commercial: 1, 2, or 5 x 10, 1, 0.1, 0.01, 0.001 and 0.0001
Division Value Non-Commercial: 0 to 99
Sensitivity – Non-Commercial: 0.15 uV/e
Sensitivity – NTEP: 0.3uV/e (Class III/IIIL)
Sensitivity – Canada: 0.3uV/e (Class III/IIIHD)
Sensitivity – OIML: 0.7 uV/e (Class III)
Scale Divisions – Non-Commercial: 100 to 240,000
Scale Divisions – NTEP: 100 to 10,000 (Class III/IIIL)
Scale Divisions – Canada: 100 to 10,000 (Class III/IIIHD)
Scale Divisions – OIML: 100 to 10,000 (Class III)
Internal Resolution: 1 part in 16,777,216
Tare Capacity: Six digits (999,999)
Sample Rate: 1 to 100 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Weighing Units: Tons, Pounds, Ounces, Tonnes (Metric Tons), Kilograms, Grams, Custom
Standard I/O: 4 each serial I/O ports configured as: 3 each bi-directional RS-232 ports or 2 each 20mA output-only ports, 1 each USB-B port, 1 each bi-directional 20mA port, 8 each remote isolated inputs, and 16 each remote isolated outputs
IDs: 200 permanent truck storage IDs and 200 temporary truck storage IDs
Options
 |
225-DLC | Option: 225 Digital Load Cell Interface Card | Call For Pricing | ||
 |
225-DS | Option: 225 Dual Scale Card | Call For Pricing | ||
 |
225-PANEL | Option: 225 Panel Mount Kit | Call For Pricing | ||
 |
225-SNAP | Weight Indicator, 225, SnapStream | Call For Pricing | ||
 |
225CANG | Option: 225 Can Bus Interface, Fiber Optic, Glass | Call For Pricing | ||
|
225CANP | Option: 225 Can Bus Interface, Fiber Optic, Plastic | Call For Pricing | ||
 |
2XX-DAC | Option: 2XX Analog Output Card | Call For Pricing | ||
 |
2XX-EIP | Option: 2XX Anybus-S Ethernet/IP | Call For Pricing | ||
 |
2XX-IP | Option: 2XX Ethernet Interface | Call For Pricing | ||
 |
2XX-MODBUSTCP | Option: 2XX Modbus TCP/IP | Call For Pricing | ||
 |
2XX-RS232 | Option: 2XX Serial Card | Call For Pricing | ||
 |
2XX-SFG | Option: 2XX Serial Fiber Optic, Glass | Call For Pricing | ||
 |
2XX-SFP | Option: 2XX Serial Fiber Optic, Plastic | Call For Pricing | ||
 |
2XX-USBA | Option: USB-A Card, 2 USB-A Ports , One Micro SD Port | Call For Pricing | ||
 |
6600-0623 | Modem, Short Haul | Call For Pricing | ||
 |
6600-2006 | External Waterproof Port, USBA Male to USBA Female Cable 1.6 ft/.5 M Long | Call For Pricing | ||
 |
DCPOWER | DC Power Adapter | Call For Pricing | ||
 |
RB3 | Relay Box, 3 Relays, Normally Open, 4 -15 VDC In, 20-280 VAC Out | Call For Pricing | ||
 |
RB4-ACIN | Relay Box, 4 Relays, Normally Open, 115VAC In | Call For Pricing | ||
 |
RB4-ACINV | Relay Box, 4 Relays, Normally Open, 230 VAC In | Call For Pricing | ||
 |
RB4-ACOUT | Relay Box, 4 Relays, Normally Open, 3A, 24-280 VAC Out | Call For Pricing | ||
|
RB4-DCIN | Relay Box, 4 Relays, Normally Open, 3.3 – 32 VDC In | Call For Pricing | ||
 |
RB4-DCOUT | Relay Box, 4 Relays, Normally Open, 3 – 60 VDC Out | Call For Pricing | ||
 |
RB4C | Relay Box, 4 Form-C (SPDT) Relays, 3A, 24-280 VAC/VDC Out | Call For Pricing | ||
 |
RB8-ACIN | Relay Box, 8 Relays, Normally Open, 115 VAC In | Call For Pricing | ||
|
RB8-ACINV | Relay Box, 8 Relays, Normally Open, 230 VAC In | Call For Pricing | ||
|
RB8-ACOUT | Relay Box, 8 Relays, Normally Open, 3A, 24-280 VAC Out | Call For Pricing | ||
 |
RB8-OPTO | Relay Box, 8 Sockets for Optional Relay Modules | Call For Pricing | ||
 |
RB9 | Relay Box, 9 Relays, Normally Open, 4 -15 VDC In, 20-280 VAC Out | Call For Pricing | ||
 |
RF1 | Transceiver, Wireless, Short Range, Pair | Call For Pricing | ||
 |
S2E1 | Option: Converter, Serial to Ethernet | Call For Pricing | ||
 |
SFG1 | Option: Serial, Fiber Optic Transceiver, Glass | Call For Pricing | ||
 |
SFP1 | Option: Serial, Fiber Optic Transceiver, Plastic | Call For Pricing |
