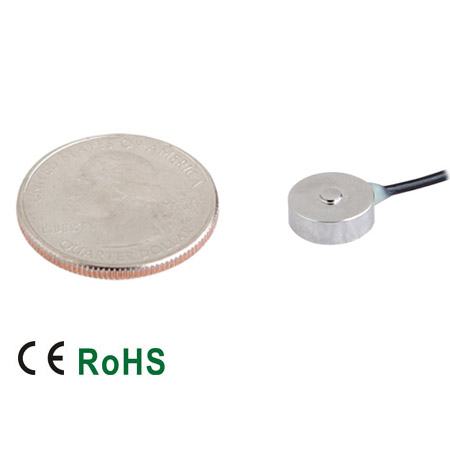

247ASLH Load Button
$0.00
- Material: Stainless steel
- Rated Capacities: 10kg, 25kg, 50kg, 100kg, 250kg, 500kg, 1t, 2t, 5t, 10t
- Full Scale Output: Cap. ≤ 10kg: 1.0mV/V ± 20%; Cap. > 10kg: 2.0mV/V ± 20%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP66
Download product PDF
Specifications
Rated Capacity |
10kg, 25kg, 50kg, 100kg, 250kg, 500kg, 1t, 2t, 5t, 10t |
Full Scale Output |
Cap. ≤ 10kg: 1.0mV/V ± 20%; Cap. > 10kg: 2.0mV/V ± 20% |
Zero Balance |
CAP≤10kg: ±0.03mV/V CAP>10kg: ±0.04mV/V |
Non-linearity |
< ± 0.5% |
Repeatability |
< ± 0.5% |
Hysteresis Error |
< ± 0.5% |
Creep in 30 minutes |
< ± 0.5% |
Input Resistance |
Cap. ≤ 500kg: 375Ω ±25Ω; Cap. > 500kg: 700Ω ±25Ω |
Output Resistance |
Cap. ≤ 500kg: 350Ω ±3Ω; Cap. > 500kg: 700Ω ±3Ω |
Recommended Excitation |
Cap. ≤ 10kg: 5V (7V Maximum); Cap. > 10kg: 10V (15V Maximum) |
Insulation Resistance |
> 2GΩ (50V DC) |
Nominal Temperature Range |
–10°C to 40°C/14°F to 104°F |
Safe Overload |
150% of full scale |
Breaking Overload |
300% of full scale |
Seal Type |
Environmentally sealed |
IP Rating |
IP66 |
