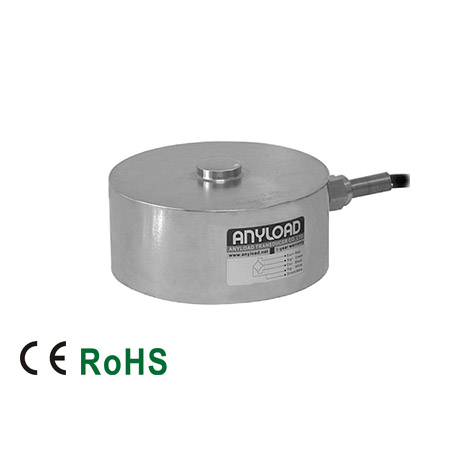

266AS Compression Load Cell
$0.00
- Material: Stainless Steel
- Rated Capacities: 100kg to 30t
- Full Scale Output: 2mV/V ± 1%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: Welded Sead/IP68
- CE and RoHS certified
Download product PDF
Specifications
Rated Capacity |
100kg, 200kg, 250kg, 500kg, 1t, 2t, 5t, 10t, 20t, 30t |
Full Scale Output |
2mV/V ± 1% |
Zero Balance |
± 0.04mV/V |
Non-linearity |
Cap. 2t: <±0.2%; Cap.≥5t: <±0.05% |
Repeatability |
Cap. 2t: <±0.03%; Cap.≥5t: <±0.03% |
Hysteresis Error |
Cap. 2t: <±0.1%; Cap.≥5t: <±0.05% |
Creep in 30 minutes |
Cap. 2t: <±0.1%; Cap.≥5t: <±0.05% |
Input Resistance |
Cap. 2t: 400Ω±20; Cap.≥5t: 770Ω±30 |
Output Resistance |
Cap. 2t: 350Ω±3; Cap.≥5t: 700Ω±5 |
Recommended Excitation |
10V (15V Maximum) |
Insulation Resistance |
>2[50V DC] Ω |
Compensated Temperature Range |
-10oC to 50oC / 14oF to 122oF |
Safe Overload |
150% of full scale |
Breaking Overload |
300% of full scale |
Seal Type |
Welded Seal |
IP Rating |
IP68 |
