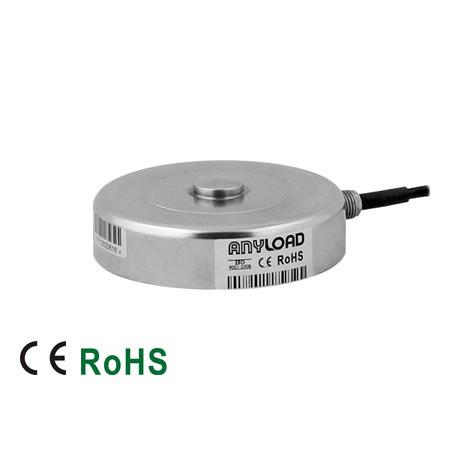

266ASPT Compression Load Cell
$0.00
- Material: Stainless steel
- Rated Capacities: 100kg, 250kg, 500kg, 1t, 2.5t, 5t, 10t, 25t, 50t
- Full Scale Output: 2.0mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- Mounting hardware not included
Download product PDF
Features
PT Global……………………………………………………… LPX
Specifications
| Rated Capacity |
100kg, 250kg, 500kg, 1t, 2.5t, 5t, 10t, 25t, 50t |
| Full Scale Output |
2.0mV/V ± 1% |
| Zero Balance |
± 0.04mV/V |
| Non-linearity |
< ± 0.050% |
| Repeatability |
< ± 0.030% |
| Hysteresis Error |
< ± 0.070% |
| Creep in 30 minutes |
< ± 0.050% |
| Input Resistance |
415Ω ± 15Ω |
| Output Resistance |
350Ω ± 3Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.0046% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.0160% of Cn/k |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Service Temperature Range |
-30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Welded seal |
| IP Rating |
IP68 |
