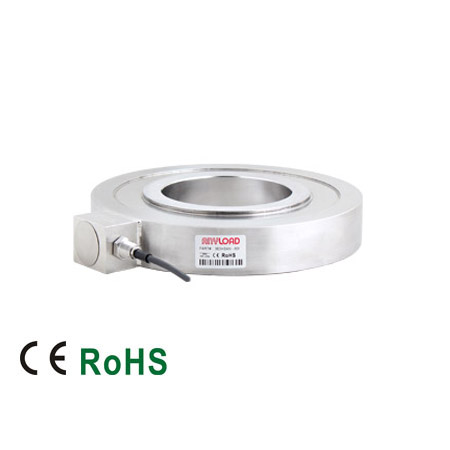

363HHAN Compression Load Cell

$0.00

363HHAN Compression Load Cell is a specially designed alloy steel compression load cell that suits to any compression and force measurement applications:

  • Material: Alloy steel
  • Rated Capacity: 60t
  • Full Scale Output: 2mV/V ± 1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • CE and RoHS certified
Download product PDF
Categories: ,

Features

Stainless steel element: 363HSAN

Specifications

Rated Capacity 60t
Full Scale Output 2.0mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ±0.8%
Repeatability < ±0.03%
Hysteresis Error < ±0.9%
Creep in 30 minutes < ±0.1%
Input Resistance 770Ω ± 30Ω
Output Resistance 700Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Compensated Temperature Range –10°C to 50°C/14°F to 122°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP67
