363TSM1 $ 0.00

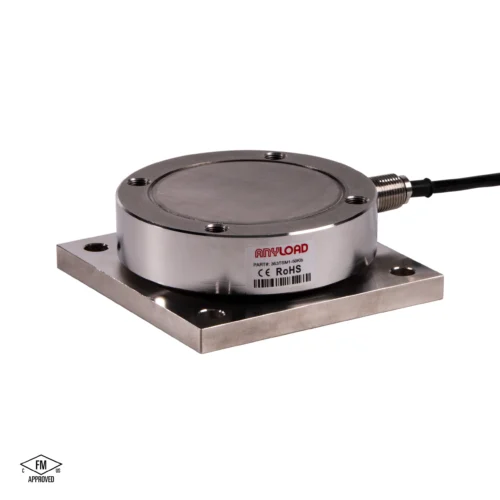

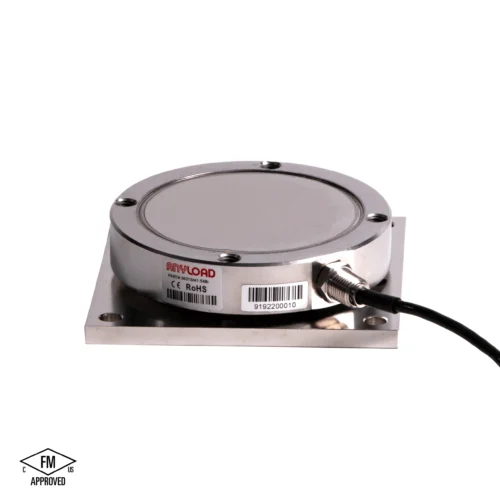

The 363TSM1 ThinWeigh™ leads the industry as an integrated compression weigh module that is high performance and ultra-low-profile, ideally suited for tank, hopper, vessel weighing, and more. Our patented internal design significantly improves accuracy and repeatability compared to the traditional pancake/low-profile weigh module design while also improving performance under variable loading conditions and temperature fluctuations. The ThinWeigh™ is a superior alternative to conventional weigh modules.
Download product PDF
Features
Features:
High Capacity Ultra Low Profile Mount, ideally suited for tank, hopper and vessel weighing
17-4 PH Stainless Steel, Hermetically Sealed construction to IP68/IP69K
Incorporated Rocker Pin allowing for 360º Vessel Thermal Expansion
Rocker Pin Allows up to 3º of Tilt of Vessel Leg from Base Plate
Side load and Uplift Protection up to 50% of Rated Capacity
Intergrated threaded top holes, eliminating need for separate top plate to maintain compact assembly
Available option: Alloy Steel material ( Model Name: 363THM1 for 100Klb and 200Klb only )
Specifications
ated Capacities
500kg/1Klb, 1.2t/2.5Klb, 2.5t/5Klb, 5t/10Klb, 12t/25Klb, 25t/50Klb, 50t/100Klb, 100t/200Klb
Full Scale Output
3mV/V ± 0.25%
Zero Balance
Cap.≤ 1.2t/2.5Klb: ≤ ±0.04 mV/V; Cap.≥ 2.5t/5Klb: ≤ ±0.02 mV/V
Non-linearity
Cap.<1.2t/2.5Klb: < ± 0.05%; Cap.=2.5t-12t/5Klb-25Klb: < ± 0.1% or < ± 0.3%; Cap.=25t/50Klb: < ± 0.3%
Repeatability
< ± 0.05%
Hysteresis Error
Cap.<1.2t/2.5Klb: < ± 0.05%; Cap.=2.5t-12t/5Klb-25Klb: < ± 0.1% or < ± 0.3%; Cap.=25t/50Klb: < ± 0.3%
Creep in 30 minutes
< ± 0.05%
Input Resistance
700Ω ± 10Ω
Output Resistance
700Ω ± 5Ω
Recommended Excitation
10V (15V Maximum)
Insulation Resistance
> 2GΩ (50V DC)
Compensated Temperature Range
– 10°C to 50°C/14°F to 122°F
Thermal Expansion / Contraction or Minor Misalignment
500kg-5t/1Klb-10Klb: 2mm; 12t-25t/25Klb-50Klb: 3mm
Safe Overload
150% of full scale
Breaking Overload
300% of full scale
Lift Protection
50% of full scale
Side Protection
50% of full scale
Seal Type
Welded seal
IP Rating
IP68/IP69K
