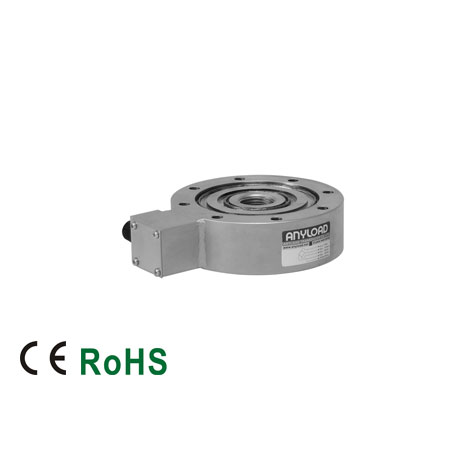

363YH Compression Load Cell
$0.00
- Material: Alloy steel
- Rated Capacities: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t
- Full Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE and RoHS certified
Download product PDF
Specifications
Rated Capacities |
1t, 2t, 3t, 5t |
10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t |
Full Scale Output |
2mV/V ± 1% |
Non-linearity |
< ± 0.050% |
< ± 0.30% |
Repeatability |
< ± 0.030% |
< ± 0.20% |
Hysteresis Error |
< ± 0.050% |
< ± 0.30% |
Creep in 30 minutes |
< ± 0.050% |
< ± 0.10% |
Input Resistance |
770Ω ± 30Ω |
Output Resistance |
700Ω ± 5Ω |
Rated Excitation |
10V (15V Maximum) |
Insulation Resistance |
> 2GΩ (50V DC) |
Temperature Effect on Sensitivity |
< ±0.0023% of Cn/k |
Temperature Effect on Zero Balance |
< ± 0.0120% of Cn/k |
Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
Service Temperature Range |
-30°C to 70°C/-20°F to 160°F |
Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
Safe Overload |
150% of full scale |
Breaking Overload |
300% of full scale |
