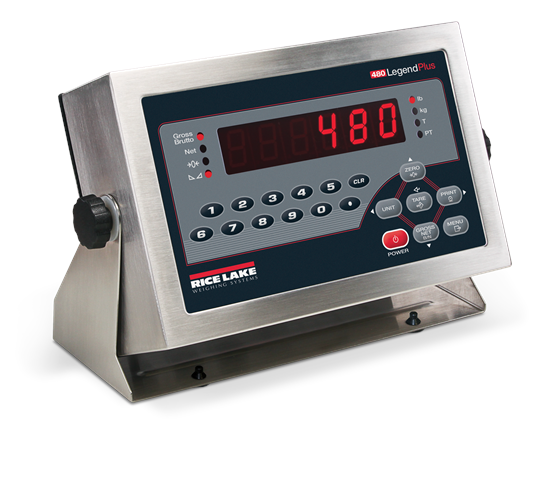

480/482 Legend? Series Digital Weight Indicator

$0.00

Legend Series digital weight indicators are designed for dirty, wet environments and demanding workplaces with rugged NEMA Type 4X/IP66 stainless steel washdown enclosures.

Download product PDF
Category:

Features

  • LED display, 0.8 in (20 mm), six-digit, seven-segment
  • Time and date, battery backed
  • Local/remote operation
  • Numeric keypad (480/482 Plus)
  • Keyed entries for setpoint values (480/482 Plus)
  • Two independent serial ports, RS-232 and 20 mA
  • NEMA Type 4X/IP66 stainless steel washdown enclosure
  • Programmable ticket formats for gross, net, accumulator and setpoints
  • Five continuous stream formats
  • Adapter filter or rolling average filter
  • Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
  • Eight setpoints, sequenced batch engine
  • Configurable with Revolution software

Specifications

Power:
Line voltages: 100-240 VAC
Frequency: 50-60 Hz
DC voltages: n/a
Power Consumption: 8 W

Excitation Voltage:
5 VDC, 8 x 350? or 16 x 700?load cells
Analog Signal Input Range:
?7 mV/V

Analog Signal Sensitivity:
0.1 uV/graduation minimum
0.5 uV/graduation recommended

A/D Sample Rate:
5, 10, 20, 40 Hz, software selectable

Resolution:
Internal: 523,000 counts
Display: 100,000 graduations

System Linearity / PI Rating:
Within 0.01% of full scale

Digital I/O:
Optional 2 or 4 inputs

4 or 8 dry-contact relays
?Communication Ports:
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex,?continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400
baud seven or eight data bits, even, odd or no parity

(Optional) Analog Output:
16-bit resolution, voltage output 0-10 VDC, current output 0-20 mA / 4-20 mA

(Optional) Relay Board:
Two opto-isolated, 5 to 24 VDC, active high inputs.
Two inputs (requires relay output option). Primary
keys, pseudo functions, batching functions.
(4) 30 VDC, 2 amp dry-contract relays

(Optional) Ethernet and USB Board:
USB five-pin header for PC, printer or flash drive.
Ethernet TCP/IP, RJ45 jack, server and client ports.

Display:
LED display, 0.8 in (20 mm), six-digit, seven-segment

Status Annunciators:
Gross, net, center of zero, stand still, lb, kg, tare, preset tare

Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel

Temperature Range:
Certified: 14?F to 104?F (-10?C to 40?C)
Operating: 14?F to 122?F (-10?C to 50?C)

Weight:
6.4 lb (2.9 kg)

Rating/Material:
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel

Warranty:
Two-year limited warranty

EMC Immunity:
EN 50082 Part 2 IEC EN 61000-4-2, 3, 4, 5, 6, 8, and 11

Approvals:
Measurement Canada AM-5892, Accuracy Class III/IIIHD, 10,000d
NTEP CC 12-123, Accuracy Class III/IIIL, 10,000d
OIML R76/2006-NL1-12.48, EU Test Certificate TC8322
EU Test Certificate TC8322
CE Marked
UL/cUL Listed

Options

77925 LIT,CDRevolution III Revolution Software, Indicator Manuals
83564 Overlay,Clear Protective Window with Adhesive Edge, Package of Five Each, IQ+355, 320IS, 420, CW90
119201 LIT,Manual 480 Technical 480 Legend Series Technical Manual
131340 Bracket,Mounting Assy for Option Modules in 480 Indicator
131341 Ind OPT, Analog Output 480, 0-10VDC, 4-20Ma
131342 Ind OPT, Relay 480 2 Digital Inputs, 4 Dry contact relays
151099 Panel,Mount Option 480 Indicator,Gasketed Non-NEMA Seal.
164650 Ind Opt,Battery Kit For 480/ 482. Includes Battery, Holder, Charger Board, Cable
165124 LIT,Manual 482 Technical 482 Legend Series Technical Manual
151100 Ind Opt,A/D Sealing Kit Cover for A/D on 480 Indicator
165379 Cable,480 Flash Update Connects into J14 via RS232.
164600 Ind OPT,480 USB/Ethernet USB and Ethernet TCP/IP Kit.
164604 Ind OPT,Ethernet Cable with Cord Grip, RJ45 Connector, 6 foot Length
164602 Ind OPT,480 USB Cable with Cord Grip, Type A Female Connector, 6 inch (20cm) Length
167707 Ind OPT,480 USB Cable with Cord Grip, Type A Male Connector, 200 CM Length
167708 Ind OPT,480 USB Cable with Cord Grip, Type B Male Connector, 200 CM Length
