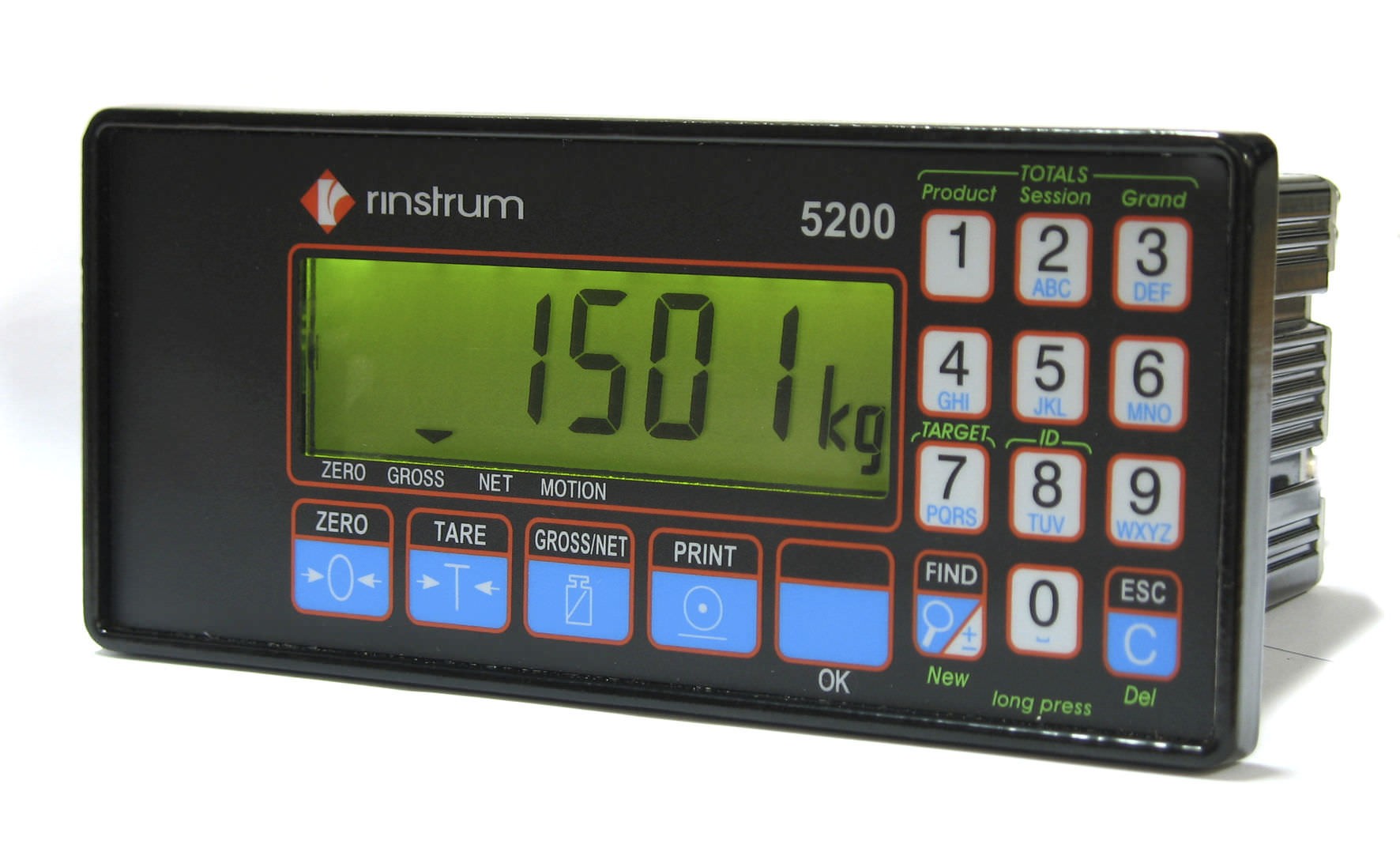

5200 General Purpose Controller with Check Weigh Functions

$0.00

The updated approval NMI S418 for the internal AC version of the 5000 series indicator has been finalised and is available in the NMI downloads.  Both the AC and the DC version are in stock in our Brisbane office.

The 5200 is a general purpose controller that is ideal for check weighing and counting applications.  A dual serial port is provided standard.  Input/output, analogue and setpoint cards are available as an option depending on the installation requirements. The 5200 is trade approved in Australia and Europe.

  • 99 Products – preset tare, setpoint targets and counting sample information can be stored for each product along with product totals
  • Check weighing – 5 grading bands (4 setpoint check weights)
  • Statistical reporting on product grading
  • Totalising, Counting and Grading
  • Programmable function key
Relay Output Module DIN Rail Mount
  • Four (4) voltage free relay outputs
  • Outputs are independent and isolated
  • Rated to 250VAC and 8A
  • Normally open (N/O) and normally closed (N/C) contacts
  • 12 or 24VDC versions
  • Easy fault finding with LED indication
Download product PDF
Category:

Features

  • 12 x 350 ohm
  • 6,000d @ 0.5V/d
  • 99 Product tracking
  • Checkweighing
  • Configurable printing
  • Parts Counting
  • Totalising of weights
