Home / Weigh Modules / Anyload / 535ASM2
535ASM2 $ 0.00

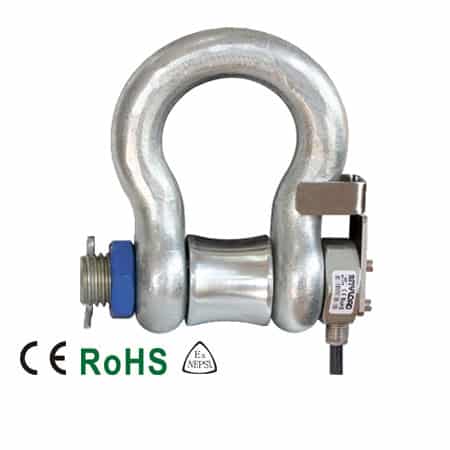

Committed to load cell innovation, Anyload’s shackle load cells can be integrated directly and easily into existing workflows with little disruption, providing a time-saving and simple weighing solution. The stainless steel IP67 waterproof construction provides heavy-duty reliability for rugged and harsh environments.
Download product PDF
Features
Material: Load cell: Stainless steel ( 2Cr13 or 17-4PH stainless steel ); Shackle: Alloy steel.
Capacities: 5t, 10t, 15t, 20t, 30t, 50t, 100t
CE, RoHS, and Ex certified load cells
Load pin and shackle integration
Bobbin design provides high accuracy and repeatability
High tensile shackle meets ISO2415-2004 requirements
Bridge Impedance: 350 Ohms
Full Scale Output: 2.5mV/V ± 0.25%
Non-linearity: ≤ 1% of full scale
Repeatability: ≤ 0.5% of full scale
Hysteresis Error: ≤ 1% of full scale
Test Load: 2 times of the rated capacity
Total Error: 1% of full scale
Seal Type/IP Rating: Environmentally Sealed/IP67
Specifications
Rated Capacity
5t, 10t, 15t, 20t, 30t, 50t, 100t
Full Scale Output
2.5mV/V ± 0.25%
Non-linearity
< 1% of full scale
Repeatability
< 0.5%
Hysteresis Error
< 1% of full scale
Bridge Impedance
350Ω
Test load
200% of the rated capacity
Total Error
1% of full scale
Seal Type/IP Rating
Environmentally Sealed/IP67
