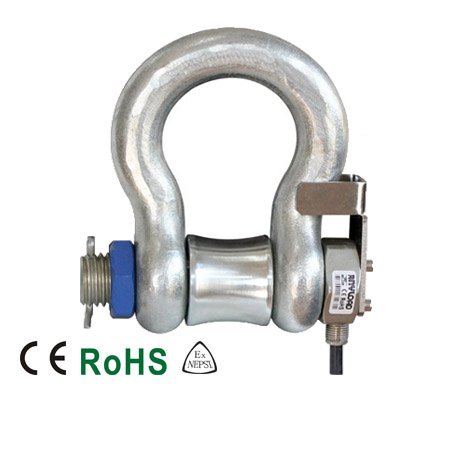

535ASM2 Shackle Load Cell

$0.00

  • Material: Stainless steel ( 2Cr13 or 17-4PH stainless steel )
  • Capacities: 5t, 10t, 15t, 20t, 30t, 50t, 100t
  • CE , RoHS and Ex certified load cells
  • Load pin and shackle integration
  • Bobbin design provides high accuracy and repeatability
  • High tensile shackle meets ISO2415-2004 requirements
  • Bridge Impedance: 350 Ohms
  • Full Scale Output: 2.5mV/V ± 0.25%
  • Non-linearity: ≤ 1% of full scale
  • Repeatability: ≤ 0.5% of full scale
  • Hysteresis Error: ≤ 1% of full scale
  • Test Load: 2 times of the rated capacity
  • Total Error: 1% of full scale
  • Seal Type/IP Rating: Environmentally Sealed/IP67
Download product PDF
Categories: ,

Specifications

Rated Capacity 5t, 10t, 15t, 20t, 30t, 50t, 100t
Full Scale Output 2.5mV/V ± 0.25%
Non-linearity < 1% of full scale
Repeatability < 0.5%
Hysteresis Error < 1% of full scale
Bridge Impedance 350Ω
Test load 200% of the rated capacity
Total Error 1% of full scale
Seal Type/IP Rating Environmentally Sealed/IP67
