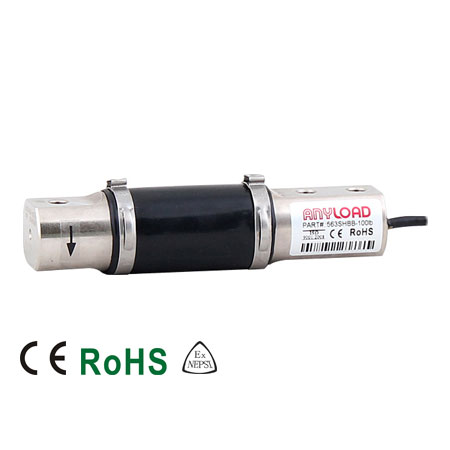

563SHBB Single Ended Beam Load Cell
$0.00
- Material: Alloy steel
- Rated Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 1Klb, 2.5Klb
- Full Scale Output: 2.0mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP65
- CE, RoHS and Ex certified
- Measurement Ukraine certified
Download product PDF
Specifications
| Rated Capacity |
50lb, 100lb, 200lb, 250lb, 500lb, 1Klb, 2.5Klb |
| Full Scale Output |
2.0mV/V ± 0.25% |
| Zero Balance |
± 0.02mV/V |
| Combine Error |
0.03% of full scale |
| Non-linearity |
< ± 0.030% |
| Repeatability |
< ± 0.020% |
| Hysteresis Error |
< ± 0.030% |
| Creep in 30 minutes |
< ± 0.030% |
| Input Resistance |
CAP.≤1Klb: 700Ω ± 20Ω; CAP.=2.5Klb: 350Ω ± 7Ω |
| Output Resistance |
CAP.≤1Klb: 700Ω ± 5Ω; CAP.=2.5Klb: 350Ω ± 3Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.0030% of Cn/k |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Service Temperature Range |
–18°C to 65°C/0°F to 149°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP65 |
