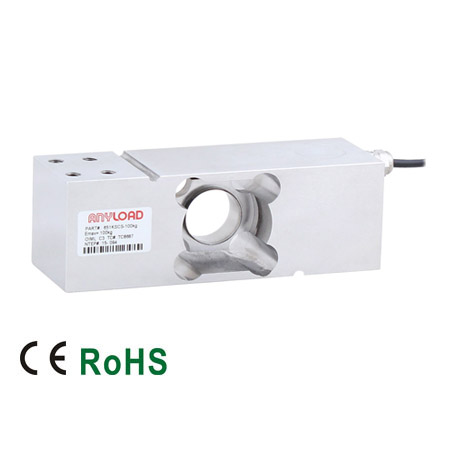

651KSCS Single Point Load Cell
$0.00
- Material: Stainless steel
- Rated Capacities: 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- Seal Type/IP Rating: Welded Seal/IP68
Download product PDF
Specifications
| Rated Capacity |
60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t |
| Reference Max. Platform Size |
600mm x 700mm |
| Full Scale Output |
2mV/V ± 0.25% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.03% |
| Repeatability |
< ± 0.02% |
| Hysteresis Error |
< ± 0.02% |
| Creep in 30 minutes |
< ± 0.03% |
| Input Resistance |
385Ω ± 15Ω |
| Output Resistance |
350Ω ± 3Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Nominal Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Welded sealed |
| IP Rating |
IP68 |
