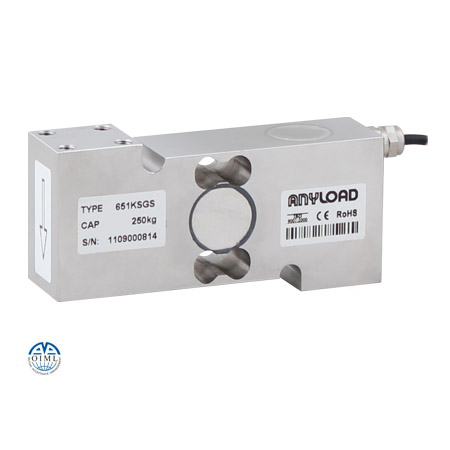

651KSGS Single Point Load Cell

$0.00

  • Material: Stainless steel
  • Rated Capacities: 100kg, 250kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
Download product PDF
Categories: ,

Features

INTERCHANGEABLE PRODUCTS

Flintec…………………………………………………………PC7*
Mettler-Toledo………………………………………………..SSH
Vishay Tedea-Huntleigh…………………………………..1510*
* H of Flintec PC7 & Tedea 1510 are of 73mm

Specifications

Rated Capacity 100kg, 250kg
Reference Max. Platform Size 600mm x 600mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.05%
Repeatability < ± 0.02%
Hysteresis Error < ± 0.05%
Creep in 30 minutes < ± 0.03%
Input Resistance 385Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range –10°C to 50°C/14°F to 122°F
Service Temperature Range –30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66
