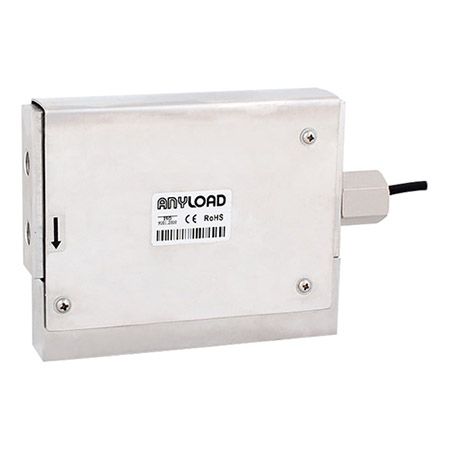

651PS Single Point Load Cell
$0.00
- Material: Stainless steel
- Rated Capacities: 50lb
- Full Scale Output: 2.000 – 2.002mV/V
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
Download product PDF
Specifications
| Rated Capacity |
50lb |
| Reference Max. Platform Size |
400mm x 400mm |
| Full Scale Output |
2.000 – 2.002mV/V |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.02% |
| Repeatability |
< ± 0.02% |
| Hysteresis Error |
< ± 0.02% |
| Creep in 30 minutes |
< ± 0.03% |
| Input Resistance |
450Ω ± 100Ω |
| Output Resistance |
350Ω ± 3Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2Ω (50V DC) G Ω |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally Sealed |
| IP Rating |
IP66 |
