6560, Portable with Handrail Wheel Chair Scale

$0.00

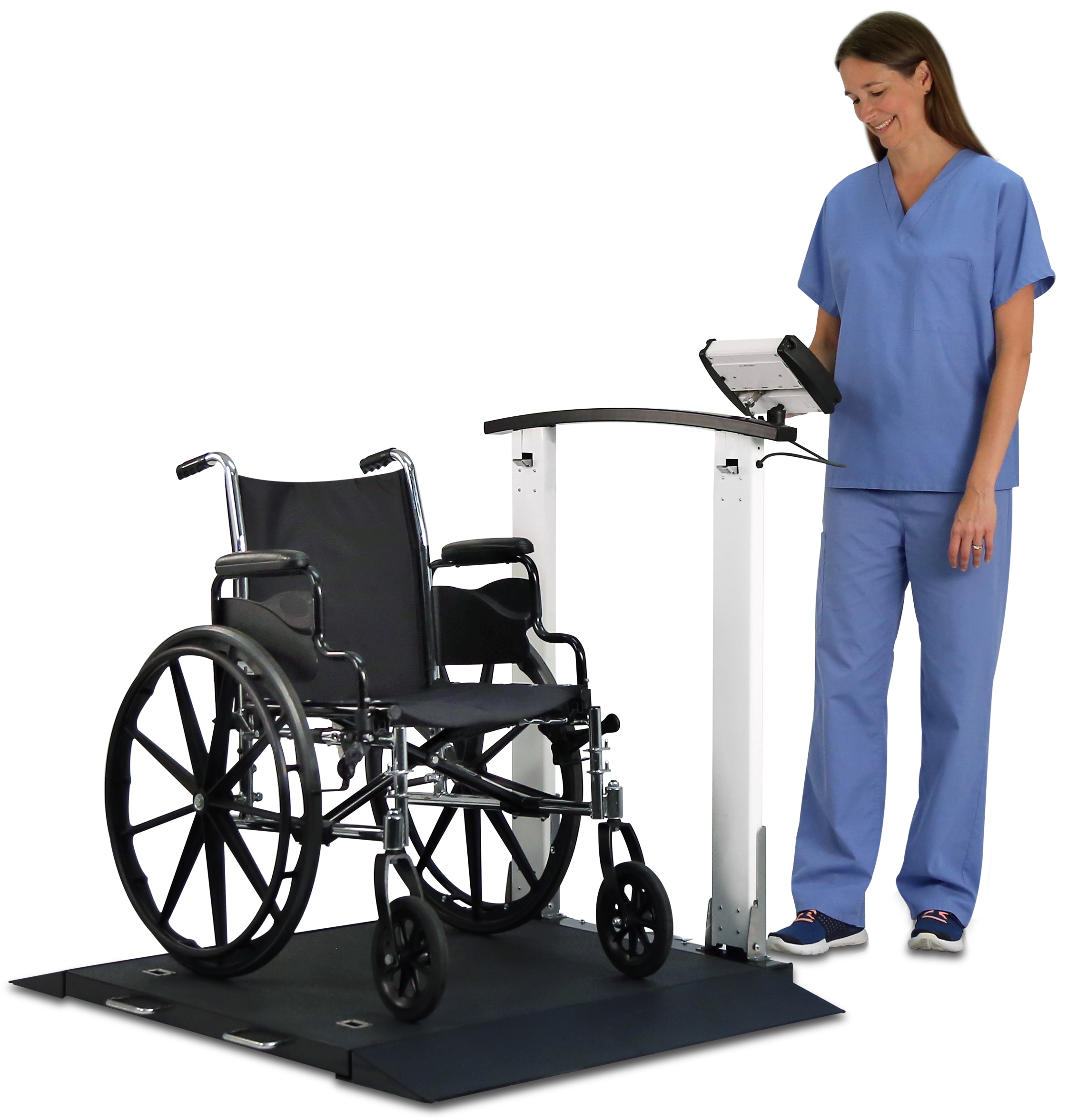

DETECTO?s 6560 is a multi-purpose clinical scale for wheelchair weighing and it also features an elegant, curved handrail that provides patient stability while weighing standing. By sliding the release levers, the columns easily fold down and lock for fast-and-easy transport and vertical storage. Enjoy the time-saving benefits of this scale by using the convenient pushbutton or keypad tare to remove the wheelchair weight. The scale features 1,000 lb / 450 kg capacity, optional Wi-Fi for EMR/EHR, two-way built-in ramps for accessibility from both sides, large 32 in x 36 in / 81 cm x 91 cm platform, clinical-grade accuracy to 0.2 lb / 0.1 kg, battery or AC power, and up to 99 tares (optional) to store wheelchair weights. The platform is only 2.2 inches/56 mm high for easy patient accessibility and comfort while weighing either standing or in a wheelchair. OIML EC class III approved model is available.

Download product PDF
Categories: ,

Features

  • 1000 lb/450 kg Capacity
  • 2-Way Easy Access Ramps
  • 6 C Batteries (Not Included)
  • BMI Calculation
  • Curved Handrail for Patient Stability
  • Easily-Collapsible Column with Quick Release Lever
  • EMR/EHR Ready
  • Integral Wheels Ease Transport
  • Low-Profile 2 inch/56 mm High Platform
  • OIML EC Class III Model Available
  • Ramps Rest On Floor for Easier Patient Access
  • Single-Pass Weighing with Keypad and Pushbutton Tare
  • Spacious 32 in x 36 in / 81 cm x 91 cm Platform

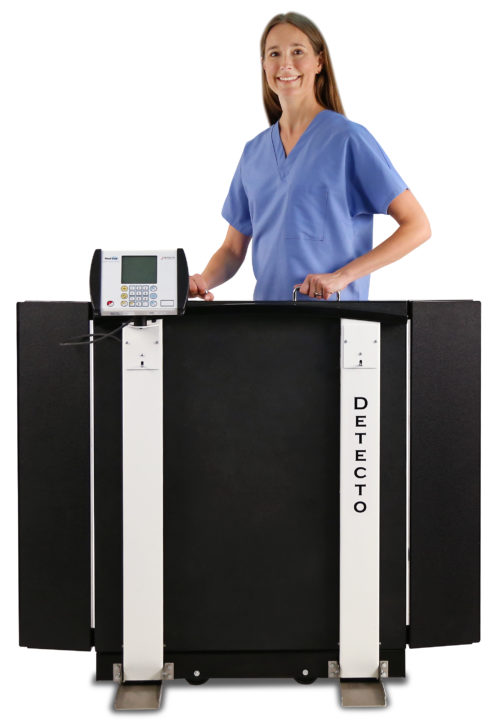

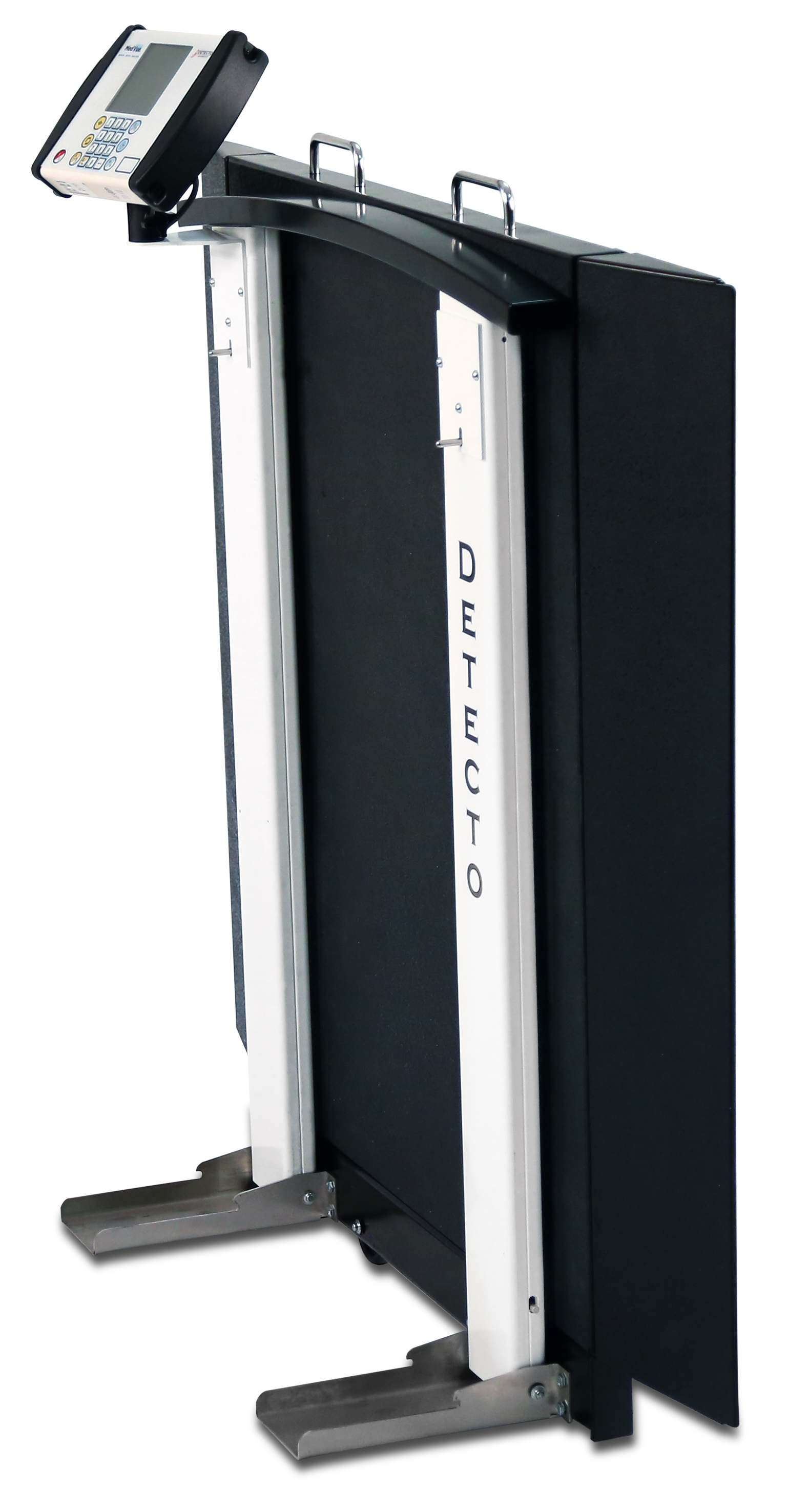

  • Vertical Mode for Transport and Storage
  • Wi-Fi and Ethernet Optional

Specifications

Capacity (6560): 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
Capacity (6560KGEU): 300 kg x 0.1 kg or 350 kg x 0.2 kg (OIML EC class III approved)
Platform Size: 32 in x 36 in x 2.2 in / 81 cm x 91 cm x 5.6 cm
Keypad: 19 key, color-coded, sealed membrane
Connectivity: RS232 serial, USB and optional wired and Wi-Fi Ethernet
LCD Display Dimensions: 3.5 in W x 3 in H / 89 mm W x 76 mm H backlit blue LCD
Power: Optional model MV1PWR AC adapter or 6 C batteries (not included)
Resolution: 5,000 divisions, max.
Operating Temperature: 14? to 104?F (-10? to 40?C)
Ramp Size: 36 in (91.4 cm) W x 7.9 in (20.2 cm) L each
Display: 5 digit, 7 segment, 7/8 inch (22.23 mm) high LCD weight digits
Country of Origin: USA
Includes: Scale includes 2-way ramps, integral wheels, curved handrail columns, weight indicator and guide handles
Optional: Wi-Fi for EMR/EHR, Welch Allyn connectivity, and AC adapter
UPC Code: (6560): 809161302202
UPC Code (6560KGEU): 809161304503
Net Weight: 116 lb / 53 kg
Shipping Weight: 126 lb / 57 kg

Options

MV1PWR Medical Grade Power Supply With US Plug

Models

6560 Wheelchair Scale, Portable, Digital, Folding Column, 1000 lb x .2 lb / 450 kg x .1 kg
